Left End Unit - Automatic Systems FirstLane 960 Technical Manual

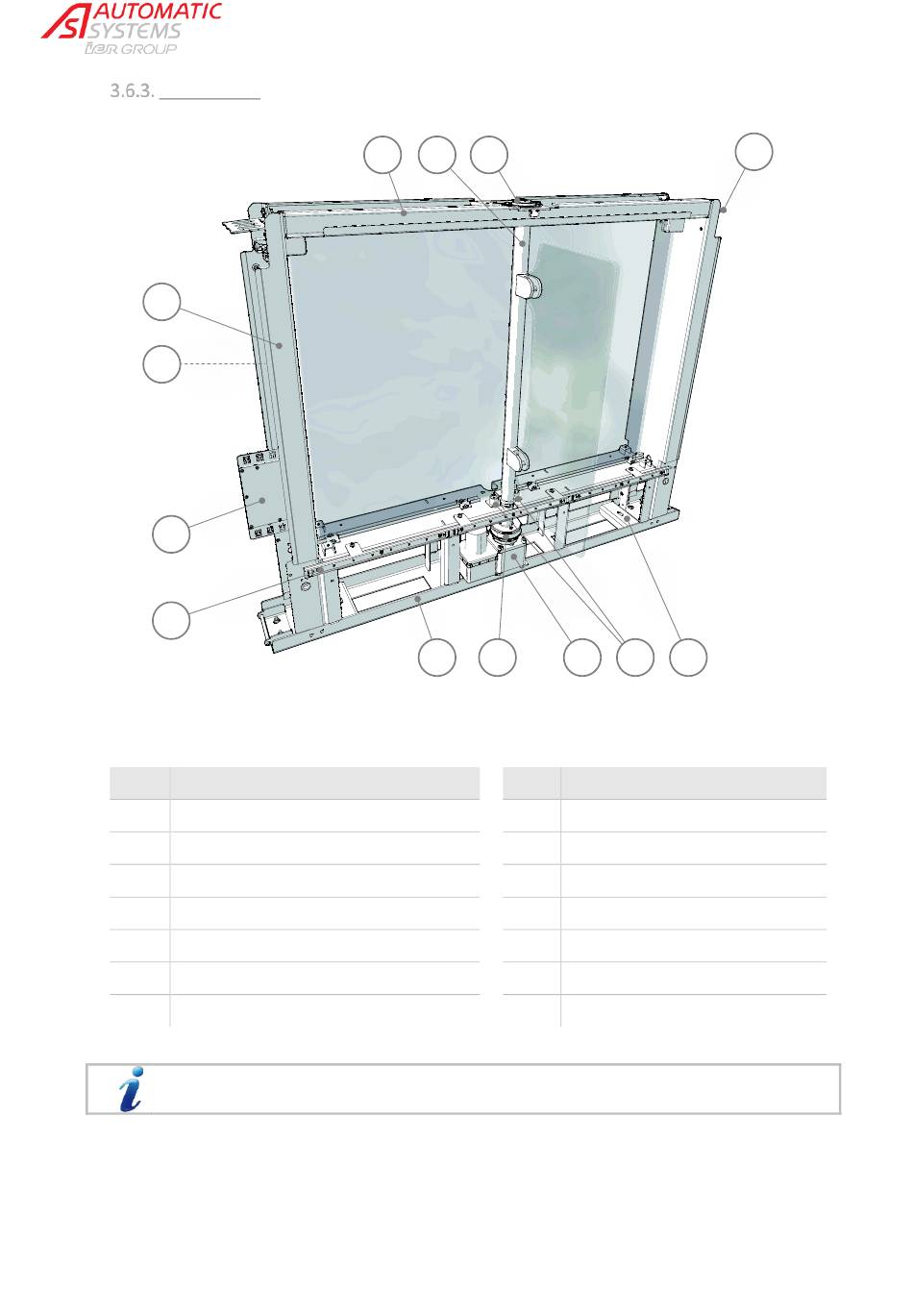

Left end unit

12
27
17
24
Ref.: Designation:
11 Base frame
12 Frame upright
13 Frame top rail
14 Bracket
17 Motor control circuit board AS 1613
19 Geared motor
20 End stops
The 24 VDC 14 A power supply delivers the power needed for operation of a complete
lane.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the
use of the products or the execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement.
Document subject to change without notice.
FirstLane
-MT-EN
13 21
11
(2x)
(4x)
14
25 19
Ref.: Designation:
21 Motion transmission shaft
22 Fixing clamp
24 DIRAS detection cell
25 Brake
(Available as option for ASC)
26 Reader support
(2x)
27 Identification label
