- Page 1 PCE-PH 28L Pocket pH Meter Instruction Manual...
-
Page 2: Installing The Batteries
Thank you for selecting the PCE-PH 28L pocket pH meter. This manual provides a step-by-step guide to help you operate the meter, please carefully read the following instructions before use. Installing the Batteries • Twist the electrode collar counter clockwise, pull the electrode away from the meter. - Page 3 Keypad The meter has a succinct membrane keypad, names and symbols describe each function key controls. INDEX: FUNCTION • Switches the meter ON/OFF. MEAS/HOLD • Locks the measured value, press the key again to resume measuring. • Exits the calibration or setting and returns to the measurement mode. •...
- Page 4 Prior to Use • Remove the electrode protective cap from the meter. • If the glass sensitive membrane on the electrode dries out, soak the electrode in 3M KCL solution for at least 15 minutes. Glass Sensitive Membrane Preparing the pH Buffer Solutions •...
-
Page 5: Setup Menu
Setup Menu PCE-PH 28L pocket pH meter contains an integrated setup menu that is used to customize the displayed option to meet measurement requirements. MENU DESCRIPTION OPTIONS DEFAULT Set the pH buffer group for calibration and auto- USA (pH4.01/7.00/10.01) recognition. -
Page 6: Single Point Calibration
Calibration PCE-PH 28L pocket pH meter allows up to 3 points calibration. We recommend that you perform at least 2 points calibration for high accuracy measurement. The meter will automatically recognize and calibrate to following standard buffer values. USA Standard Buffers pH4.01, 7.00, 10.01... - Page 7 2 points calibration Make sure that you have selected 2 points calibration in the setup menu. Repeat the steps 1.2 to 1.4 above. When the first calibration point is completed, the display will show CAL2. The meter prompts you to continue with second point calibration.
- Page 8 Rinse the electrode with distilled water. Place the electrode into the pH4.01 buffer solution. Stir the electrode gently. Enter Press the key, the meter begins the calibration. Wait for the reading to stabilize, the display automatically shows the electrode slope and pH10.01/CAL3 (or pH9.18/CAL3). Rinse the electrode with distilled water.
-
Page 9: Temperature Calibration
Temperature Calibration During the measurement process, if the temperature reading displayed differs from that of an accurate thermometer, the meter needs to be calibrated. Press and hold the key for 3 seconds to enter the setup menu. Enter Press the key until the meter shows °C/CAL or °F/CAL. -
Page 10: Electrode Care And Maintenance
• Record the measured value when the reading is stable. Auto-Hold PCE-PH 28L pocket pH meter contains an Auto-Hold function. If enabled, the meter will automatically sense a stable reading and lock the Hold measurements. The icon appears on the display. If disabled, press the key, the meter will immediately lock the displayed value. -
Page 11: Troubleshooting
Electrode Selection Guide PCE-PH 28L pocket pH meter installed with a long-reach pH electrode that is used to measure the pH of the small volume samples. If this electrode can not meet your measurement requirements, please refer to the table below to select an applicable sensor. - Page 12 Warranty You can read our warranty terms in our General Business Terms which you can find here: https://www.pce-instruments.com/english/terms. Disposal For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste.

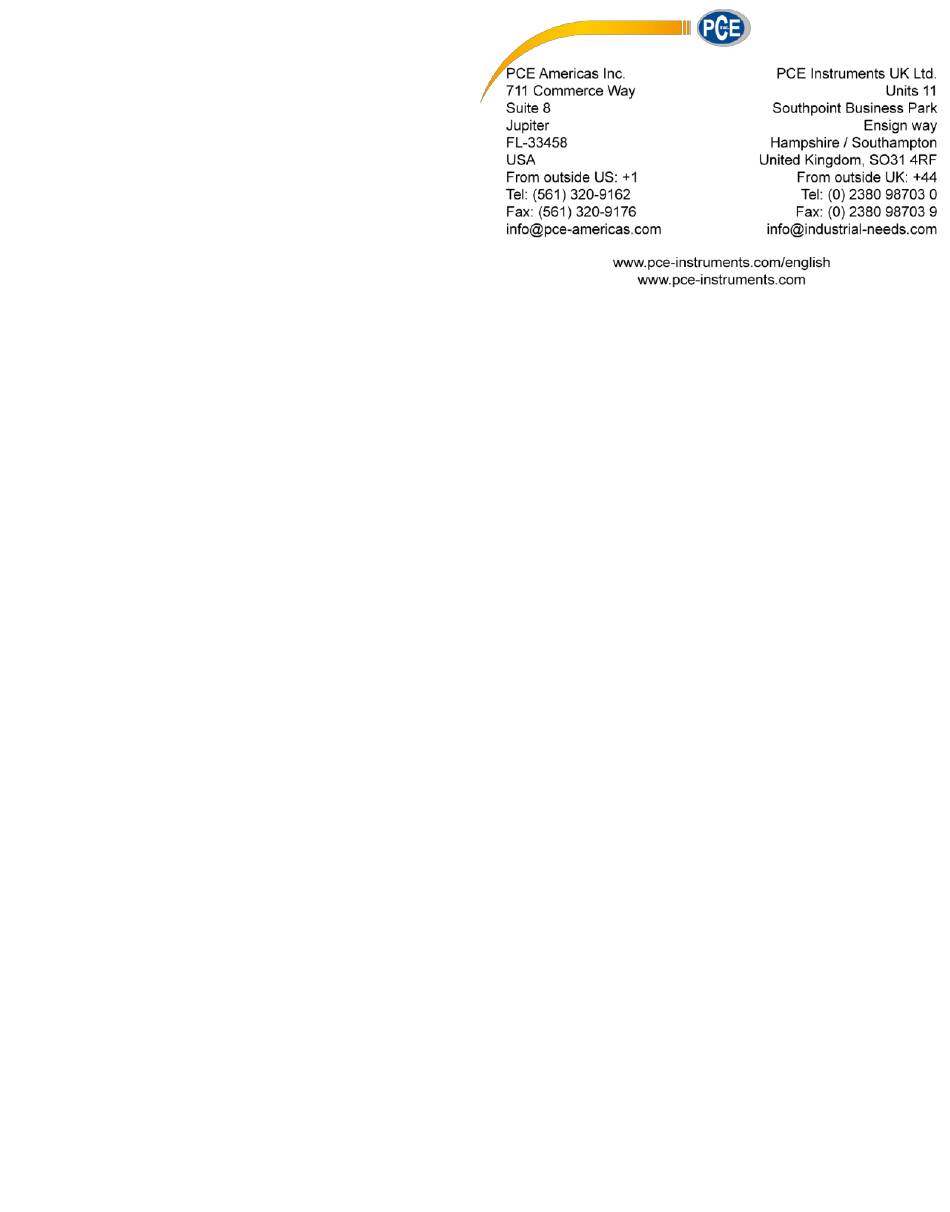

- Page 13 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
