Power Connection

Use the correct power cord depending on the power outlet to be used.
Connect the AC inlet of the projector to the power outlet firmly by the power cord.
CAUTION • Be carful in handling the power
cord according to instructions of the
accompanying manual "SAFETY INSTRUCTIONS"
and this manual.
• Connect the power cord firmly. Avoid using a
loose, unsound outlet failed or contact.

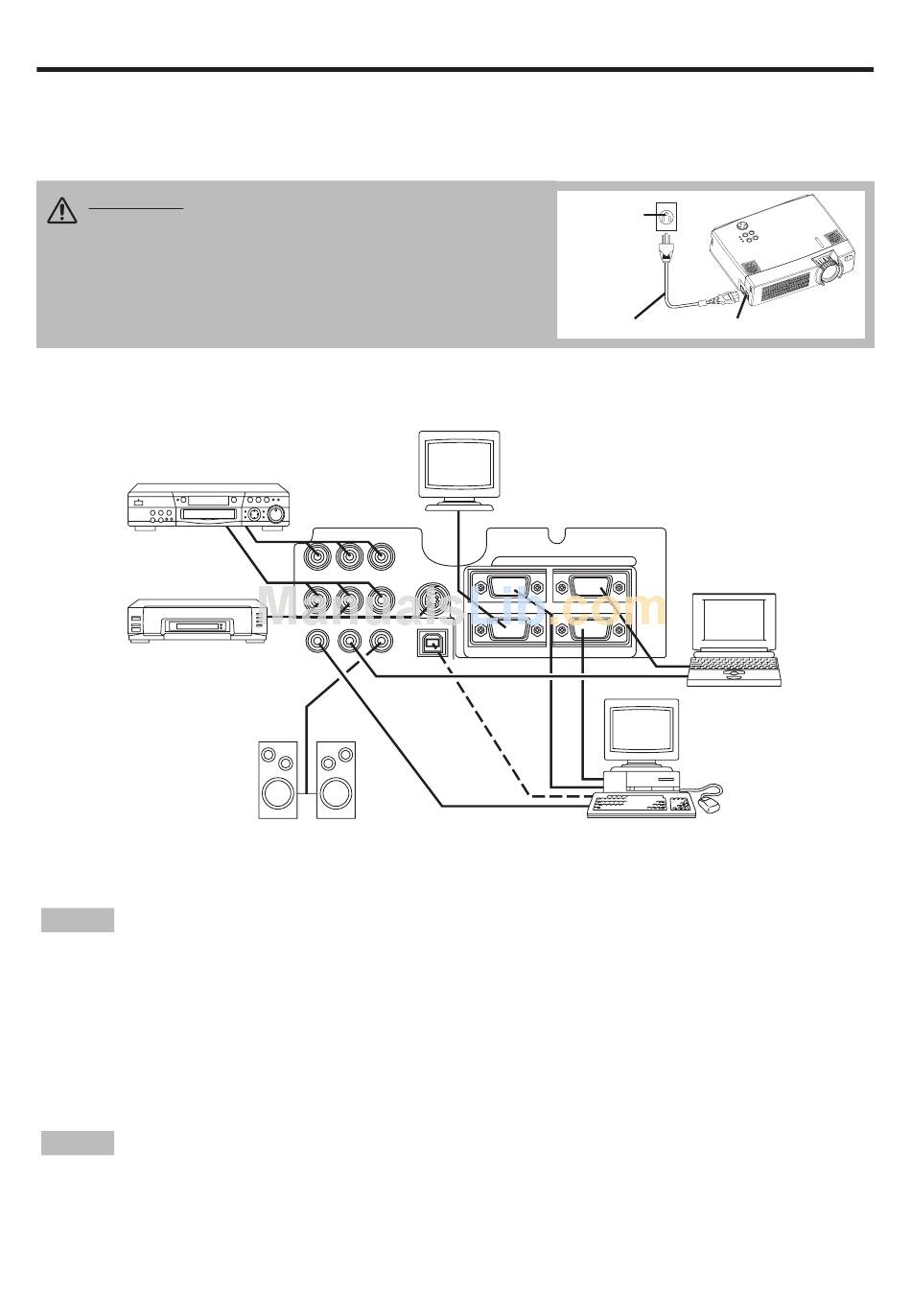

Example of System Setup

DVD Player
S-Video Tape
Recorder
NOTE
• When connecting with a notebook computer, set the proper RGB external image output
(setting CRT display or simultaneous display of LCD and CRT). Please read instruction manual of
the notebook for more information.
Plug & Play
This projector is VESA DDC 1/2B compatible. Plug & play is possible by connecting to a computer
that is VESA DDC (Display Data Channel) compatible.
Please use this function by connecting the accessory RGB cable with RGB IN 1 terminal (DDC
1/2B compatible). Plug & play may not operate by other connections.
NOTE
• Plug & play is a system configured with peripheral equipment including a computer,
display and an operating system.
• This projector is recognized as a plug & play monitor. Use the standard display drivers.
• Plug & play may not operate by the computer to connect. Use the RGB IN 2 terminal if plug &
play does not operate correctly.
ENGLISH-8
L L
A A
T T
I I
O O
N N
L L
A A
T T
I I
O O
N N
COMPONENT VIDEO
AUDIO IN
VIDEO IN S-VIDEO IN
AUDIO
1
2
AUDIO OUT
IN
Speaker with
amplifier
( (
c c
o o
n n
t t
i i
n n
( (
c c
o o
n n
t t
i i
n n
Power
Power Cord
Display
Monitor
1
2
RGB IN
USB
RGB OUT
CONTROL
Computer
(desktop type)
u u
e e
d d
) )
u u
e e
d d
) )
outlet
AC Inlet
Computer
(notebook type)
