Multimedia LCD Projector
CP-630i
USER'S MANUAL
Please read this user's manual thoroughly to ensure correct usage of this projector.
BEDIENUNGSANLEITUNG
Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung
aufmerksam.
MANUEL D'UTILISATION
Nous vous recommandons de lire attentivement ce menuel pour bien assimiler le
fonctionnement de l'appareil.
MANUAL D'ISTRUZIONI
Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter
comprendere quanto riportato ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el
producto.
GEBRUIKSAANWIJZNG
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te
hebben van de uitgebreide mogelijkheden.
BRUKERHÅNDBOK
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO
Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do
usuário.
TECHNICAL
REGULATORY NOTICES
Advertisement
Table of Contents
Related Manuals for BOXLIGHT CP-630i
Summary of Contents for BOXLIGHT CP-630i
-
Page 1: Regulatory Notices

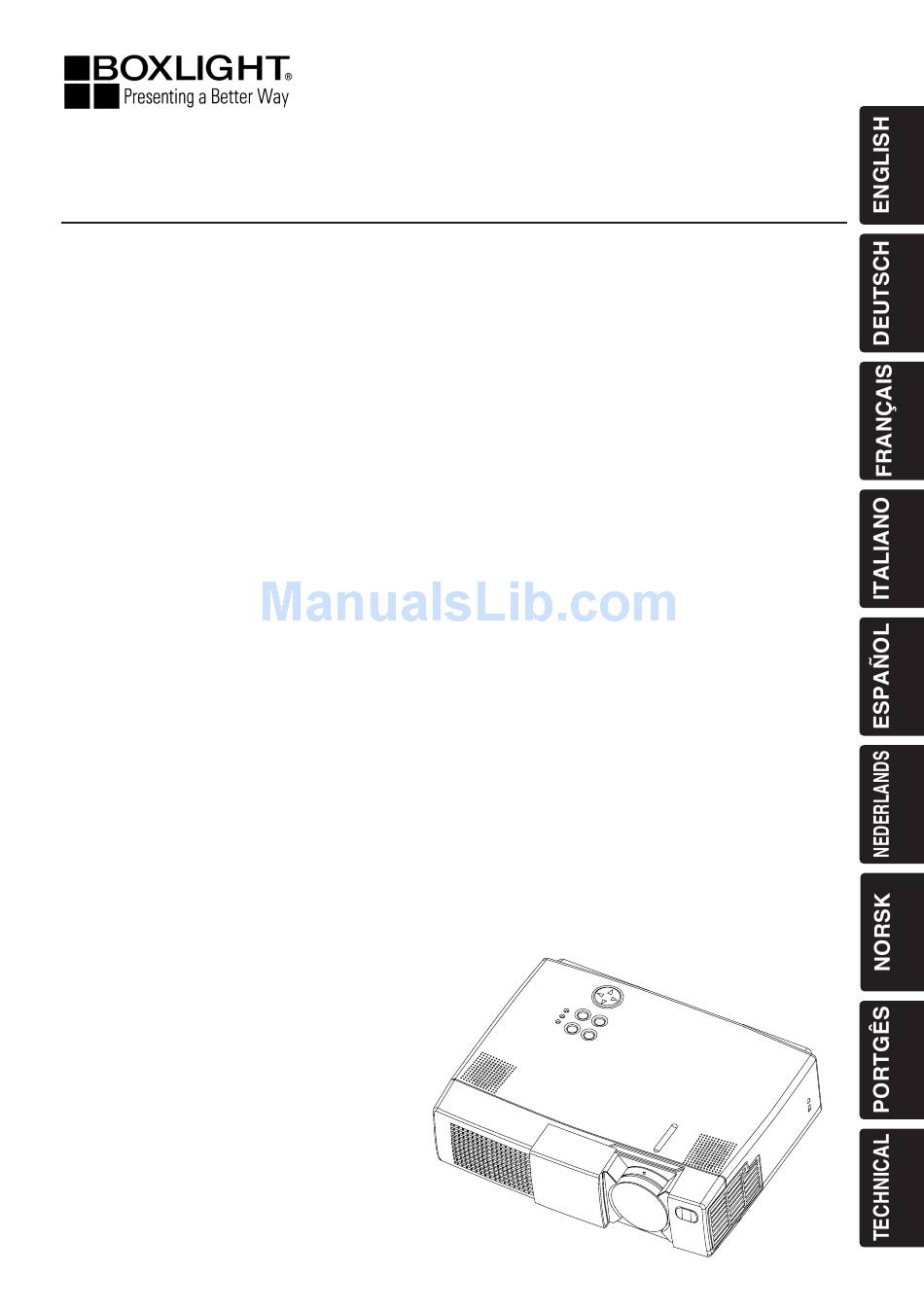

Multimedia LCD Projector CP-630i USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage of this projector. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce menuel pour bien assimiler le fonctionnement de l'appareil. -
Page 2: Table Of Contents
Multimedia LCD Projector USER'S MANUAL NOTE: TRADEMARK ACKNOWLEDGMENT: CONTENTS FEATURES ........P.2 TROUBLESHOOTING....P.20 OSD Message........P.20 BEFORE USE ........P.2 Indicators Message ......P.21 Contents of Package......P.2 Symptom Chart .........P.22 Part Names .........P.3 SPECIFICATIONS .......P.23 Installing the Batteries......P.5 Attaching the Projector Handle ...P.5 WARRANTY ........P.24 INSTALLATION ......P.6 Installation of the projector and Screen..P.6 Angle Adjustment ........P.6... -
Page 3: Features
FEATURES • Outstanding brightness • Partial magnification function • Distortion correction function BEFORE USE Contents of package NOTE Power Cord Power Cord US Type Europe Type Projector Liquid Crystal Projector 0000000000000 USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. -
Page 4: Part Names
B B E E F F O O R R E E U U S S E E ( ( c c o o n n t t i i n n u u e e d d ) ) Part Names Speaker Zoom Knob... - Page 5 B B E E F F O O R R E E U U S S E E ( ( c c o o n n t t i i n n u u e e d d ) ) Part Names (continued) VIDEO Button VIDEO...
-
Page 6: Installing The Batteries
B B E E F F O O R R E E U U S S E E ( ( c c o o n n t t i i n n u u e e d d ) ) Installing the Batteries CAUTION First Loading:... -
Page 7: Installation
INSTALLATION Installation of the Projector and Screen Table 1. Installation Reference a (inches / meters) TOP VIEW Screen size (inches / meters) Min. Max. 40 / 1.0 65 / 1.65 78 / 1.98 60 / 1.5 98 / 2.5 117 / 2.97 80 / 2.0 131 / 3.3 157 / 3.99... -
Page 8: Cabling
I I N N S S T T A A L L L L A A T T I I O O N N ( ( c c o o n n t t i i n n u u e e d d ) ) Cabling RGB signal input: Audio signal input (from computer) :... -
Page 9: Power Connection
I I N N S S T T A A L L L L A A T T I I O O N N ( ( c c o o n n t t i i n n u u e e d d ) ) Power Connection WARNING Power outlet... -
Page 10: Operations
OPERATIONS Switching the Power Supply ON/OFF Switching Power ON STANDBY/ON Button POWER Indicator STANDBY/ STANDBY/ON VIDEO ON Button MENU SELECT MENU RESET POSITION Zoom Knob MAGNIFY FREEZE VOLUME Focus Ring MUTE AUTO TIMER BLANK Power Switch Sliding Lens Door Switching Power OFF WARNING NOTE: ENGLISH-9... -
Page 11: Basic Operation
O O P P E E R R A A T T I I O O N N S S ( ( c c o o n n t t i i n n u u e e d d ) ) Basic Operation NOTE: Table 2 . - Page 12 O O P P E E R R A A T T I I O O N N S S ( ( c c o o n n t t i i n n u u e e d d ) ) Table 2.
-
Page 13: Setup Menu
O O P P E E R R A A T T I I O O N N S S ( ( c c o o n n t t i i n n u u e e d d ) ) Setup Menu SETUP INPUT... -
Page 14: Input Menu
O O P P E E R R A A T T I I O O N N S S ( ( c c o o n n t t i i n n u u e e d d ) ) Input Menu SETUP INPUT... -
Page 15: Image Menu
O O P P E E R R A A T T I I O O N N S S ( ( c c o o n n t t i i n n u u e e d d ) ) Image Menu SETUP INPUT... -
Page 16: Options Menu
O O P P E E R R A A T T I I O O N N S S ( ( c c o o n n t t i i n n u u e e d d ) ) Options Menu SETUP INPUT... -
Page 17: No Signal Menu
O O P P E E R R A A T T I I O O N N S S ( ( c c o o n n t t i i n n u u e e d d ) ) No Signal Menu VOLUME KEYSTONE... -
Page 18: Maintenance
MAINTENANCE Lamp HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE WARNING Lamp Reflector Front glasss Lamp Life NOTE: ENGLISH-17 ENGLISH-17... -
Page 19: Replacing The Lamp
M M A A I I N N T T E E N N A A N N C C E E ( ( c c o o n n t t i i n n u u e e d d ) ) Replacing the Lamp CAUTION Resetting the Lamp Timer... -
Page 20: Air Filter Maintenance
M M A A I I N N T T E E N N A A N N C C E E ( ( c c o o n n t t i i n n u u e e d d ) ) Air Filter Maintenance CAUTION Other Maintenance... -
Page 21: Troubleshooting
TROUBLESHOOTING OSD Message Table 8. OSD Messages Message Contents The message shown at left appears after the lamp has been used for more than 1700 hours. CHANGE THE LAMP The lamp is approaching the end of its life. AFTER REPLACING LAMP, Power is switched OFF automatically when the lamp RESET THE LAMP TIME. -
Page 22: Indicators Message
Switch power OFF, and wait for 45 minutes until the Turns off equipment cools. Check fitting of the lamp and lamp cover, and switch power ON again. Contact BOXLIGHT if the same problem occurs again. The cooling fan is not operating. -
Page 23: Symptom Chart
T T R R O O U U B B L L E E S S H H O O O O T T I I N N G G ( ( c c o o n n t t i i n n u u e e d d ) ) Symptom Chart Table 10. -
Page 24: Specifications
SPECIFICATIONS NOTE Table 11. Specifications Item Specification Product name BOXLIGHT CP-630i Panel size 2.3 cm (0.9 type) Liquid crystal Drive system TFT active matrix panel Pixels 480,000 pixels (800 horizontal x 600 vertical) Lens Zoom lens F=1.7 ~ 2.0 f=37.5 ~ 45.1 mm... -
Page 25: Warranty
WARRANTY LIMITED WARRANTY WARRANTY LIMITATION AND EXCLUSION DISCLAIMER OR UNSTATED WARRANTIES LIMITATION OF LIABILITY Boxlight 19332 Powder Hill Place Poulsbo, WA 98370-7407-USA www.boxlight.com U.S. and Canada 800-762-5757 International 360-779-7901 ENGLISH-24 ENGLISH-24... - Page 26 *QR50401* Printed in Japan...
