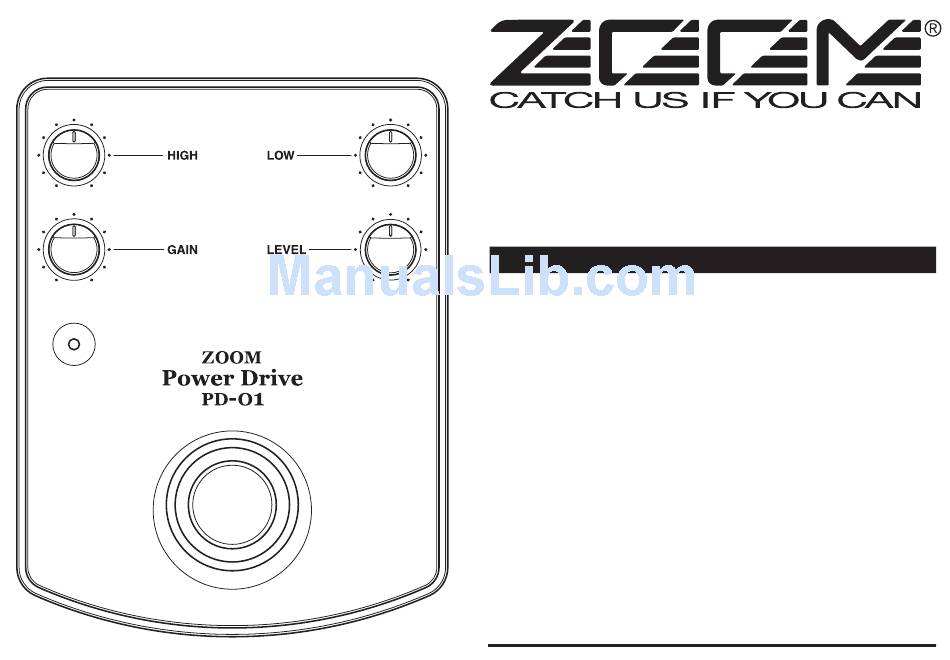

ZOOM Power Drive PD-01
Operation Manual
I N D E X
Features--------------------------------------------------------------------------------------------------------------------------------2
Parts and Functions------------------------------------------------------------------------------------------------------4
Connections----------------------------------------------------------------------------------------------------------------------6
Sound Samples--------------------------------------------------------------------------------------------------------------8
PD-01 and Compact Effects---------------------------------------------------------------------------------10
PD-01 and Multi-Effects-------------------------------------------------------------------------------------------11
Troubleshooting------------------------------------------------------------------------------------------------------------12
Specifications-----------------------------------------------------------------------------------------------------------------14
Usage Precautions------------------------------------------------------------------------------------------------------15
Safety Precautions-------------------------------------------------------------------------------------------------------16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Drive PD-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Zoom Power Drive PD-01

Summary of Contents for Zoom Power Drive PD-01

  • Page 1: Table Of Contents

    ZOOM Power Drive PD-01 Operation Manual I N D E X Features--------------------------------------------------------------------------------------------------------------------------------2 Parts and Functions------------------------------------------------------------------------------------------------------4 Connections----------------------------------------------------------------------------------------------------------------------6 Sound Samples--------------------------------------------------------------------------------------------------------------8 PD-01 and Compact Effects---------------------------------------------------------------------------------10 PD-01 and Multi-Effects-------------------------------------------------------------------------------------------11 Troubleshooting------------------------------------------------------------------------------------------------------------12 Specifications-----------------------------------------------------------------------------------------------------------------14 Usage Precautions------------------------------------------------------------------------------------------------------15 Safety Precautions-------------------------------------------------------------------------------------------------------16...

  • Page 2: Features

    Use as full-fledged booster With the GAIN control set to zero, the PD-01 gives superb clean sound. The output stage can deliver up to 20 Vp-p, which drive the amplifier to overdrive with fat, full-bodied sound. Mechanical switch for on/off and true bypass On/off switching is performed using a mechanical foot switch.
  • Page 3 HIGH/LOW equalizer provides versatility The PD-01 features separate HIGH and LOW controls. This gives you more flexibility in creating your own sound with options, ranging from a mild drive tone to a sharp, bright distortions. Sturdy metal chassis The rock-solid case made of aluminum not only looks good, it also can withstand the rigors of use on stage. It's low profile provides excellent stability.

  • Page 4: Parts And Functions

    Parts and Functions This section explains the various parts of the PD-01. ZOOM Power Drive PD-01...
  • Page 5 When powering the unit from the AC adapter, insert the plug from the adapter into this jack. Be sure to use only an AC adapter rated for 9 V DC, center negative, 300 mA (Zoom AD-0006). When the AC adapter is connected, the PD-01 will always be ON, regardless of whether a cable is plugged into the IN jack.

  • Page 6: Connections

    Make sure that the plug is inserted fully into the OUT jack of the guitar. Plug cable from guitar into IN jack of PD-01 Insert the cable from the guitar into the IN jack of the PD-01. This turns the PD-01 on.
  • Page 7 Connect cable to OUT jack of PD-01 Connect another cable to the OUT jack of the PD-01. Make sure that the plug is inserted firmly. Connect output cable to amplifier Plug the cable from the OUT jack of the PD- 01 to the IN jack of the amplifier.

  • Page 8: Sound Samples

    Sound Samples This section shows some actual setting examples and gives information on amplifier settings. ZOOM Power Drive PD-01 Standard overdrive sound Set the amplifier to clean sound without distortion. This will allow you to easily switch between clean sound and overdrive. In this example, the GAIN is set fairly high and the LOW range is given a boost, resulting in a mild, warm sound.
  • Page 9 Booster sample 1: clean & crunch This is a special way to use the PD-01. Set GAIN to zero and raise the level to get great booster performance. Set the amplifier to clean tone for backing, and then set the PD-01 to ON to obtain a natural crunch sound produced by the amplifier in conjunction with the PD-01.

  • Page 10: And Compact Effects

    PD-01 and Compact Effects This section shows how to use the PD-01 together with other compact effect devices. PD-01 SETTING : GAIN 5 HIGH 5 LOW 5 PD-01 SETTING : GAIN 10 HIGH 5 LOW 8 ZOOM Power Drive PD-01 With compressor &...

  • Page 11: And Multi-Effects

    PD-01 and Multi-Effects This section shows how to use the PD-01 together with multi-effect devices such as the GFX-4. Creating drive sound with PD-01 only When using a multi-effect device with the PD-01, the PD-01 should be connected before the other device.

  • Page 12: Troubleshooting

    Is the guitar or amplifier volume or the LEVEL control of the PD-01 turned down? Raise the volume. Are there any problems with other effect devices or with cables? Use a known good cable and connect the PD-01 directly to the amplifier.
  • Page 13 Battery gets used up very quickly. Power to the PD-01 gets turned on when a plug is inserted in the IN jack. In this condition, current is drawn from the battery regardless of whether the effect is switched on or off. When not using the unit, be sure to disconnect the plug from the IN jack.

  • Page 14: Specifications

    Controls Input Output Power requirements Battery life External Dimensions Weight Supplied accessories ZOOM Power Drive PD-01 Foot switch GAIN control LEVEL control HIGH control LOW control Standard monaural phone jack Rated input impedance: 470 kilohms Rated input level: -20 dBm...

  • Page 15: Usage Precautions

    Cleaning Use a soft, dry cloth to clean the PD-01. If necessary, slightly moisten the cloth. Do not use abrasive cleanser, wax, or solvents (such as paint thinner or cleaning alcohol), since these may dull the finish or damage the surface.

  • Page 16: Safety Precautions

    Disregarding instructions printed here incurs the risk of injury to persons and/or damage to peripheral equipment. Please observe the following safety tips and precautions to ensure hazard-free use of the PD-01. About power Using an AC adapter to power this unit is recommended. When powering the unit from a battery, an alkaline battery should be used.
