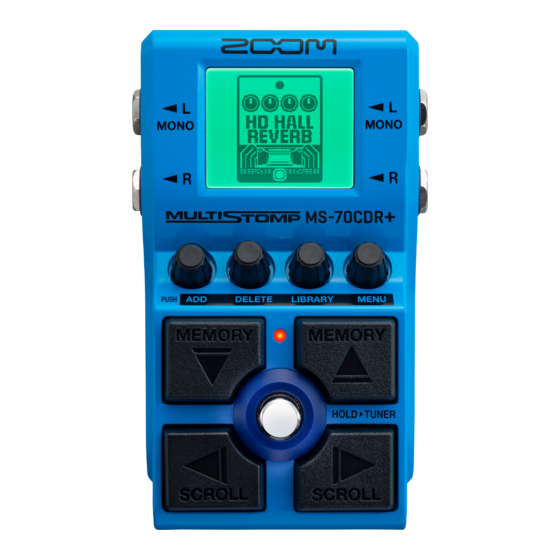

Zoom MS-70CDR+ Manual
  1. Manuals
  2. Brands
  3. Zoom Manuals
  4. Music Pedal
  5. MS-70CDR+
  6. Manual

Zoom MS-70CDR+ Manual

Multistomp effect types and parameters
Hide thumbs Also See for MS-70CDR+:
Table of Contents

Advertisement

Quick Links

Download this manual
Effect Types and Parameters
This document cannot be displayed properly on black-and-white displays.
© 2024 ZOOM CORPORATION
Manufacturer names and product names are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic
characteristics and do not indicate any affiliation with the ZOOM CORPORATION.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-70CDR+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zoom MS-70CDR+

Summary of Contents for Zoom MS-70CDR+

  • Page 1 This document cannot be displayed properly on black-and-white displays. © 2024 ZOOM CORPORATION Manufacturer names and product names are trademarks or registered trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with the ZOOM CORPORATION.

  • Page 2: Table Of Contents

    Effect explanation overview Tempo synchronization possible icon Effect type Effect explanation Parameter range DELAY This long delay has a maximum length of 4000 mS. TIME Sets the delay time. 1 - 4000 Short, Sets the delay time range. Long, MODE When metronome is chosen, the delay time is synchronized to the tempo.
  • Page 3 MODULATION CHORUS This effect moves the sound image cyclically left and right. DEPTH Sets the depth of the modulation. 0 - 100 RATE Sets the speed of the modulation. 1 - 50 TONE Adjusts the tone. 0 - 10 Adjusts the amount of effected sound that is mixed with the original sound. 0 - 100 Adjusts the volume.
  • Page 4 MODULATION CHORUS This chorus is a model of the BOSS CE-5. FIVE DEPTH Sets the depth of the modulation. 0 - 100 RATE Sets the speed of the modulation. 0 - 100 Sets output to mono or stereo. When stereo, effect sound is output from L channel and MONO, OUTPUT unchanged input sound is output from R channel.
  • Page 5 MODULATION SILKY This chorus effect combines 2 bands of detuning and chorus for precise control. CHORUS DEPTH Sets the depth of the modulation. 0 - 100 RATE Sets the speed of the modulation. 0 - 100 TONE Adjusts the tone. 0 - 100 CHO MIX Adjusts the amount of chorus in the mix.
  • Page 6 MODULATION This effect combines two tremolos. TREMOLO UP 0 - WAVE A Sets the modulation waveform of Wave A. TRI 9 UP 0 - WAVE B Sets the modulation waveform of Wave B. TRI 9 DEPTH A Adjusts depth of Wave A modulation. 0 - 100 DEPTH B Adjusts depth of Wave B modulation.
  • Page 7 MODULATION FLANGER This is a jet sound like an A/DA Flanger. PRE DLY Sets pre-delay time of effect sound. 0 - 50 DEPTH Sets the depth of the modulation. 0 - 100 RATE Sets the speed of the modulation. 0 - 50 RESO Adjusts the intensity of the modulation resonance.
  • Page 8 MODULATION DYNAMIC The volume of the effect sound changes according to the input signal level with this FLANGER dynamic flanger. SENSE Adjusts the sensitivity of the effect. -10 - 10 DEPTH Sets the depth of the modulation. 0 - 100 RATE Sets the speed of the modulation.
  • Page 9 MODULATION HARMONY This intelligent pitch shifter outputs the effect sound with the pitch shifted according to PITCH scale and key settings. SHIFTER -6 - 6 SCALE Sets the pitch of the pitch-shifted sound added to the original sound. ( See Table 1 ) Sets the tonic (root) of the scale used for pitch shifting.

  • Page 10: Repeat Adjusts The Number Of Repeats

    DELAY DELAY This long delay has a maximum length of 4000 mS. TIME Sets the delay time. 1 - 4000 Short, Sets the delay time range. Long, MODE When metronome is chosen, the delay time is synchronized to the tempo. REPEAT Adjusts the number of repeats.
  • Page 11 DELAY AC TAPE This tape echo sound has been tailored for acoustic instruments. ECHO TIME Set the delay time. 1 - 1000 Short, Sets the delay time range. Long, MODE When metronome is chosen, the delay time is synchronized to the tempo. REPEAT Adjusts the number of repeats.
  • Page 12 DELAY SMOOTH This wide delay is modeled on the BOSS DD-20 in SMOOTH mode. DELAY Sets the delay time. TIME 1 - 3000 When Sync is chosen, the delay time is synchronized to the tempo. Short, Sets the delay time range. When metronome is chosen, the delay time is synchronized to the Long, MODE tempo.

  • Page 13: Modulation

    DELAY PING PONG This delay outputs the delay sound alternately left and right. DELAY TIME Sets the delay time. 1 - 4000 Short, Sets the delay time range. Long, MODE When metronome is chosen, the delay time is synchronized to the tempo. REPEAT Adjusts the number of repeats.

  • Page 14: Delay

    DELAY FILTER DELAY This effect filters a delayed sound. TIME Sets the delay time. 1 - 2000 Short, Sets the delay time range. Long, MODE When metronome is chosen, the delay time is synchronized to the tempo. REPEAT Adjusts the number of repeats. 0 - 100 Adjusts the amount of effected sound that is mixed with the original sound.
  • Page 15 DELAY PITCH This effect applies pitch shift to a delayed sound. DELAY PITCH Sets volume of pitch shift applied to delayed sound. -12 - 12 TIME Sets the delay time. 1 - 2000 REPEAT Adjusts the number of repeats. 0 - 100 Adjusts the amount of effected sound that is mixed with the original sound.
  • Page 16 DELAY DRIVE ECHO This echo effect is inspired by Maestro Echoplex EP-1 and can add drive to the sound. TIME Sets the delay time. 20 - 1990 Short, Sets the delay time range. Long, MODE When metronome is chosen, the delay time is synchronized to the tempo. REPEAT Adjusts the number of repeats.
  • Page 17 DELAY DYNAMIC This dynamic delay adjusts the volume of the effect sound according to the input signal DELAY level. TIME Sets the delay time. 1 - 2000 Short, Sets the delay time range. Long, MODE When metronome is chosen, the delay time is synchronized to the tempo. REPEAT Adjusts the number of repeats.

  • Page 18: Reverb

    REVERB ROOM This reverb effect simulates the acoustics of a room. REVERB PRE DLY Adjusts the delay between input of the original sound and start of the reverb sound. 1 - 100 DECAY Sets the duration of the reverberations. 1 - 30 Adjusts the amount of effected sound that is mixed with the original sound.
  • Page 19 REVERB PLATE This simulates a plate reverb. REVERB PRE DLY Adjusts the delay between input of the original sound and start of the reverb sound. 1 - 200 DECAY Sets the duration of the reverberations. 0 - 100 COLOR Adjusts the reverb time of the low frequencies. 0 - 100 Adjusts the amount of effected sound that is mixed with the original sound.
  • Page 20 REVERB ARENA This reverb effect simulates the acoustics of a large enclosure such as a sports arena. REVERB PRE DLY Adjusts the delay between input of the original sound and start of the reverb sound. 1 - 100 DECAY Sets the duration of the reverberations. 1 - 30 TONE Adjusts the tone.
  • Page 21 REVERB SLAP BACK This reverb creates a repeating echo effect. REVERB DECAY Sets the duration of the reverberations. 1 - 30 TIME Sets the delay time. 1 - 1000 REPEAT Adjusts the number of repeats. 0 - 100 Adjusts the amount of effected sound that is mixed with the original sound. 0 - 100 D-R BAL Sets the ratio of delay and reverb.
  • Page 22 REVERB MODULATION This reverb generates fluctuating echoes. REVERB PRE DLY Adjusts the delay between input of the original sound and start of the reverb sound. 1 - 100 DECAY Adjusts the duration of the reverb. 1 - 30 TONE Adjusts the tone. 0 - 10 Adjusts the amount of effected sound that is mixed with the original sound.
  • Page 23 REVERB TREMOLO This effect combines tremolo with just the reverb sound like the Eventide Space REVERB TremoloVerb. PRE DLY Adjusts the delay between input of the original sound and start of the reverb sound. 0 - 500 DECAY Sets the duration of the reverberations. 0 - 100 SIZE Adjusts the size of the reverb space.
  • Page 24 REVERB MANGLED SPACE This reverb has wild echoes like the Eventide Space MangledVerb. REVERB PRE DLY Adjusts the delay between input of the original sound and start of the reverb sound. 0 - 500 DECAY Sets the duration of the reverberations. 0 - 100 SIZE Adjusts the size of the reverb space.

  • Page 25: Sfx

    AUTO PAN This effect moves the sound image cyclically left and right. RATE Sets the speed of the modulation. 0 - 50 WIDTH Sets the width of the panning. L50 - R50 Adjusts the amount of waveform clipping. Higher values emphasize the auto-panning effect CLIP 0 - 10 more.
  • Page 26 LINE Sound input into the LineSel effect is sent directly to the OUTPUT jacks when OFF and to SELECTOR the next effect in order when ON. ( See Table 2 ) EFX LVL Adjusts level sent to next effect. 0 - 150 OUT LVL Adjusts level sent directly to the outputs.

  • Page 27: Dynamics

    DYNAMICS COMPRESSOR This compressor in the style of the MXR Dyna Comp. SENSE Adjusts the sensitivity of the effect. 0 - 10 ATTCK Sets compressor attack speed to Fast or Slow. SLOW, FAST TONE Adjusts the tone. 0 - 10 Adjusts the volume.
  • Page 28 DYNAMICS ORANGE This models an ORANGE SQUEEZER. LIMITER Adjusts the volume. 0 - 100 ZOOM ZOOM's unique noise reduction cuts noise during pauses in playing without affecting the NOISE tone. REDUCTION GTRIN, DETCT Sets control signal detection level. EFXIN DEPTH Sets the depth of noise reduction.

  • Page 29: Filter

    FILTER AUTO WAH This effect varies wah in accordance with picking intensity. MODE Sets direction of movement of the filter. DOWN, UP SENSE Adjusts the sensitivity of the effect. 1 - 10 RESO Sets effect resonance. 0 - 10 Adjusts the volume. 0 - 100 RESONANCE This effect varies the resonance filter frequency according to picking intensity.
  • Page 30 FILTER LFO FILTER This filter effect changes tone characteristics cyclically. DEPTH Sets the depth of the modulation. 0 - 100 RATE Sets the speed of the modulation. 1 - 50 RESO Sets effect resonance. 0 - 10 SINE, TRI, WAVE Sets the modulation waveform.
  • Page 31 FILTER STEREO GUITAR This stereo graphic equalizer has 6 bands that suit guitar frequencies. GRAPHIC EQ 160HZ Boosts or cuts the low (160 Hz) frequency band. -12.0 - 12.0 400HZ Boosts or cuts the low (400 Hz) frequency band. -12.0 - 12.0 800HZ Boosts or cuts the low (800 Hz) frequency band.
  • Page 32 FILTER EXCITER This exciter enables flexible control. BASS Adjusts the amount of low-frequency phase correction. 0 - 100 TREBLE Adjusts the amount of high-frequency phase correction. 0 - 100 Adjusts the volume. 0 - 100 LATCH, ON/OFF Sets the foot switch function. UNLATCH BOTTOM UP This brings out low and high sounds.

  • Page 33: Additional Tables

    3rd up 3rd up 4th up Major 5th up 6th up Table 2 [ LINE SELECTOR Signal Flow ] LINE SELECTOR ON ( NEXT EFFECT ) OUTPUT INPUT LINE SELECTOR OUTPUT INPUT OFF ( OUTPUT ) ©2024 ZOOM CORPORATION Z2I-5211-01...
