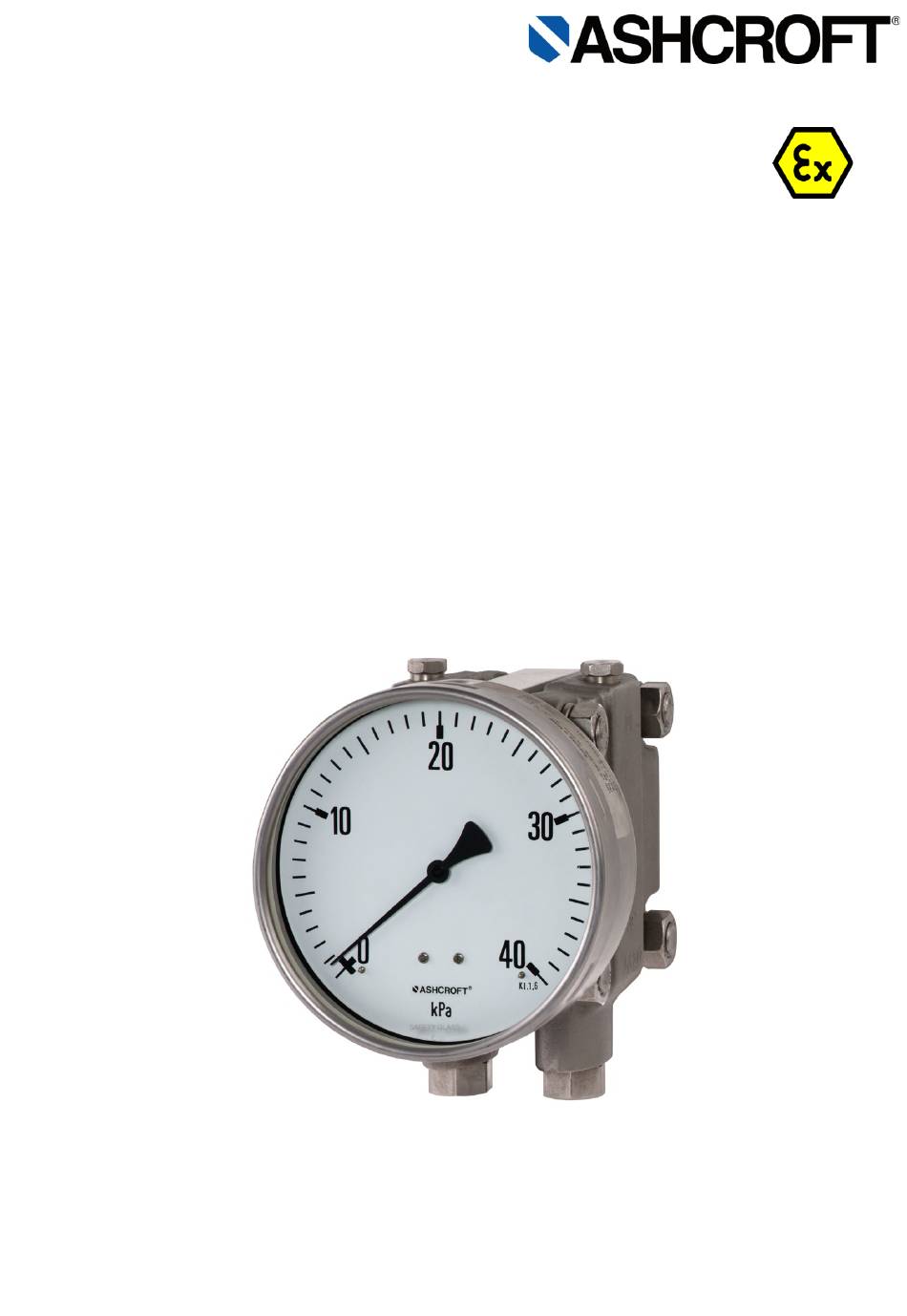

Installation and Maintenance
Instruction Manual

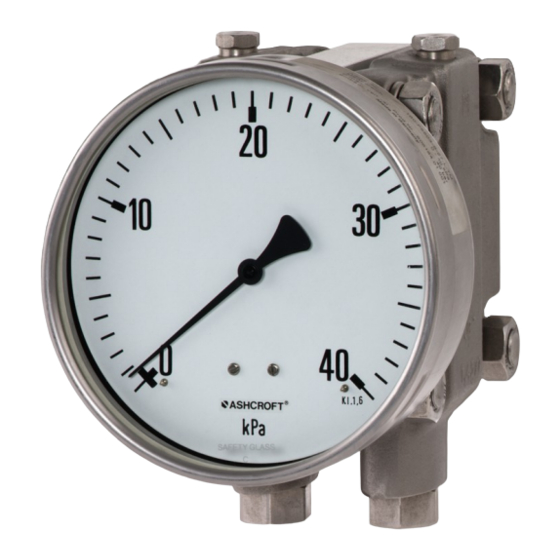

Differential pressure gauge, model F5503 and F5503-HP
for explosion risk areas pursuant to Directive 2014/34/EU (ATEX)
In the following configuration:
• ###F5503###ATEX differential pressure gauge without switching contact
• ###F5503###I####ATEX differential pressure gauge with inductive proximity switches
• ###F5503-HP###ATEX differential pressure gauge high static pressure without switching
contact
• ###F5503-HP###I####ATEX differential pressure gauge high static pressure with inductive
proximity switches
IM-F5503/F5503-HP/ATEX-EN-Rev D
P/N 095I104-02EN
10/2019
Page 1 of 29
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ashcroft F5503
Summary of Contents for Ashcroft F5503
- Page 1 In the following configuration: • ###F5503###ATEX differential pressure gauge without switching contact • ###F5503###I####ATEX differential pressure gauge with inductive proximity switches • ###F5503-HP###ATEX differential pressure gauge high static pressure without switching contact • ###F5503-HP###I####ATEX differential pressure gauge high static pressure with inductive...
-
Page 2: Table Of Contents
Use in explosion risk areas pursuant to Directive 2014/34/EU (ATEX) ..............6 F5503 and F5503-HP without switching contact ....................6 F5503 I#### and F5503-HP I#### with inductive proximity switches SJ2-N ............. 6 Technical data ................................7 Labeling on the device ..............................8 Labeling on the device for explosion risk areas (ATEX) .................. - Page 3 Appendix ................................14 12.1 Declaration of conformity model F5503 and F5503-HP ................14 12.2 Declaration of conformity model F5503 and F5503-HP with contacts ............16 12.3 EU design type test certification for inductive proximity switches of types SJ2-N ........18 12.4 Data sheet for differential pressure gauge F5503/F5503-HP ...............
-
Page 4: General Remarks
For the product described here, we offer a warranty pursuant to Section 6 Guarantee in Respect of Defects in our General Terms and Conditions of Delivery and Payment. 1.6 Manufacturer’s address, customer services Ashcroft Instruments GmbH Tel.: +49 (0) 2401/808-888 Fax.:... -
Page 5: Operator's Responsibility
2.3 Operator’s responsibility Safety instructions for proper operation of the device must be respected. They are to be provided by the operator for use by the respective personnel for installation, servicing, inspection and operation. Risks from electrical energy and from the released energy of the medium, from escaping media and from improper connection of the device must be eliminated. -
Page 6: Use In Explosion Risk Areas Pursuant To Directive 2014/34/Eu (Atex)
The documentation has been filed with TÜV-Nord-Cert NB 0044 (see declaration of conformity). Labeling: 3.2 F5503 I#### and F5503-HP I#### with inductive proximity switches SJ2-N Area of use: Explosion risk areas Zone 1 and 2, and 21 and 22, risk from gases and dry dust. -
Page 7: Technical Data
Warning! With gaseous media, the device temperature may increase due to compression heat. In such cases, the rate of the pressure change must be regulated or the permitted temperature of the measuring medium reduced. Note: For a change in differential pressure between 10 % and 90 % of the measuring range and a pulse frequency of <0.06 Hz, the temperature increase is <10 K. -
Page 8: Labeling On The Device
The label with the marking for explosion risk areas is located on the outside of the housing. Device without switching contacts: ###F5503####ATEX Device with integrated inductive proximity switch: ###F5503#### I####ATEX Device without switching contacts: ###F5503-HP####ATEX Device with integrated inductive proximity switch:... -
Page 9: Construction And Function
Thus both diaphragms are protected against excess deflection and risks of rupturing. The model F5503-HP is designed for higher static pressure than the F5503 with stronger pressure chambers and mounting parts. -
Page 10: Transport Inspection
7.2 Transport inspection The delivery must be checked for completeness and damage during transport. In the event of damage during transport, the delivery must not be accepted, or only accepted subject to reservation of the scope of the damage being recorded and, if necessary, a complaint initiated. -
Page 11: Starting Up
8.3.2 Electrical connection Take note of the electrical data in the EU design type test certification and the locally-applicable regulations and guidelines for installing and operating electrical plant in explosion risk areas (e.g. EN 60079-14, EN 60079-17 etc.). Connection to be undertaken by authorized and qualified specialist staff only. ... -
Page 12: Subsequent Relocation Of The Gauge (By The Customer)
8.4.2 Setting the switch point An adjustable lock is fitted in the front panel of the pressure gauge. Using the removable adjustment key, the contacts mounted on the target value indicators can be set to any point on the range covered by the scale. For reasons relating to accuracy of switching and the lifetime of mechanical measurement systems, the switch points should be positioned between 10% and 90% of the range. -
Page 13: Faults
10 Faults 10.1 Safety Defective or faulty pressure gauges put the operational safety and process safety of the plant at risk, and can lead to a risk or injury to persons, the environment or the plant. 10.2 Conduct in the event of faults All defective of faulty devices must be taken out of service. -
Page 14: Appendix
12 Appendix 12.1 Declaration of conformity model F5503 and F5503-HP Page 14 of 29... - Page 15 Page 15 of 29...
-
Page 16: Declaration Of Conformity Model F5503 And F5503-Hp With Contacts
12.2 Declaration of conformity model F5503 and F5503-HP with contacts Page 16 of 29... - Page 17 Page 17 of 29...
-
Page 18: Eu Design Type Test Certification For Inductive Proximity Switches Of Types Sj2-N
12.3 EU design type test certification for inductive proximity switches of types SJ2-N Page 18 of 29... - Page 19 Page 19 of 29...
- Page 20 Page 20 of 29...
- Page 21 Page 21 of 29...
- Page 22 Page 22 of 29...
- Page 23 Page 23 of 29...
- Page 24 Page 24 of 29...
- Page 25 Page 25 of 29...
- Page 26 Page 26 of 29...
- Page 27 Page 27 of 29...
- Page 28 Page 28 of 29...
-
Page 29: Data Sheet For Differential Pressure Gauge F5503/F5503-Hp
12.4 Data sheet for differential pressure gauge F5503/F5503-HP Detailed data sheet is available from supplier’s website (see 1.6 Manufacturer’s address, customer services) This Table refers to specific documents: Model Description Document F5503 Stainless steel differential pressure gauge model F5503 G1.F5503...
