Summary of Contents for Ashcroft F5510
-

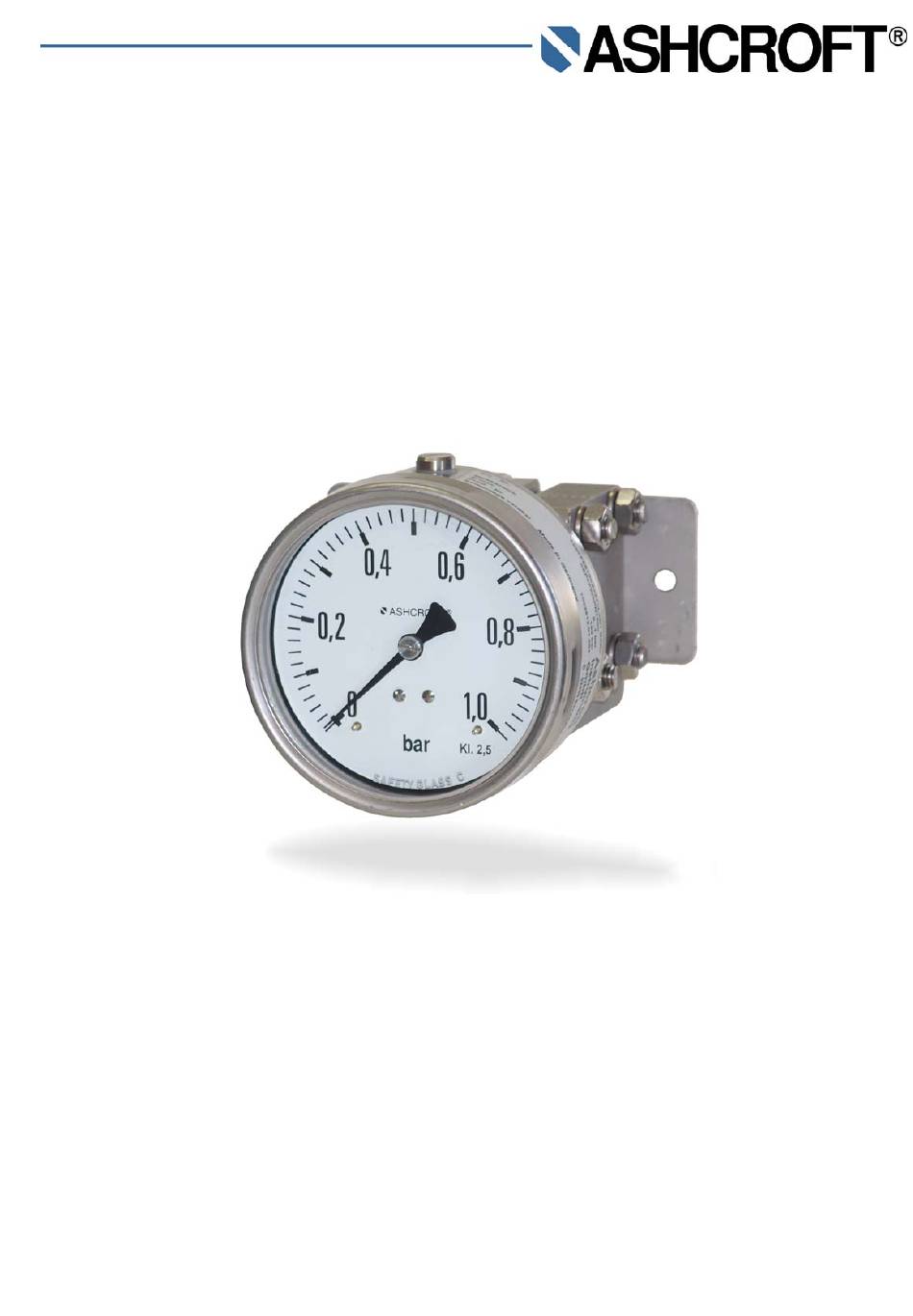

Page 1: Operating Manual

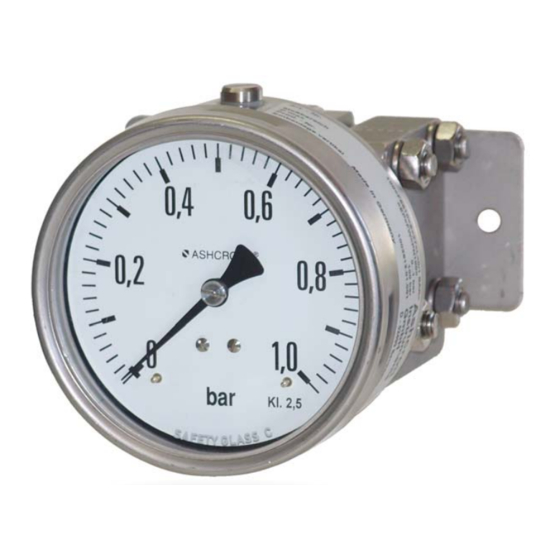

Operating Manual Differential pressure gauge, model F5510 (non-electrical device) in a 100=F5510=### configuration for industrial application IM-F5510-E-Rev 0 05/2011 Page 1 of 8... -
Page 2: Table Of Contents
Table of contents: General remarks.................................3 Purpose of this Manual............................3 Symbols................................3 Limits of liability ..............................3 Copyright ................................3 Warranty ................................3 Manufacturer’s address, customer services......................3 Safety..................................3 General sources of hazards ..........................3 Use in accordance with intended purpose ......................3 Operator’s responsibility............................4 Staff qualifications (target group assessment)....................4 Signs/Safety markings............................4 Safety equipment ..............................4 Environmental protection.............................4... -
Page 3: General Remarks
10.3 Disposal ................................8 Appendix .................................8 11.1 Data sheet for the F5510 Differential Pressure Gauge ...................8 1 General remarks 1.1 Purpose of this Manual This Operating Manual contains fundamental and essential advice to be followed for the installation, operation and servicing of the device. It must be read without fail before installation and start-up of the device by the fitter, the operator and the specialist personnel responsible for the device. -
Page 4: Operator's Responsibility
For each use scenario, the corresponding set-up regulations must be respected. The use in explosion risk areas is not permitted. 2.3 Operator’s responsibility Safety instructions for proper operation of the device must be respected. They must be provided by the operator for use by the respective personnel for installation, servicing, inspection and operation. -
Page 5: Construction And Function
5 Construction and function 5.1 Overview Coupling rod Separating diaphragm Measuring diaphragm Movement Torsion tube Transfer lever Pressure transfer liquid 5.2 Description of function The pressures to be compared act hydraulically via the separating diaphragm on the measuring diaphragm. When the pressure is equal, the measuring diaphragm is in the rest position. -
Page 6: Mounting/Installation
7 Mounting/Installation 7.1 Safety To ensure safe working during installation and servicing, suitable shut-off valves must be installed in the plant (see 5.4 Accessories), enabling the device: To be depressurized or taken out of operation; To be disconnected from the mains supply for repair or checks within the relevant plant; ... -
Page 7: Subsequent Relocation Of The Gauge (By The Customer)
7.4.1 Zero point adjustment The devices are supplied calibrated ex works, so that as a rule there is no need for calibration operations at the installation point. However, it is possible to adjust the zero point on site, and this is performed as follows: ... -
Page 8: Fault Table
Please help to protect the environment and dispose of or recycle the devices and components used in accordance with the applicable regulations. 11 Appendix 11.1 Data sheet for the F5510 Differential Pressure Gauge Detailed data sheet is available from suppliers website (see 1.6 Manufacturer’s address, customer services) This Table refers to specific documents:...
