30
31
32
33
34
35
36
37
38

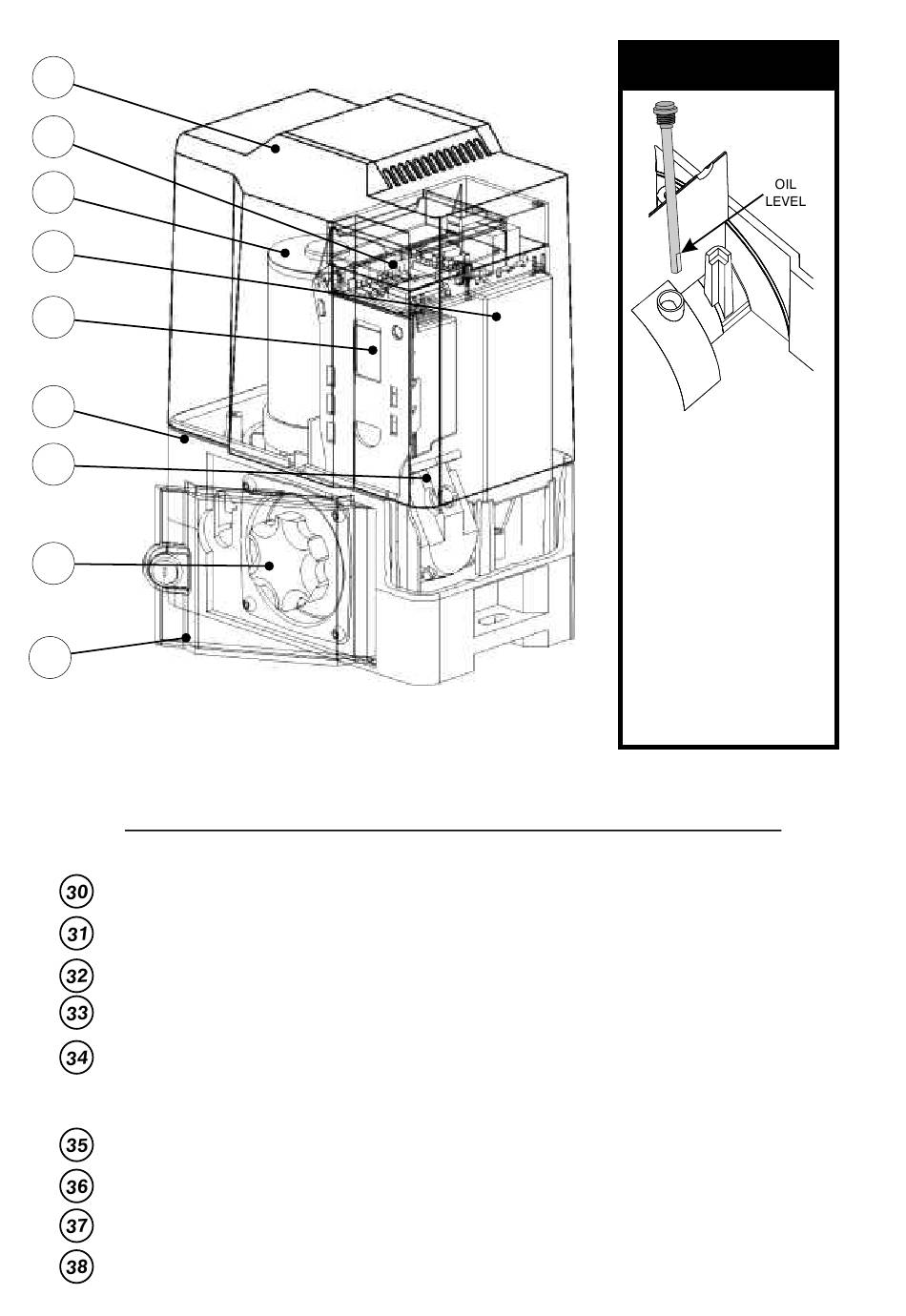

MAJOR COMPONENTS (TYPICAL D5 SHOWN)
- COVER
- CONTROLLER (CP80 FOR D3/D5; CP81 FOR A5)
- MOTOR (12V DC FOR D3/D5; 220V AC FOR A5)
- BATTERY (12V DC, 7A/H-D3/D5 ONLY) (OR PSU1/2, IF FITTED)
- CHARGER TRANSFORMER/POWER SUPPLY (CP84E for D3/D5
or CP83E for A5) (NOT FITTED WHEN PSU1/2 IS USED).
- GEARBOX CASING
- INTERNAL LIMIT SWITCH (DOSS)
- MANUAL RELEASE THUMBWHEEL
- LOCKABLE ACCESS DOOR
1
IMPORTANT
Oil Specifications:
GRADE: 75W90
Qty: 75ml
WARNING! (D5/A5 ONLY)
Fill with oil prior to running
gearbox.
For transport purposes this
unit has been supplied with
oil in a separate sealed
container.
1. Lift off the cover to the
operator.
2. Remove the control card
and battery so that you
can gain access to the
filler plug.
3. Unscrew the cap and
pour in the oil provided
NB. D3 is pre-filled with
fluid grease.
