Attach, remove and adjust an umbrella holder

The supplied umbrella is attached to Profi HD by means of the holder and adjusted via a
locking pin. The screen protects the device and the inspector from light rain and sunlight.
To attach the umbrella to the Profi HD, place the upper and then the lower magnet of the
umbrella holder one after another on the holder of the Profi HD.
To remove the umbrella from the Profi 4, hold the umbrella in the middle, move it upwards
and pull it off the holder of the Profi 4.
34

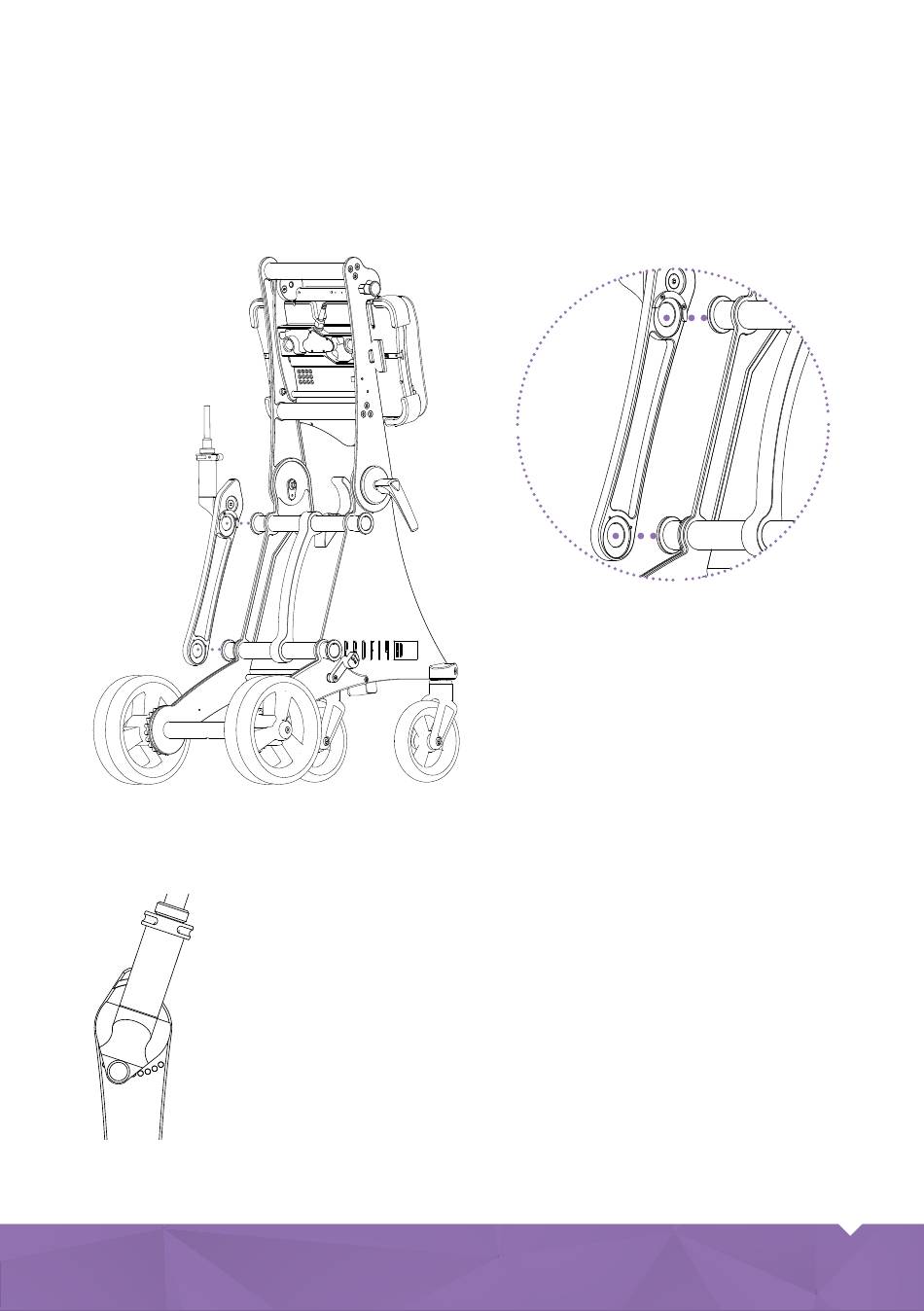

Illustration without umbrella
To adjust the position of the umbrella, hold the holder or the
umbrella with one hand firmly. Pull out the locking pin with the
other hand and hold it firmly. Turn the holder or the umbrella
until the desired position is reached. Release the pin and move
the holder or the umbrella until the pin engages.
For transportation, the holder can be folded under the umbrella
and locked with the locking pin fixed to reduce the size.
