Umbrella Holder; Work Preparation; Transport To Place Of Operation - Kummert PROFI HD Instruction Manual

a
Monitor cover
b Handle
c Locking pin
d Tab connection
e
Rotary handle
f Cable rewind knob
g Power supply connection
h
Wheels
i
Suspension for a reel or a cable
drum with magnetic mounting
2

Umbrella holder

a
b
a

WORK PREPARATION

Transport to place of operation

The device can be pushed or carried to the place of operation. The monitor cover shield
should be closed during transport.
To carry the device, hold the carrying handle and lift it up. The device tilts forward. To place it
down, first put on the front and then the rear wheels.
To push the device, make sure that the brake lever is released. Hold the handle and move it
to the desired direction.
EN
(Illustration without umbrella)
d
c
j
Carrying handle
k Magnetic mounting
l Brake lever
m Power plug
n
Reel/ cable drum connection socket
o Wifi box

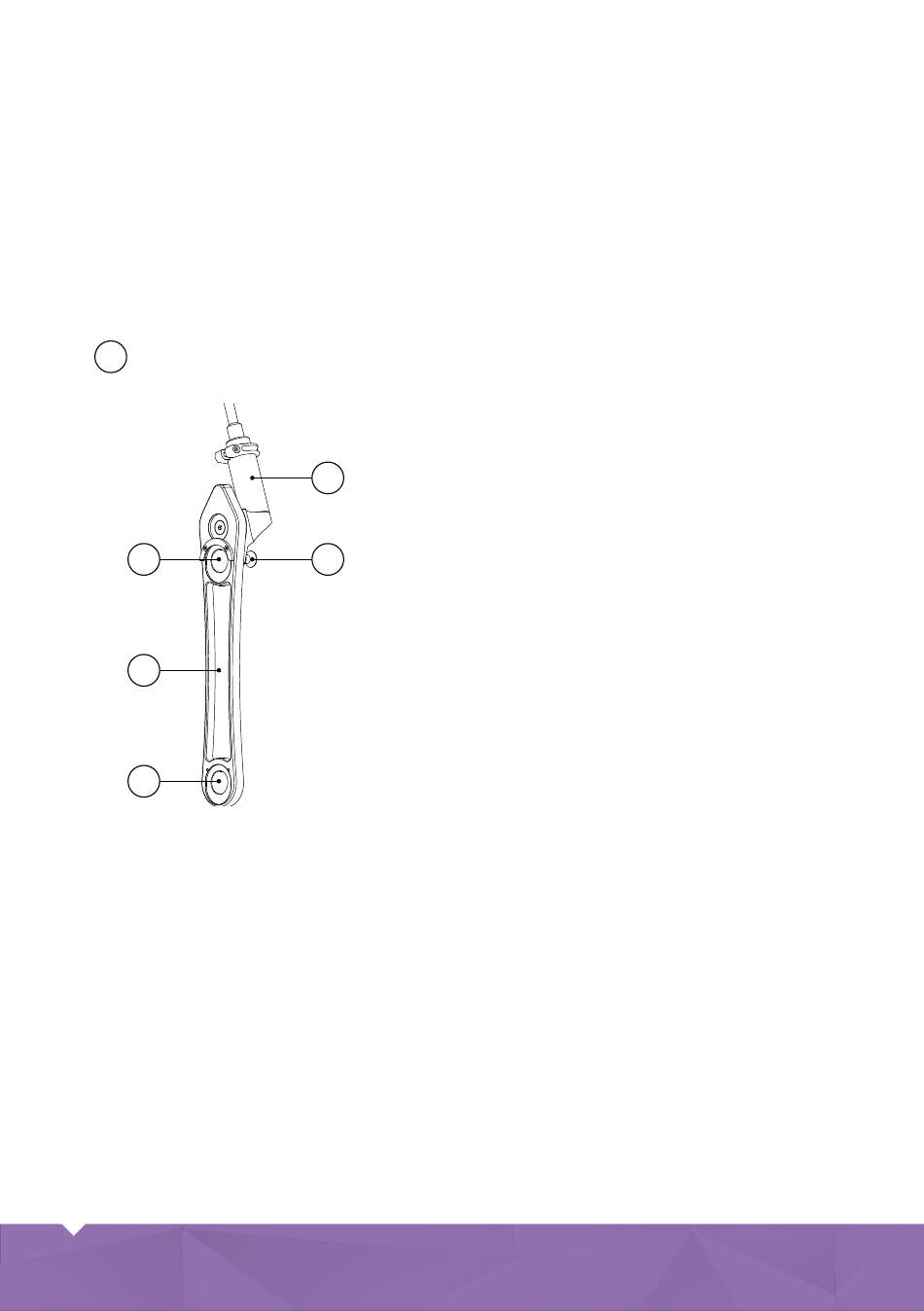

p Load Tab button
a Magnets
b Housing
c
Locking pin
d Swiveling holder
