3.2 Connection specifications

Mains
Batteries
Load outputs 1 and 2
Load outputs AUX 3, 4 and 5
Alarm reports
Ethernet cable

4 Commissioning

Before making any connections, open the battery fuse.
After the electrical connections have been made (mains, loads and batteries).
9
Close the upstream mains circuit-breaker.
10 Check the load output voltage on the alpha-numeric display.
11 Close the battery fuse protection
12 Check that the LED on the front operates correctly:
o
all OK: green
o
Any defects are visible and detailed through the front panel display.
Your appliance is up and running when the green LED is lit.

5 Ethernet configuration

Use a computer via Ethernet to configure the communication settings of the rack (see "7.2.4 Configuration
Page") before connecting to the LAN.

6 Operation

6.1 Alarms

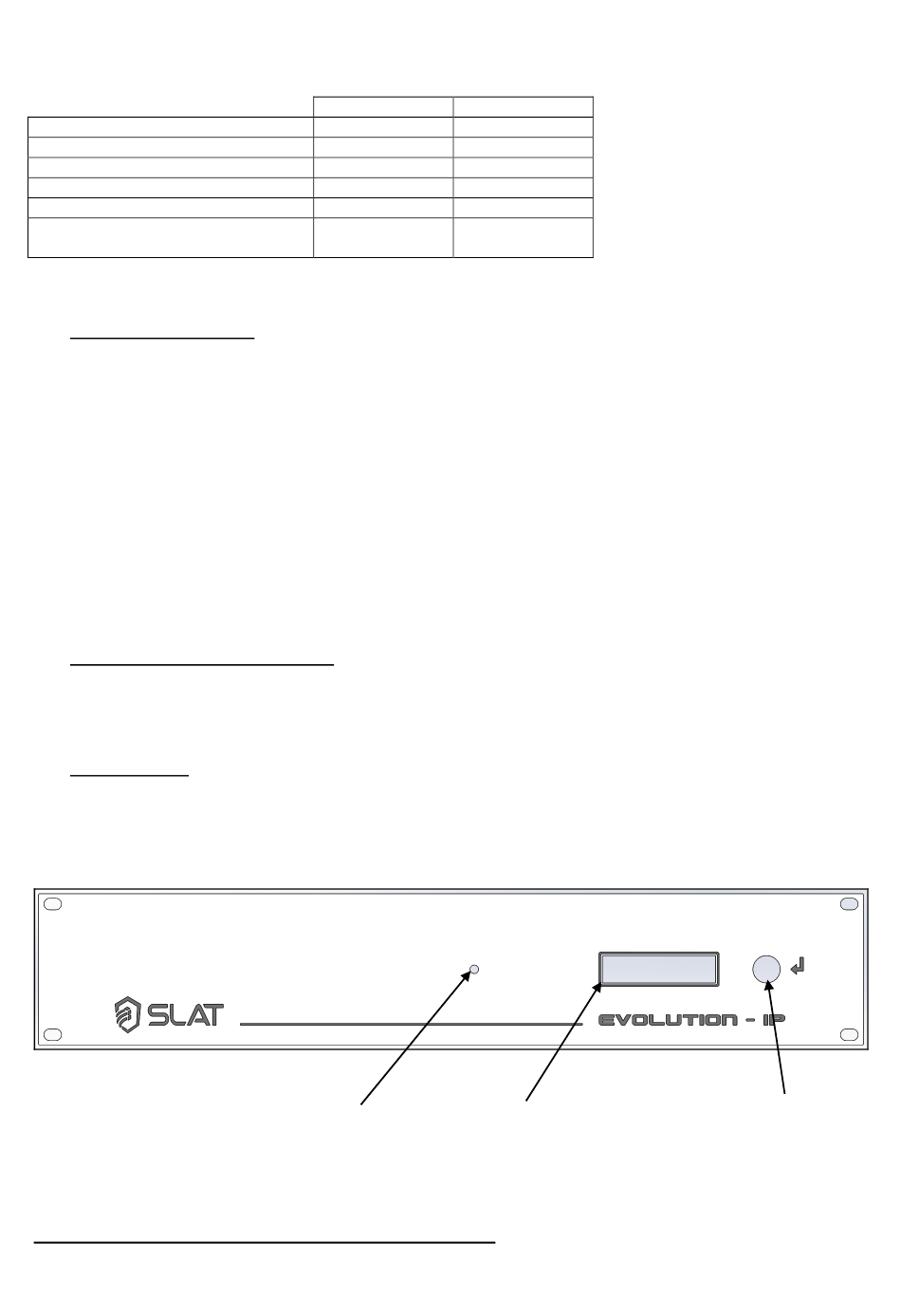

Front of the rack
Everything is working properly when the green LED is on.
300W
2.5 mm².
6 mm².
6 mm².
1.5 mm².
1.5 mm².
cat 5 / cat 6
(RJ45)
LED Alphanumeric display
57
Code : 180140005Ca - NDU :
Edition : 03/18
600W
2.5 mm².
10 mm².
10 mm².
1.5 mm².
1.5 mm².
cat 5 / cat 6
(RJ45)
NOT140004Ca
Button
