2 Installing your equipment
2.1 Mounting and cabinet size (WxHxD mm)
Rack 2U – Size: 483x89x358mm – IP30
Rack to be placed on shelf angles or 19" bay.
3 Connection

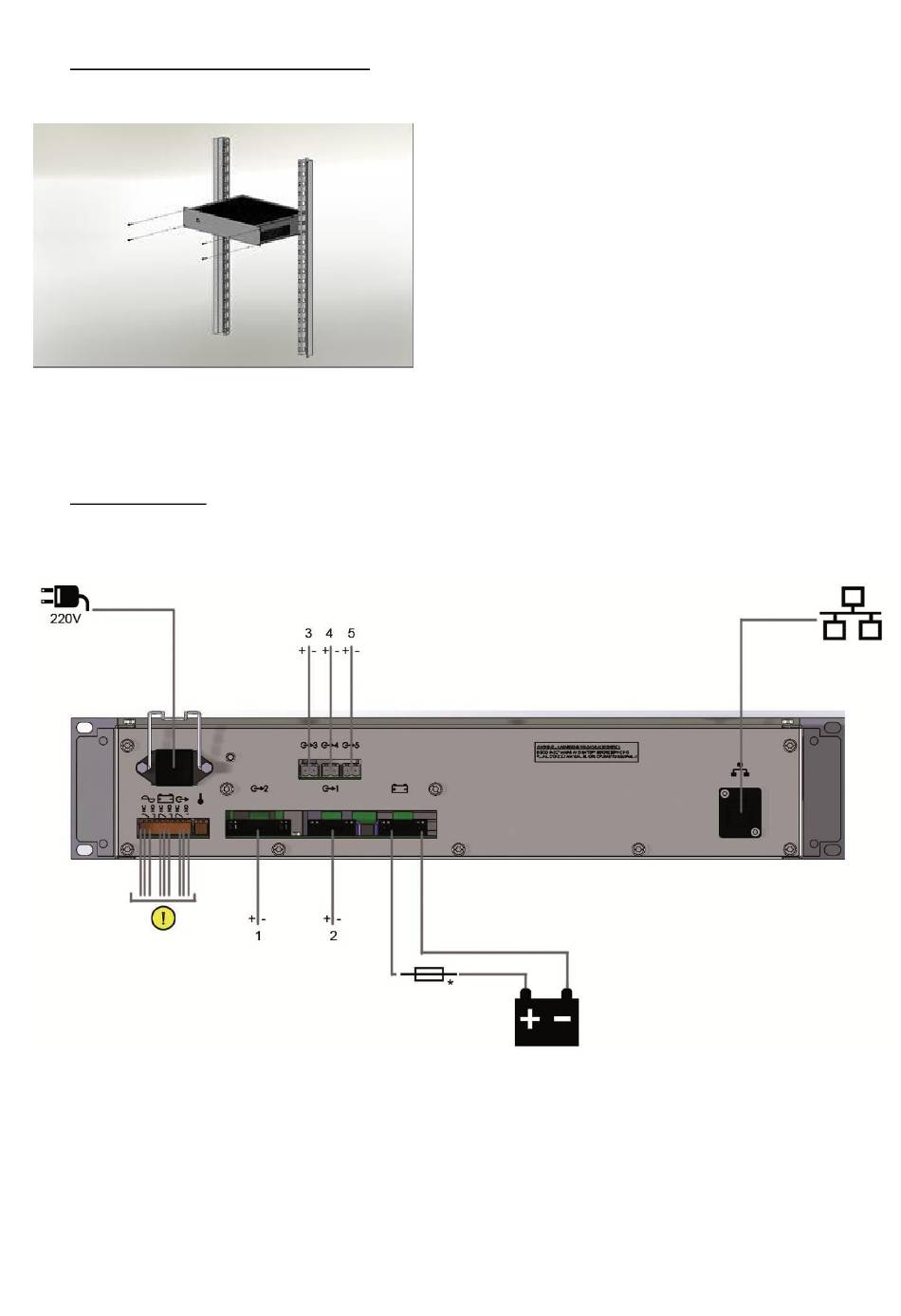

3.1 Connection diagram
Rear of rack
Alarm
reports
*Battery fuse not included, to calibrate according to theMax load current of the installation.
AUX
Load
56
Code : 180140005Ca - NDU :
Edition : 03/18
NOT140004Ca
