Temperzone Unit Controller 6 - Operation and installation- Hydronic

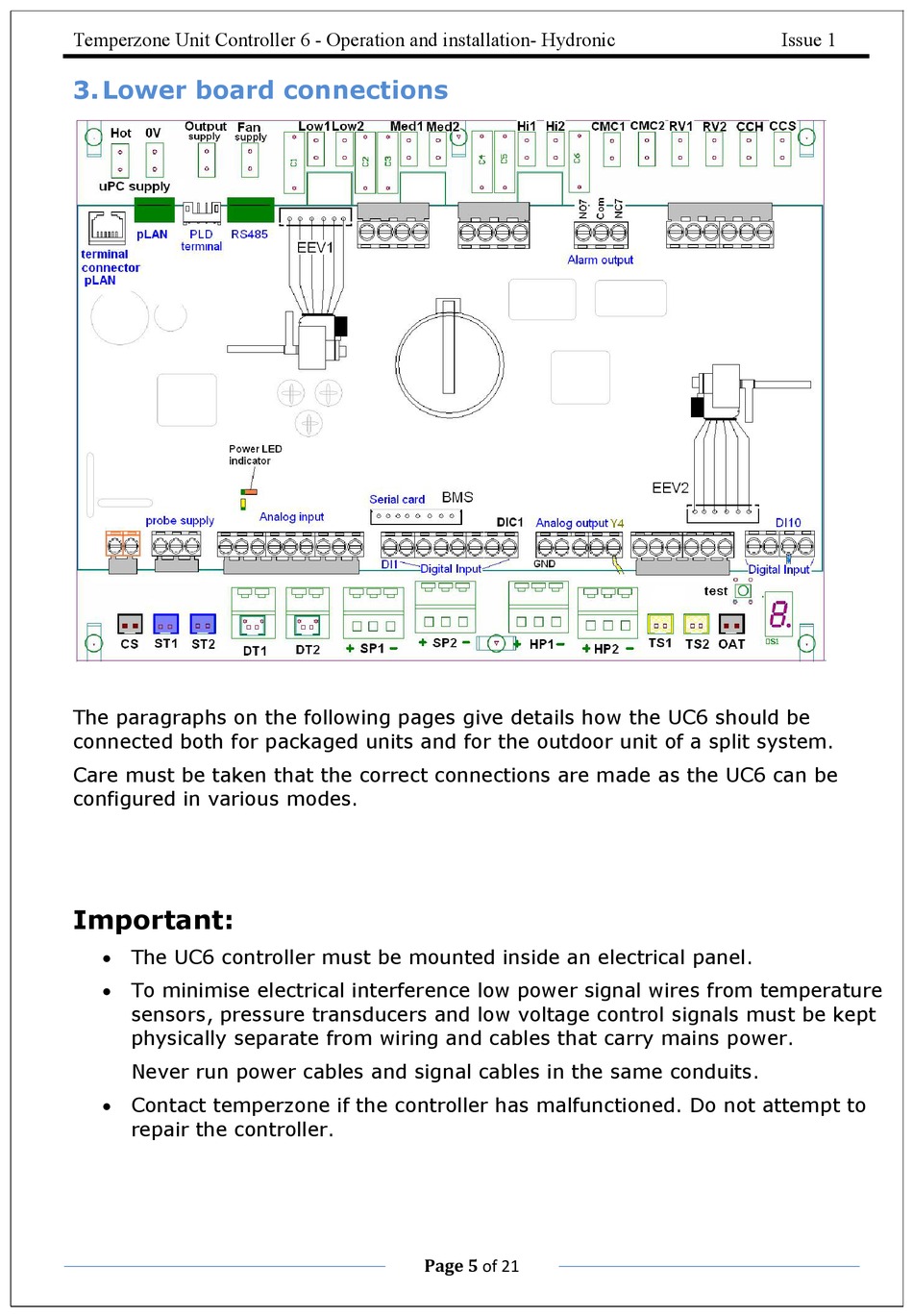

3. Lower board connections

The paragraphs on the following pages give details how the UC6 should be
connected both for packaged units and for the outdoor unit of a split system.
Care must be taken that the correct connections are made as the UC6 can be
configured in various modes.
Important:
 The UC6 controller must be mounted inside an electrical panel.
 To minimise electrical interference low power signal wires from temperature
sensors, pressure transducers and low voltage control signals must be kept
physically separate from wiring and cables that carry mains power.
Never run power cables and signal cables in the same conduits.
 Contact temperzone if the controller has malfunctioned. Do not attempt to
repair the controller.
Page 5 of 21
Issue 1
