- Page 1 Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 UNIT CONTROLLER 6 (UC6) Operation and Installation Hydronic Date: 12 October 2015 Issue: 1 Page 1 of 21...
-
Page 2: Table Of Contents
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 Contents Introduction ............................4 Features ............................. 4 Lower board connections ........................5 3.1. Power supply terminals ......................6 3.2. Output terminals ......................... 6 3.3. Input terminals ..........................7 Upper board connections........................9 4.1. - Page 3 Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 Test mode ............................18 Commissioning mode ........................19 Display summary ..........................20 Page 3 of 21...
-
Page 4: Introduction

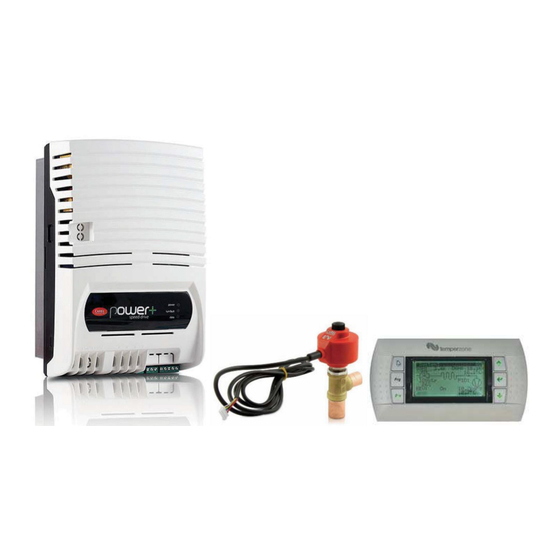

Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 1. Introduction The temperzone Unit Controller 6 (UC6) is the successor to the OUC4 controller. The UC6 provides increased capability and flexibility in indoor-, outdoor- and packaged units. The complete controller combines the µPC controller board from Carel plus an interface board to connect temperzone standard sensors and plugs. -
Page 5: Lower Board Connections
Never run power cables and signal cables in the same conduits. Contact temperzone if the controller has malfunctioned. Do not attempt to repair the controller. Page 5 of 21... -
Page 6: Power Supply Terminals
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 3.1. Power supply terminals The UC6 is powered by 24V ±10% AC. A class 2 safety transformer with a minimum rating of 24VA must be used in the installation. The power supply to the UC6 controller must not be used to power other electrical devices. -
Page 7: Input Terminals
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 When the UC6 is configured indoor fan as EC motor: Terminal Signal Notes Low1 No function. Low2 Med1 No function. Med2 Hi1/Hi2 Active to turn on the EC fan contact... - Page 8 Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 Terminal Signal Notes Compressor suction line pressure 0-5V transducer Compressor discharge line pressure Water In temperature Blue wires Water Out temperature Outdoor air temperature black wires Page 8 of 21...
-
Page 9: Upper Board Connections
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 4. Upper board connections The digital input port common pins DIC1 and DIC2 are internally directly connected to the local board 0V. 4.1. Digital input signals When the UC6 is configured as three indoor fan speed:... -
Page 10: Digital Output Signals
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 When the UC6 is configured for DRED function: Signal Notes When activated the compressors will be OFF. DRED1 The indoor fan is allowed to continue. DRED2 active: Total unit energy... -
Page 11: Communication Ports
Note 1: Connectors to the UC6 show R+/T+ for signal A, R-/T- for signal B. 4.4.1. Temperzone TZT-100 thermostat connection The UC6 can connect directly to the temperzone TZT-100 thermostat using a shielded cable with two twisted pair wires suitable for RS485 serial communications. The drawing below shows connection details. -
Page 12: Power+ Inverter Driver Connection
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 4.4.2. Power+ inverter driver connection BLDC compressor driver Power+ is connected to UC6 at same port with TZT-100 using a shielded cable. See the details at below drawing. Page 12 of 21... -
Page 13: Electronic Expansion Valves
Variable duty units The UC6 can control a variable speed compressor or a digital scroll compressor. Temperzone pre-configures the unit to the correct compressor type; a UC6 service tool is required if the compressor type configuration must be changed. The capacity input signal must connect to input CS (0-1V, duty 10% per 0.1V). -
Page 14: Indoor Fan Control
DI1: Low o DI2: Medium o DI3: High If the system uses a temperzone TZT-100 thermostat then the indoor fan input signals are received from the TZT-100 through the RS485 communications cable. Two types of outputs are available for indoor fan speed control: ... -
Page 15: Demand Response Management
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 Suction side superheat is defined by the difference between the evaporating temperature and the compressor suction line temperature. The evaporating temperature normally is calculated from the suction line pressure. -
Page 16: Loss Of Refrigerant Protection (Lor)
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 The UC6 will automatically reduce capacity of a variable compressor before the maximum value of 42bar / 66°C is reached. When a compressor is stopped due to high pressure it is held off for a period of 3 minutes, after which it is allowed to restart (provided pressure has fallen well below the maximum). -
Page 17: High Discharge Line Temperature Protection (Hdt)
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 If this temperature falls below the threshold then some amount of ice (frost) is likely to have formed on the indoor coil. When indoor coil frost protection is activated the compressor is stopped for 15 minutes, after which it is allowed to restart. -
Page 18: Low Output Water Temperature Protection
Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 6.11. Low output water temperature protection If the output water temperature is blow 2°C for a contain time, stop the compressor. Minimum output water temperature and the delay time are configurable variables on UC6 service tools Service Configuration page. - Page 19 Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 8. Commissioning mode To start commissioning mode press and hold down the push button on the lower board between 10 and 15 seconds. In commissioning mode all time delays are reduced to 1/10 their standard value to enable rapid diagnostic testing.
- Page 20 Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 9. Display summary Description Notes Section Normal operation Compressor timer active Compressor is held OFF until timer expires Compressor timer active Compressor is held ON until timer expires Loss of refrigerant alarm...
- Page 21 Temperzone Unit Controller 6 - Operation and installation- Hydronic Issue 1 Commissioning mode Or service mode. resets after 30 Minutes. Lock out The specific repetitive fault that 6.12 (A repetitive fault has caused the lockout is identifiable: caused the system to 1.Frost lockout...
