Protos 3400(X)
ENG
Safety information
and short description

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Protos 3400 and is the answer not in the manual?

Questions and answers

Related Manuals for Knick Protos 3400

Summary of Contents for Knick Protos 3400

  • Page 1 Protos 3400(X) Safety information and short description...
  • Page 2 Defects occurring within 3 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender). Sensors, fittings, and accessories: 1 year. ©2014 Subject to change without notice Instruction manuals and parameter sets for copy are provided as download at: www.knick.de TS-201.011-KNX03 20140321...

  • Page 3: Safety Information

    Safety information Information on installation Be sure to read and observe the following instructions! The device has been designed in accordance with the state of the art and complying with the applicable safety regulations. When operating the device, certain conditions may nevertheless lead to dan- ger for the operator or damage to the device.
  • Page 4 The Protos version with coated steel enclosure – extremely corrosion resistant – has been developed for application in the chemical industry, environmental engineering, water and waste-water treatment, and for application in power plants . ENG-4 Protos 3400(X)
  • Page 5 Module FRONT, Module BASE 3400-0 Extract from general technical specifications >>> see "Certificates" for IECEx, ATEX, FM & CSA ––––––––––––––––––––– ––––––––––––––––––––––––––––––––––––––––––––––––– Display* LC graphic display, white backlighting Resolution 240 x 160 pixels Languages German, English, French, Italian, Spanish, Swedish –––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––...

  • Page 6: Connection Of Power Supply

    • Be sure not to notch the conductor when stripping the insulation. • All parameters must be set by a system administrator prior to commissioning. The terminals are suitable for single wires and flexible leads up to 2.5 mm (AWG 14). ENG-6 Protos 3400(X)
  • Page 7 Connection of power supply Warning! Beware of dangerous contact voltages! BASE module 3400-029,terminal plate Connection of power supply With the VariPower broad-range power supply unit, the Protos can be operated with a power supply of 24 (-15 %) to 230 (+15 %) V AC/DC making it suitable for all public mains supplies in the world.

  • Page 8: Short Description: Front Module

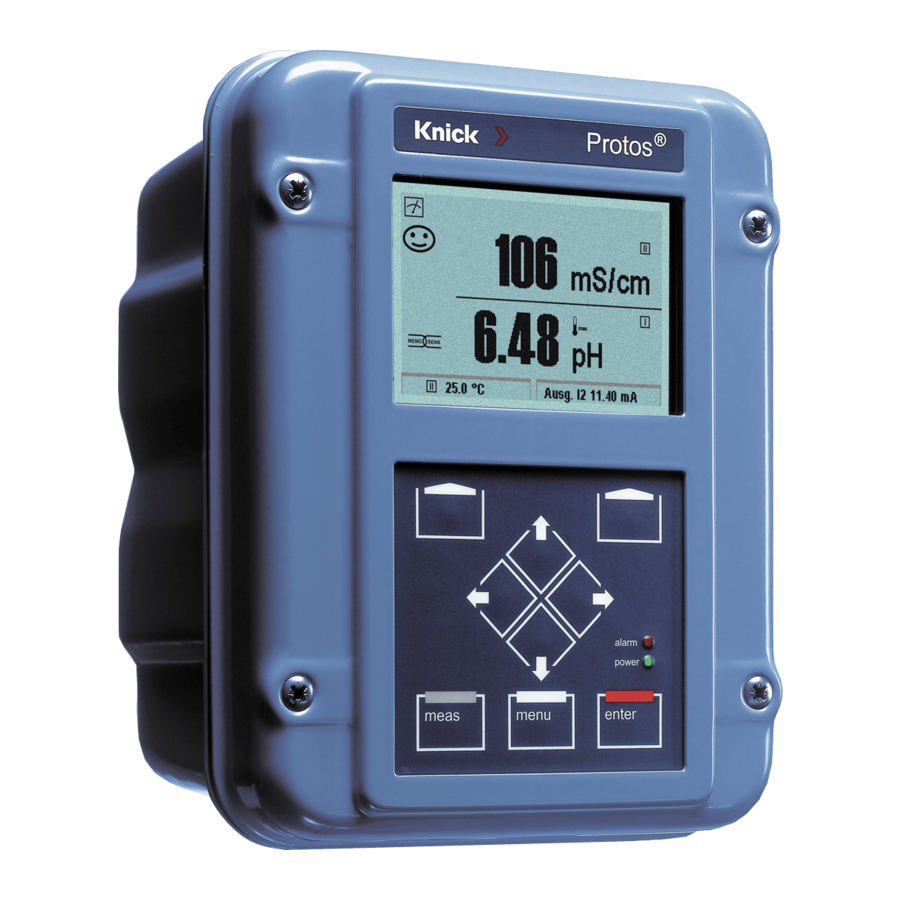

    Short description: FRONT module Protos 3400 Modular hardware and software system for liquid analysis. 4 captive scews Transflective LC graphic display for opening the Protos (240 x 160 pixels) (Caution! Make sure that the gasket white backlighting, high resolution between FRONT and BASE is properly seated and clean!) and high contrast.

  • Page 9: Short Description: Menu Structure

    Short description: Menu structure Basic functions: Calibration, maintenance, parameter setting, diagnostics Menu groups Calibration Maintenance Parameter setting Diagnostics Measuring Passcode: 1246 2958 1147 Operator level 1989 Admin. level Selection of Module 1 BASE SYSTEM Message list Module 1 further Module 2 FRONT Logbook Module 2...
  • Page 10 Short description: FRONT module Protos 3400 View into the open device (FRONT module) Slot for SmartMedia card • Data recording The SmartMedia card expands the measurement recorder capacity to > 50000 records. • Exchange of parameter sets 5 parameter sets can be stored...

  • Page 11: Short Description: Base Module

    Short description: BASE module Protos 3400 View into the open device (BASE module, 3 function modules installed) Module equipment Module identification: Plug & Play Up to 3 modules can be combined as desired. Several input and communication modules are available.
  • Page 12 Removing the SmartMedia card • “Close memory card” (Maintenance menu) To avoid data loss, please call up the Maintenance menu. “Close memory card” to terminate software access to the SmartMedia card. Now the card can be taken out. ENG-12 Protos 3400(X)
  • Page 13 card: Usage SMARTMEDIA Use as memory card in combination with additional functions. Additional functions must be ordered separately (release via TAN). Types of SmartMedia cards The SmartMedia cards are delivered from the manufacturer as • software update (SW 3400-106) • Memory card (additional functions SW 3400-101 ... 1xx) Using commercially available SmartMedia cards Commercially available SmartMedia cards can be used as memory card (Software updates are supplied by the manufacturer and are device-specific).
  • Page 14 To avoid interferences, the cable shielding must be completely covered by the ESD shielding cap. Close ESD shielding cap (if provided) Close device, tighten screws at the front Switch on power supply Set parameters (see module description) ENG-14 Protos 3400(X)
  • Page 15 ENG-15...
  • Page 16 Knick Elektronische Messgeräte GmbH & Co. KG Beuckestraße 22 14136 Berlin Phone: +49 (0)30 - 801 91 - 0 Fax: +49 (0)30 - 801 91 - 200 Internet: http://www.knick.de knick@knick.de Protos 3400(X)

This manual is also suitable for:

Protos 3400x
