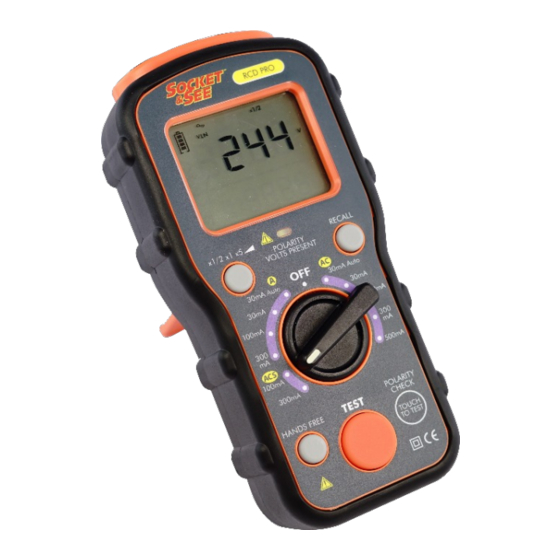

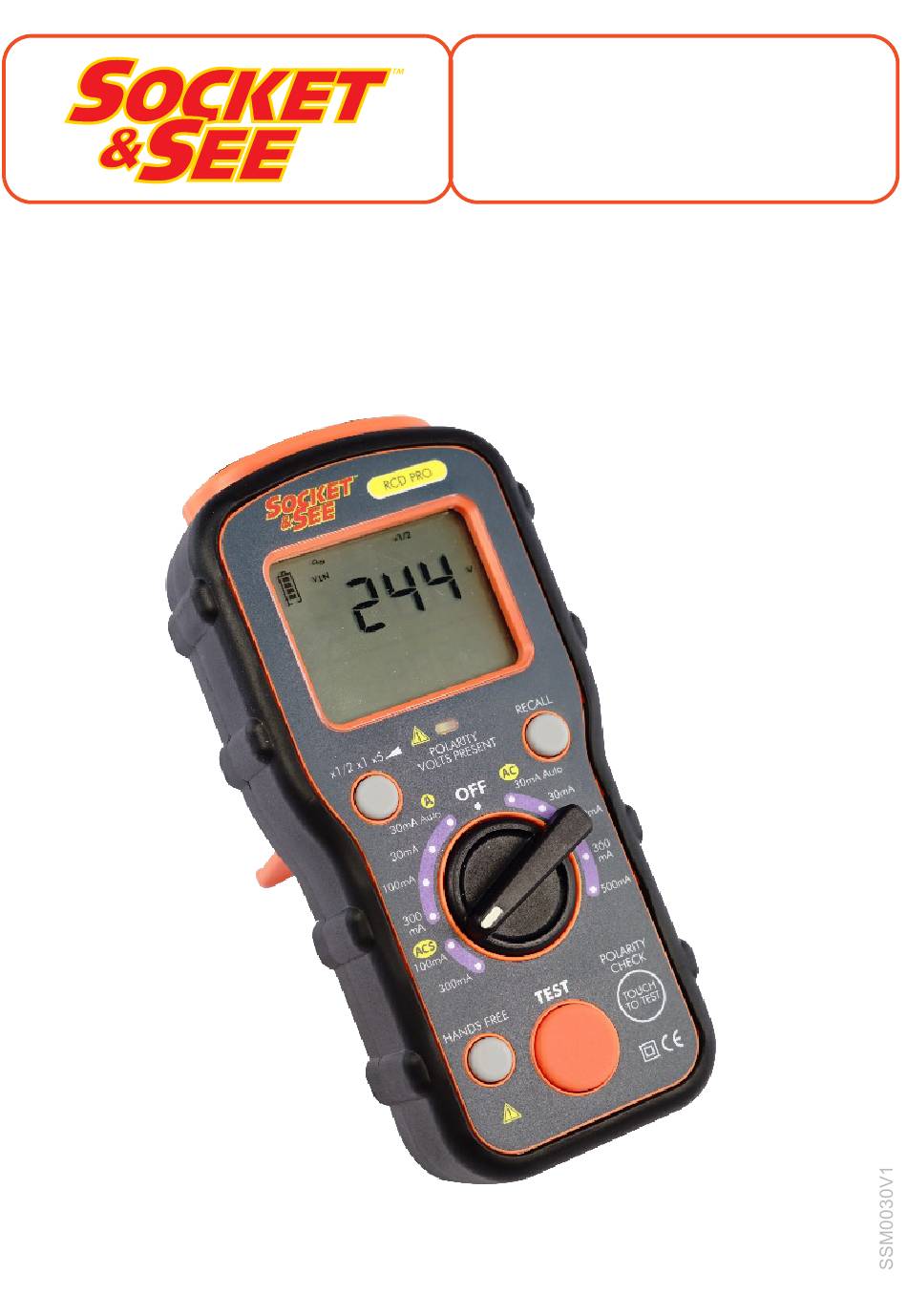

- Page 1 RCD PRO Professional RCD Tester Instruction Manual & Specification...
- Page 2 The RCD PRO is designed to be used by skilled persons in accordance with safe methods of work. If the RCD PRO is used in a manner not specified by Socket & See, the protection provided by it may be impaired.
- Page 3 To maintain safety, ensure serviceability and to monitor accuracy of the RCD PRO the tester should be checked on a checkbox such as the Socket & See CB400 at regular intervals. When connecting to mains, ensure the colour coding on the test leads and terminals is adhered to.
- Page 4 2.2 Indication The white display backlight will illuminate when switching on and during testing. To preserve battery life the backlight will switch off after approximately 4 seconds of inactivity. The unit will automatically power off after approximately 3 minutes of inactivity. To switch the tester back on after auto power off press any button.
- Page 5 3.1 Battery Installation Unit requires 4 x AA batteries. Ensure that all test leads are removed before installing batteries. Remove the rubber over mould then the battery cover on the reverse of the unit. Install the new batteries ensuring correct polarity as indicated. After installing batteries and before use ensure the battery cover and rubber over mould are correctly fitted, switch on the unit and check for correct operation.
- Page 6 volts present LED will illuminate green and a test can be carried out by pushing the test button. The tester will display the leakage current at which the RCD tripped along with a pass or fail indication. Hands Free The Hands Free function can be used with any RCD test. Select the required RCD type on the rotary dial.
- Page 7 Socket & See Tel: +44 (0) 1782 567096 Century Road Fax: +44 (0) 1782 567095 High Carr Business Park Newcastle-Under-Lyme Email: sales@socketandsee.co.uk Staffordshire, UK Website: www.socketandsee.co.uk ST5 7UG Specification Supply Voltage 195V - 253V AC 50Hz RCD Trip Time Measurement Range Operating Range Per BSEN61557-6 5 ms - 1999 ms 30 ms - 1999 ms...
- Page 8 Storage Temperature -10 to 60°C Operating Humidity 80% @ 31°C to 50% @ 40°C Safety Compliance BSEN 61010-2-030:2010 EMC Compliance BSEN 61326-2-2:2013 BSEN 61557-1:2007 Performance Standard BSEN 61557-6:2007 Probes GS38 Compliant Dimensions (mm) 180mm x 85mm x 50mm Weight (g) Approximately 450g...
