PDL 234Plus
Part P Loop Testing Kit
Instruction Manual & Specification
SS004V2
Sn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDL 234Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Socket & See PDL 234Plus

Summary of Contents for Socket & See PDL 234Plus

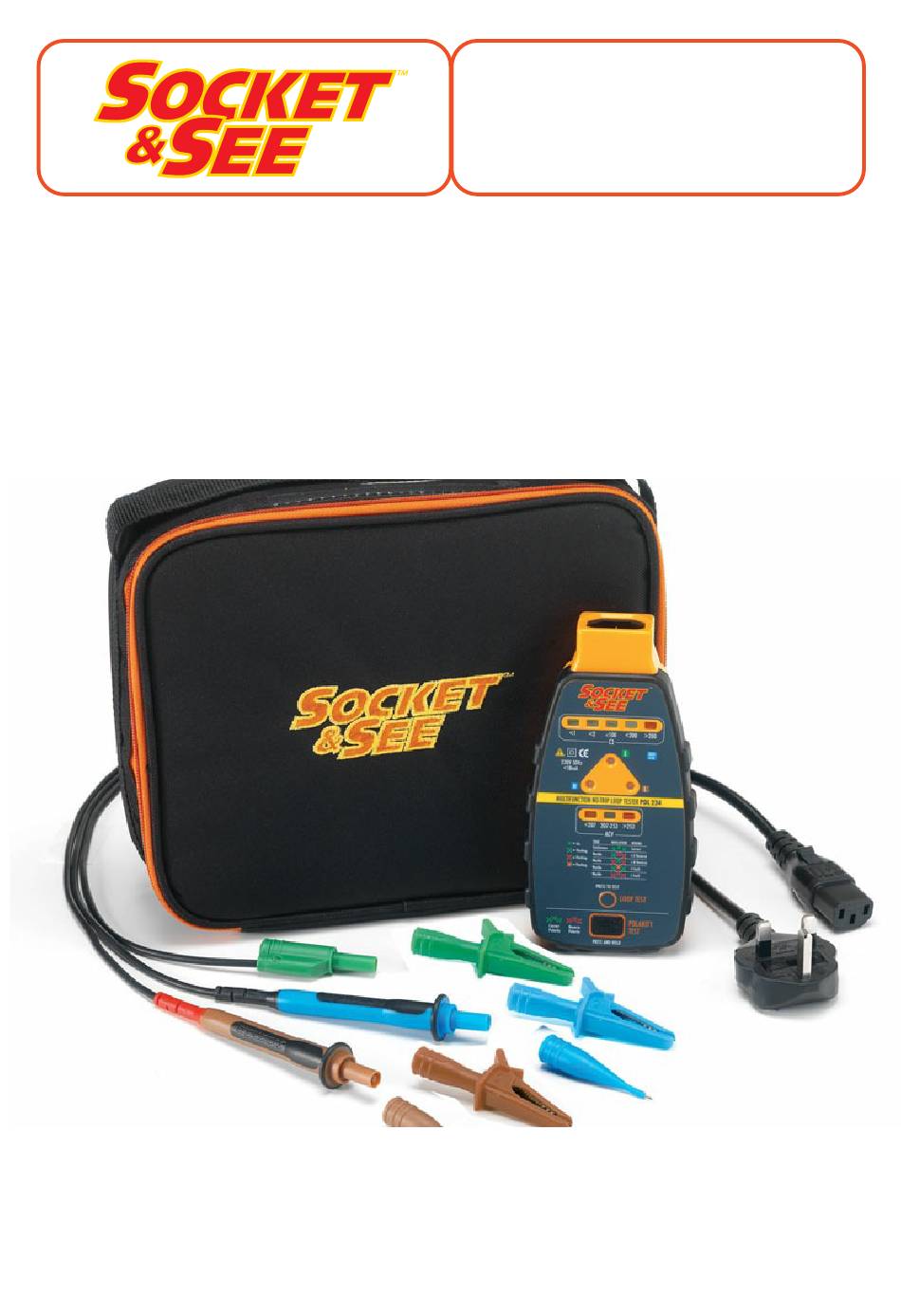

  • Page 1 PDL 234Plus Part P Loop Testing Kit Instruction Manual & Specification SS004V2...

  • Page 2: Equipment Markings

    SS004V2 1. Safety 1.1 Equipment Markings Caution - refer to the instruction manual Construction is double insulated Product should be recycled as electronic waste Conforms to EU standards Measurement Category III is applicable to test and measuring circuits connected after the source of the building’s low-voltage MAINS installation.
  • Page 3 SS004V2 To maintain safety always check the tester on a known correctly wired live socket outlet before and after use. Or use a suitable checkbox such as the Socket and See CB400. 2. Description The PDL234 is a multi function tester, testing no trip loop, mains voltage correct socket wiring and polarity.
  • Page 4 SS004V2 Mains Voltage Indication Value (Volts AC) LED INDICATION < 207 AMBER 207 - 253 GREEN > 253 3. Usage Fault loop result LED’s Socket wiring and Polarity status LED’s Mains voltage LED’s Table of correct and common socket wiring faults Loop test push button...

  • Page 5: Operation

    SS004V2 3.1 Operation If the tester is to be used with on a fixed 13A socket outlet simply use the IEC 13 Amp lead and plug directly into the socket outlet. If the tester is connected to a switched or unswitched spur via the fused test leads it is strongly recommended the supply is isolated before the first connections are made.
  • Page 6 SS004V2 3.1.4 No Trip Loop Testing A brief press of the test button will initiate the loop test. Three socket test LED’s will flash orange to indicate a loop measurement is being taken. The result will then be displayed on the Fault loop results LED’s . For a guide to results please see the below table.
  • Page 7 SS004V2 Condition Wiring Supply Terminal Buzzer Number Conditions Socket Wiring Correct Continuous L-E reverse Warble L-N-E Warble miswire L-N reverse Warble L-N-E Warble miswire Faulty N/L-E Warble miswire Faulty N/E Warble miswire Faulty N Warble Faulty N/L-E Warble reverse Faulty E/L-N Warble reverse Faulty E...

  • Page 8: Maintenance And Service

    SS004V2 4. Maintenance and Service If required, clean with a damp cloth and mild detergent. Do not use abrasives or solvents. There are no user serviceable parts. Contact Socket and See for parts and technical assistance. Socket and See Century Road High Carr Business Park Newcastle Staffordshire, UK...

  • Page 9: Wiring Test

    SS004V2 Specification Wiring Test Detects missing E or N (>15kΩ) Detects L-E or L-N swap Detects Network Supply Live - Earth/Neutral reversal by use of Polarity Test Pad. Phase - Neutral voltage measurement accuracy to 1% and displayed on 3 LED’s <...
  • Page 10 SS004V2 Specification Continued Overvoltage Category CAT III 300 V 440V AC No damage complete Over Voltage Protection recovery Operating Temperature 0ºC to 40ºC Operating Humidity 80% @ 31ºC to 50% @ 40ºC Safety Compliance BS EN 61010-2-030:2010 Probes GS38 Compliant 140mm x 80mm x 31mm Dimensions Weight...
