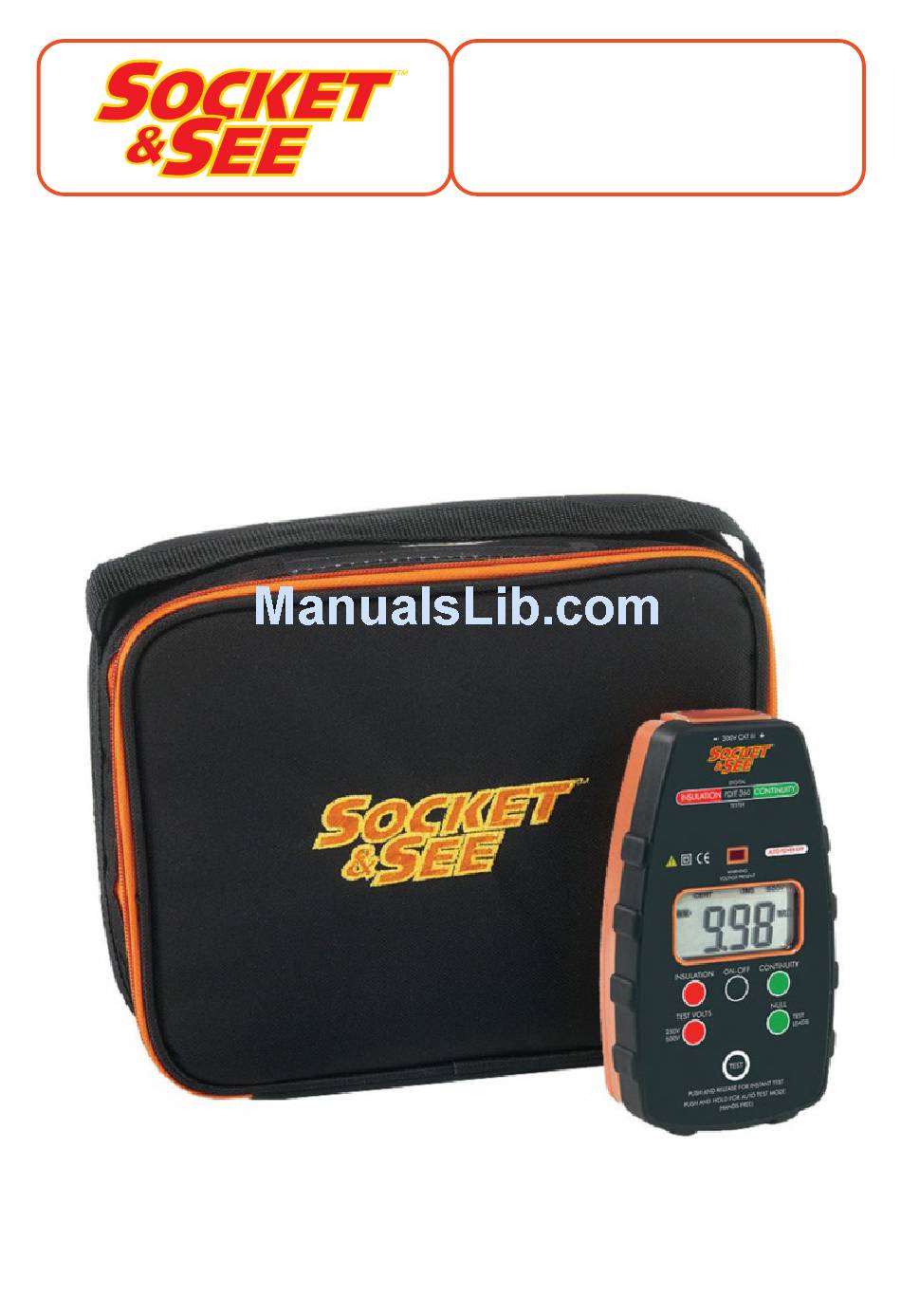

PDIT 360
Part P Insulation / Continuity Tester
Instruction Manual & Specification
SS006V2
Sn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDIT 360 and is the answer not in the manual?

Questions and answers

Related Manuals for Socket & See PDIT 360

Summary of Contents for Socket & See PDIT 360

  • Page 1 PDIT 360 Part P Insulation / Continuity Tester Instruction Manual & Specification SS006V2...

  • Page 2: Equipment Markings

    SS006V2 1. Safety 1.1 Equipment Markings Caution - refer to the instruction manual Construction is double insulated Product should be recycled as electronic waste Conforms to EU standards Measurement Category III is applicable to test and measuring circuits connected after the source of the building’s low-voltage MAINS installation.
  • Page 3 F 500mA fast blow ceramic 500V fuse. It is located inside the battery compartment. 2. Description The PDIT 360 is a Part P insulation Resistance and Continuity Tester. 2.1 Features ● 2 way 250 and 500 Volt insulation plus 200mA continuity test ●...
  • Page 4 SS006V2 1. Fuse Broken DO NOT PROCEED 2. > Greater than / < Less than 3. Battery Condition (Replace if flashing) 4. Null function - (Continuity only) Nulls and stores the resistive value of the test leads for the testing sessions you are in (automatically resets to zero on switch off).

  • Page 5: Operation

    Once the unit has been switched on press and release the continuity button to enable continuity tests to be carried out. The PDIT 360 has a test lead null facility to ensure accurate readings. To null the test leads hold the tips of the leads firmly together and then press and release the null button.

  • Page 6: Maintenance And Service

    SS006V2 4. Maintenance and Service If required, clean with a damp cloth and mild detergent. Do not use abrasives or solvents. Access to the protective fuse is gained through the battery compartment. Contact Socket and See for parts and technical assistance. Socket and See Century Road High Carr Business Park...
  • Page 7 SS006V2 Specification Continued Insulation Test Ranges Test Voltage Ranges (Auto Range) Tolerance (@20ºC) 0.01 to 9.99 MΩ + 3% +1 digit 250V 10.0 to 99.9 MΩ + 3% +1 digit 100 to 199 MΩ + 6% +1 digit 0.01 to 9.99 MΩ + 3% +1 digit 10.0 to 99.9 MΩ...

  • Page 8: Ordering Information

    SS006V2 Ordering Information Edition Equipment Item Supplier Code Socket and See PDIT360 Part P SOC/PDIT360 insulation tester Socket and See CB400 Professional SOC/CB400 non trip check box Socket and See PDL310 4 in 1 Loop SOC/PDL310 tester Socket and See DL420Plus Loop SOC/DL420Plus testing kit Socket and See PDL234Plus Part P...
