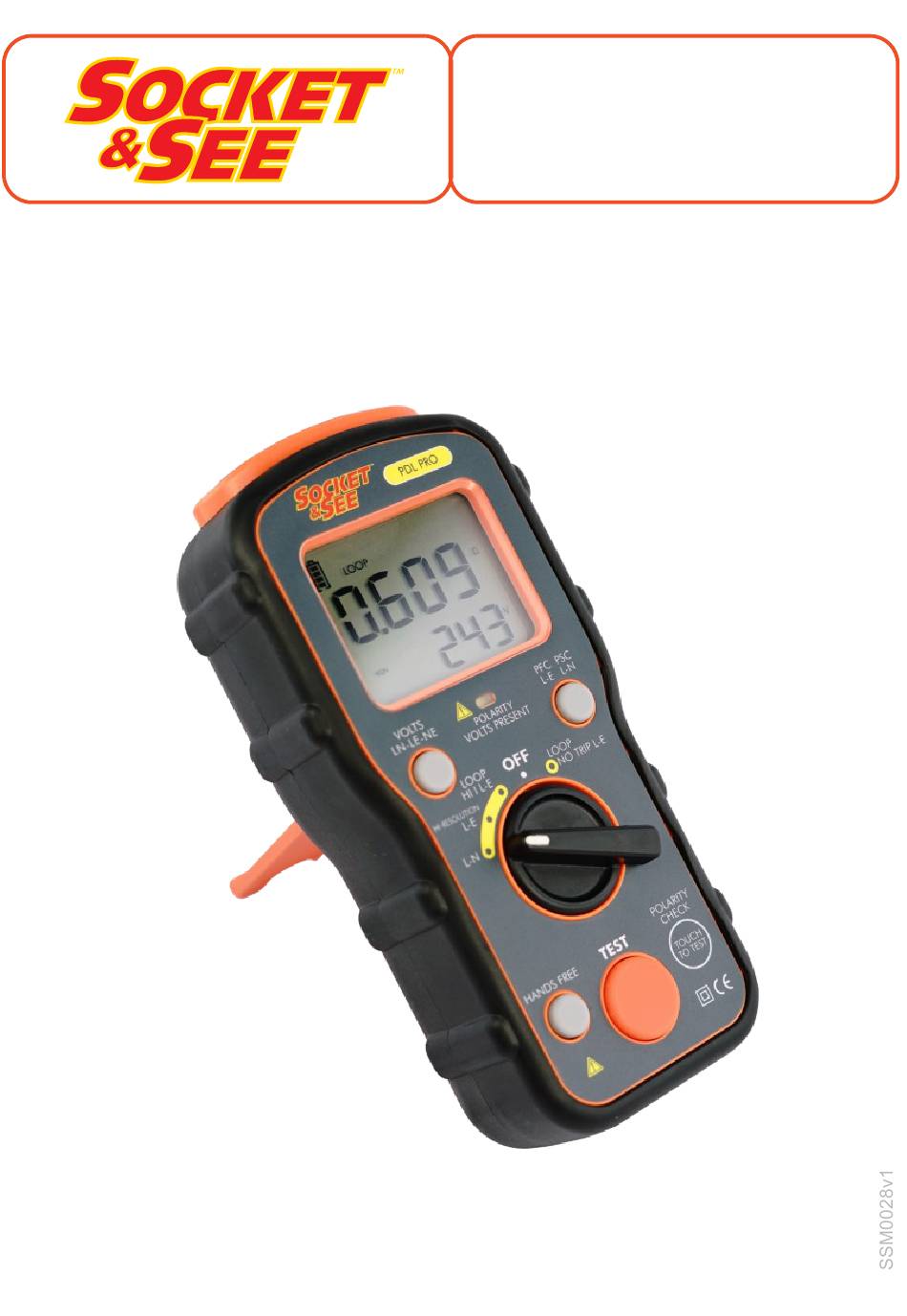

- Page 1 PDL PRO High Resolution Loop Tester Instruction Manual & Specification...
- Page 2 Safety 1.1 Equipment Markings Caution - refer to the instruction manual. Construction is double insulated. Product should be recycled as electrical waste. Conforms to EU standards. Prohibited to use on Electrical Systems which use voltages above 550V. Measurement Category IV is applicable to testing and measuring circuits at the origin of the installations supply.
- Page 3 The PDL PRO is designed to be used by skilled persons in accordance with safe methods of work. If the PDL PRO is used in a manner not specified by Socket & See, the protection provided by it may be impaired.
- Page 4 2.2 Indication The white display backlight will illuminate when switching on and during testing. To preserve battery life the backlight will switch off after approximately 4 seconds of inactivity. The unit will automatically power off after approximately 3 minutes of inactivity. To switch the tester back on after auto power off, press any button..
- Page 5 3.1 Battery Installation Unit requires 4 x AA batteries. Ensure that all test leads are removed before installing batteries. Remove the rubber over mould and battery cover on the reverse of the unit. Install the new batteries ensuring correct polarity as indicated. After installing batteries and before use ensure the battery cover and over mould are correctly fitted, switch on the unit and check for correct operation.
- Page 6 Turn the rotary dial to the Loop High Resolution L-E or L-N as required. Voltage L-N will be displayed and volts present LED will illuminate green if conditions are correct. Push TEST. Loop result will be displayed to 1 mΩ resolution with Voltage L-N.
- Page 7 4. Maintenance and Service If required, clean with a soft damp cloth and mild detergent. Do not use abrasives or solvents. With the exception of the batteries there are no user serviceable parts. Contact Socket & See for parts and technical assistance. Socket &...
- Page 8 Specification Continued Power Supply 4 x AA LR6 Batteries Battery Life 50 Hours CAT III 500V Overvoltage Category CAT IV 300V Operating Temperature 0 - 40°C Storage Temperature -10 to 60°C Operating Humidity 80% @ 31°C to 50% @ 40°C Safety Compliance BSEN 61010-2-030:2010 EMC Compliance...
