Clarke Air CAM900 Operating & Maintenance Instructions

OPERATION
The fan is operated by the ON/OFF switch located in the handle.
The unit may be used for either extracting dirty air or for supplying fresh air, as
desired. Simply attach the ducting to the appropriate end of the machine, as
shown, secured with the cord attached.
MAINTENANCE
WARNING : Disconnect from mains before attempting any maintenance work.
Periodically clean guards and fan blades by vacuuming or wiping. Remove guard
to gain access to blade.
REPLACE ALL GUARDS BEFORE RE-CONNECTING FAN TO MAINS SUPPLY.
SPECIFICATIONS
Motor ............................................ 230V~ 50Hz 1Ph ............... 230V~ 50Hz 1Ph
Power Rating ................................ 150Watts .......................... 550Watts
Fuse Rating ................................... 5 Amps ............................. 5Amps
Air Flow ......................................... 882 ft
Net Weight ................................... 13kg ................................. 23kg
Part No. ......................................... 3230400 ............................ 3230500
PARTS AND SERVICE CONTACTS
For Spare Parts and Service, please contact your nearest dealer,
or CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: Parts@clarkeinternational.com
3 /min ....................... 2118 ft 3 /min

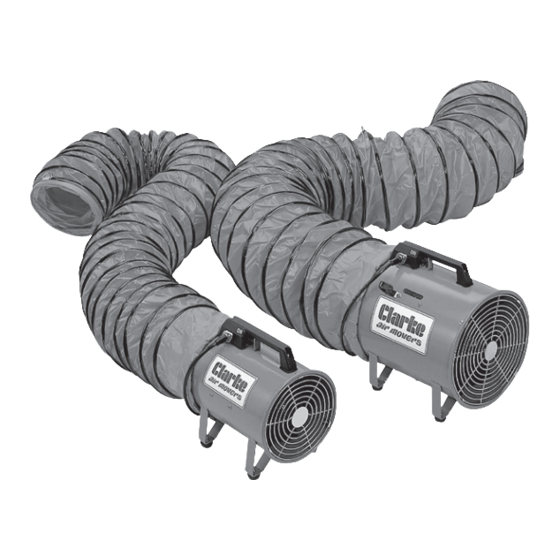

AIR MOVER
AIR MOVER
Model Nos. CAM900 & CAM2200
Part Nos. 3230400 & 3230500
OPERATING & MAINTENANCE
INSTRUCTIONS
0203
