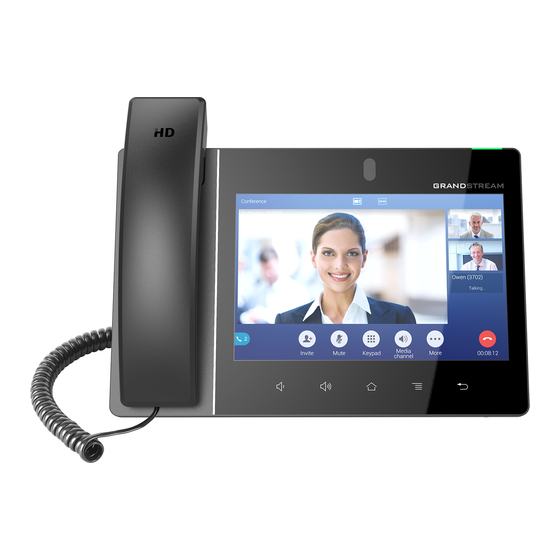

- Page 1 Grandstream Networks, Inc. GXV3370/GXV3380/GXV3350 IP Video Phones for Android Wi-Fi Guide...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ......................4 CONNECT TO WI-FI ....................... 6 Turn on/off Wi-Fi ............................ 6 Connect to Wi-Fi Networks ........................8 Add Wi-Fi Network Manually ....................... 10 Refresh/Scan ............................11 Configuring Wi-Fi from provisioning ..................... 12 WI-FI SETTINGS......................14 IP Mode .............................. - Page 3 Table of Figures Figure 1: Turn On/Off Wi-Fi From Status Bar ....................6 Figure 2: Turn On/Off Wi-Fi From Settings ....................7 Figure 3: Turn On/Off Wi-Fi From Web UI ....................7 Figure 4: GXV33XX Wi-Fi Settings ....................... 8 Figure 5: GXV33XX Connect to Wi-Fi ......................9 Figure 6: GXV33XX Connect to Wi-Fi via Web UI ..................
-
Page 4: Introduction
INTRODUCTION The GXV3370/GXV3350/GXV3380 have integrated Dual-Band (2.4GHz & 5GHz) Wi-Fi that supports 802.11a/b/g/n, and 802.11a/b/g/n/ac (GXV3380 only) for network flexibility. This User Guide describes how to use the Wi-Fi function to connect the GXV33XX into your local network. To learn more about GXV33XX's basic and advanced features. - Page 5 P a g e GXV33XX Wi-Fi Guide...
-
Page 6: Connect To Wi-Fi
CONNECT TO WI-FI Wi-Fi is supported and built-in on all GXV33XX models. GXV3370/GXV3350/GXV3380 can be connected to network if Wi-Fi is available within the area. By default, Wi-Fi is turned off on the GXV33XX. Users can turn on Wi-Fi from web UI, LCD settings→System Settings or provisioning. Turn on/off Wi-Fi •... -
Page 7: Figure 2: Turn On/Off Wi-Fi From Settings
Figure 2: Turn On/Off Wi-Fi From Settings • To turn on/off Wi-Fi from web UI 1. Log in the GXV33XX web UI. 2. Go to Network Settings →Wi-Fi Settings: Wi-Fi Basics. 3. Click on to enable or disable “Wi-Fi Function". Figure 3: Turn On/Off Wi-Fi From Web UI P a g e GXV33XX Wi-Fi Guide... -
Page 8: Connect To Wi-Fi Networks
Connect to Wi-Fi Networks • Connect to Wi-Fi networks from LCD 1. Once Wi-Fi is turned on, GXV33XX will automatically start the scanning within the range. 2. On GXV33XX LCD Menu, Select Settings 3. Select Wi-Fi 4. A list of nearby available Wi-Fi SSIDs will be displayed under “Available WLAN list” Figure 4: GXV33XX Wi-Fi Settings 5. -
Page 9: Figure 5: Gxv33Xx Connect To Wi-Fi
Figure 5: GXV33XX Connect to Wi-Fi 6. The phone will start connecting to the Wi-Fi. The status bar will show Wi-Fi signal strength. 7. Once authenticated, the phone will obtain IP address via DHCP and connect to the Wi-Fi network. 8. -
Page 10: Add Wi-Fi Network Manually
Figure 6: GXV33XX Connect to Wi-Fi via Web UI Add Wi-Fi Network Manually If the Wi-Fi network SSID doesn't show up in the scan list, or users would like to set up advanced options for the Wi-Fi network, users could add the Wi-Fi network manually under "Wi-Fi Settings". 1. -
Page 11: Refresh/Scan
Figure 7: GXV33XX Add Wi-Fi Network Manually Refresh/Scan Under "Wi-Fi Settings" menu, press MENU button and select "Refresh" to intitiate a scan for the Wi-Fi networks within the range. The available Wi-Fi networks will be updated and displayed there. Figure 8: GXV33XX Wi-Fi Settings - Refresh P a g e GXV33XX Wi-Fi Guide... -
Page 12: Configuring Wi-Fi From Provisioning
Users can also initiate a Scan for the available nearby Wi-Fi networks via the Web UI by accessing “Network Settings” → “Wi-Fi Settings” → “Wi-Fi Basics” Figure 9: GXV33XX Scan Available Wi-Fi from Web UI Configuring Wi-Fi from provisioning Users could configure the P value in the config file to provision the phone to connect to Wi-Fi network. The following are the P values for Wi-Fi configuration. -
Page 13: Table 2: Gxv33Xx Wi-Fi Provisioning With Alias
Table 2: GXV33XX Wi-Fi Provisioning with Alias Option Alias Example <item name="wifi.enable">No</item> No→ disabled, Wi-Fi Function wifi.enable Yes → Enabled ESSID wifi.essidname <item name="wifi.essidname">OfficeWiFi1</item> Password wifi.essidpassword <item name="wifi.essidpassword">123456</item> For more details about the GXV33XX configuration template and provisioning, please refer to the configuration tool, templates and documentation in the following link: http://www.grandstream.com/support/tools P a g e... -
Page 14: Wi-Fi Settings
WI-FI SETTINGS IP Mode Under “Wi-Fi Settings" LCD menu, users can select which Internet protocol to use. Figure 10: GXV33XX Wi-Fi Settings - IP Mode Note: When both IPv4 and IPv6 are enabled, phone attempts to use preferred protocol first and switches to the other choice if it fails. -
Page 15: Figure 11: Gxv33Xx - Wi-Fi Band Selection From Lcd
Figure 11: GXV33XX - Wi-Fi Band selection from LCD • Wi-Fi Band selection from Web UI Log in the GXV33XX web UI. Go to “Network Settings”→ Wi-Fi Settings”→ Wi-Fi Basics” Figure 12: GXV33XX Wi-Fi Band Selection from Web UI Note: The default setting is “2.4G & 5G”. P a g e GXV33XX Wi-Fi Guide... -
Page 16: Advanced Settings
Advanced Settings Under "Wi-Fi Settings" menu, press MENU button and select "Advanced". Users will see the following advanced settings related to Wi-Fi connections. Figure 13: GXV33XX Wi-Fi Settings – Advanced • Install Certificates. This is to install certificates (previously download/uploaded to the phone) when connecting to Wi-Fi network requesting SSL certificate. -
Page 17: Portable Hotspot
PORTABLE HOTSPOT The GXV33XX can be served as a Wi-Fi access point for other devices to connect to wireless network if hotspot is turned on. 1. On the GXV33XX LCD Menu, navigate to "Settings" 2. Select "Tethering & Portable Hotspot". 3.
