METAL WORKING - CIRCULAR SAWS
METAL WORKING - CIRCULAR SAWS
HU 250 CS
HU 250 CS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HU 250 CS and is the answer not in the manual?

Questions and answers

Related Manuals for Huvema HU 250 CS

Summary of Contents for Huvema HU 250 CS

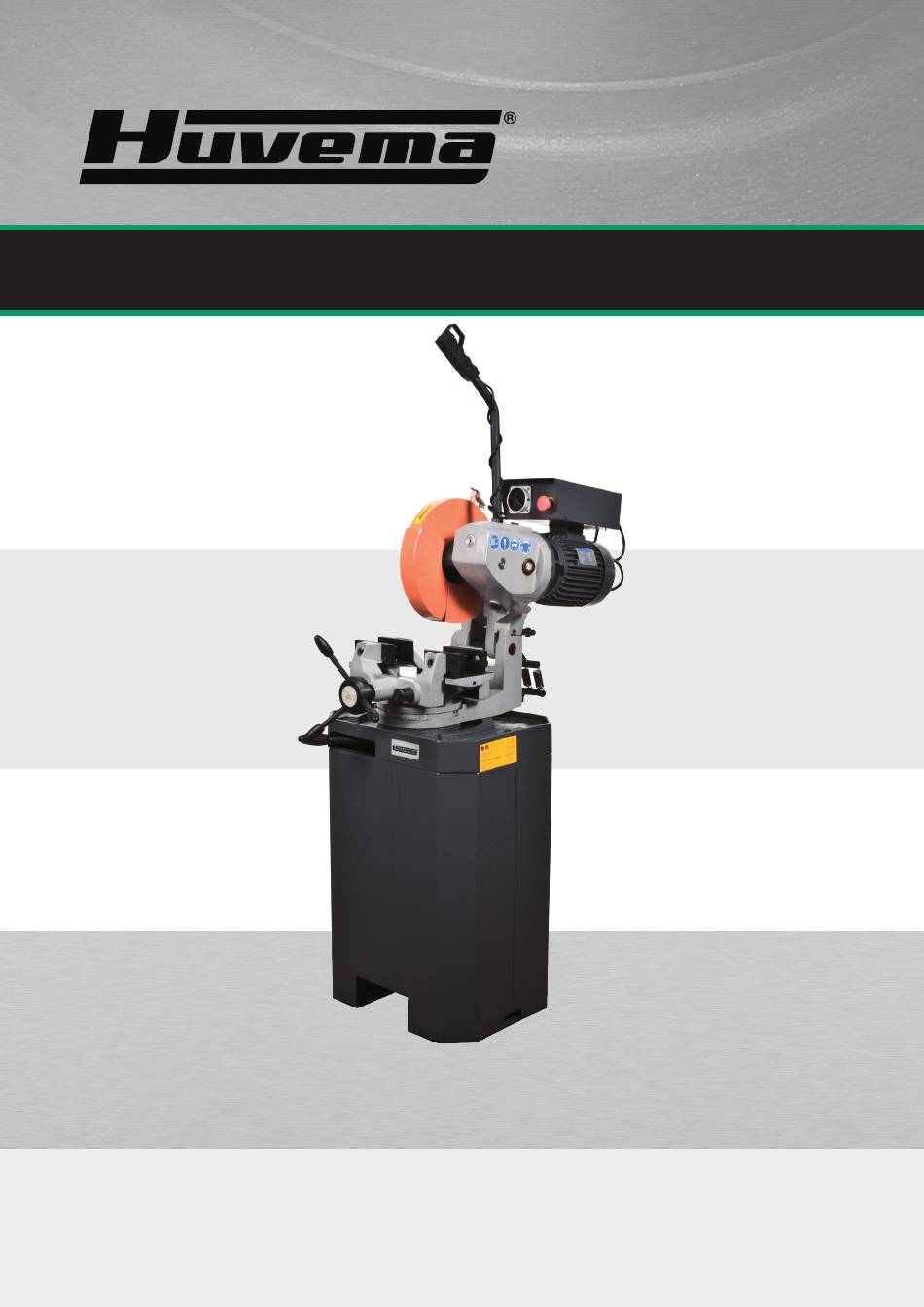

  • Page 1 METAL WORKING - CIRCULAR SAWS METAL WORKING - CIRCULAR SAWS HU 250 CS HU 250 CS...

  • Page 2: Table Of Contents

    able of conTenTs General safety rules for all machines Technical data The HU 250CS speed comprises as follows: Survey and sketch of dimensions Description of machine Installation Installation and mounting Coolant Electricity Operation Selection of the sawblade Selection of pitch and tooth form Sawing Capacity Installing and replacing the saw blade Saw feed...

  • Page 3: General Safety Rules For All Machines

    Hu 250 cs ircular saw 1. G eneral safeTy rules for all macHines N.B.: Read the instructions carefully in order to avoid any problems. As with all machinery there are certain hazards involved with operation and use of this machine. Using the machine with respect and caution will considerably lessen the possibility op personal injury.

  • Page 4: Technical Data

    ddiTional safeTy rules Always keep in mind that: exceeded all claims relating to the faults concerned will expire. Claims about faults which are not • the machine must be switched off and disconnected from the power supply during maintenance and repairs, externally noticeable are to put in as soon as po ssible, however, not later than two weeks after •...

  • Page 5: Coolant

    • Check on the level gauge of the saw head whether it contains sufficient oil. If necessary fill up (fig. 4.01, see arrow). • Install the cover at the rear of the machine base. • Install the saw blade (see chapter 5.4). 4.2 Coolant 4.2 c oolanT...
  • Page 6 Clearance angle ß and rake angle y of the tooth have been selected correctly in view of the material to be sawn. the Clearance angle ß and rake angle y of the tooth have been selected correctly in view of the principle is as follows.

  • Page 7: Sawing Capacity

    Make sure the saw blade is direction of rotation of the sawblade. Make sure the saw blade is HU 250 CS > speed in position 1: 40 m/min. forget to close the safety guard.

  • Page 8: Mitre-Sawing

    5.8 m iTre sawinG Pull the clamping rod (fig. 5.06B) to the right and turn the sawing unit in the required mitre position. The position can be read out on the scale division (fig 5.06A). Then fasten the clamping rod again. Do not use unnecessary force, a slight pull will su ffice.

  • Page 9: Trouble Shooting

    7. T rouble sHooTinG Trouble Possible cause Remedy Excessive bouncing or breaking of 1. Speed an/or saw feed too high. Use Bewo Oil S the saw 2. Teeth blunt, tooth cavities too small. Have the saw ground and the tooth cavity 3.

  • Page 10: Coolant System

    9. c oolanT sysTem nt drawing escription Q,ty Pos.nr. Description Q,ty Pos.no. Description Q,ty Pos.no. Description Q,ty edestal Sticker Bewo general Pedestal Sticker bewo general Pump set 230/400V 50 over Cover Pump set * 230/400v 50 Hz upport pump crew M6x12 Screw M6x25 Support pump pring washer 6...

  • Page 11: Parts Drawing For Hu250Cs

    10. p Hu250cs arTs drawinG for Parts drawing for HU250CS CHANGES AND T YPING ERRORS RESER VED...

  • Page 12: Parts List For Hu 250Cs

    10.1 p Hu 250cs arTs lisT for No.. Description Model Q’TY No.. Description Model Q’TY Socket screw M8X20 Socket screw M10X30 Pulling arm Socket screw M10X16 Socket screw M6X16 Vice table Spring ring Threaded shaft Safety guard Guiding shaft Socket screw M6X25 Vice plate Washer...
  • Page 13 ELECTRO BOX Quantity per Electro box Quantity per machine machine Pos.no. Description Art.no. Pos.nr. Description Art.nr. HU 250CS Switch box 60.0579 Switch box 60.0579 Cover 50.0955 Cover 50.0955 Sealing tape 21.9950 Sealing tape 21.9950 Screw M4x10 Screw M4x10 44.1000 44.1000 Screw M5x12 44.1583 Screw M5x12...
  • Page 14 CHANGES AND T YPING ERRORS RESER VED CHANGES AND T YPING ERRORS RESER VED...
  • Page 15 CHANGES AND T YPING ERRORS RESER VED...
  • Page 16 All rights reserved. No part of this booklet may be reproduced in any form, by print, photoprint, microfilm or any other means without written permission from the publisher. © Huberts bv, Kennedylaan 14, Veghel, the Netherlands. Internet: www.huvema.nl CHANGES AND T YPING ERRORS RESER VED CHANGES AND T YPING ERRORS RESER VED...
  • Page 17 (in accordance with supplement II A of the Machinery Directive) Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466 AA Veghel, the Netherlands, in the capacity of importer, is to be held responsible for declaring that the Huvema machine: HU 250 CS...
  • Page 18 CHANGES AND T YPING ERRORS RESER VED CHANGES AND T YPING ERRORS RESER VED...
  • Page 19 CHANGES AND T YPING ERRORS RESER VED...
  • Page 20 Copyright © Huberts BV Veghel. All rights reserved.
