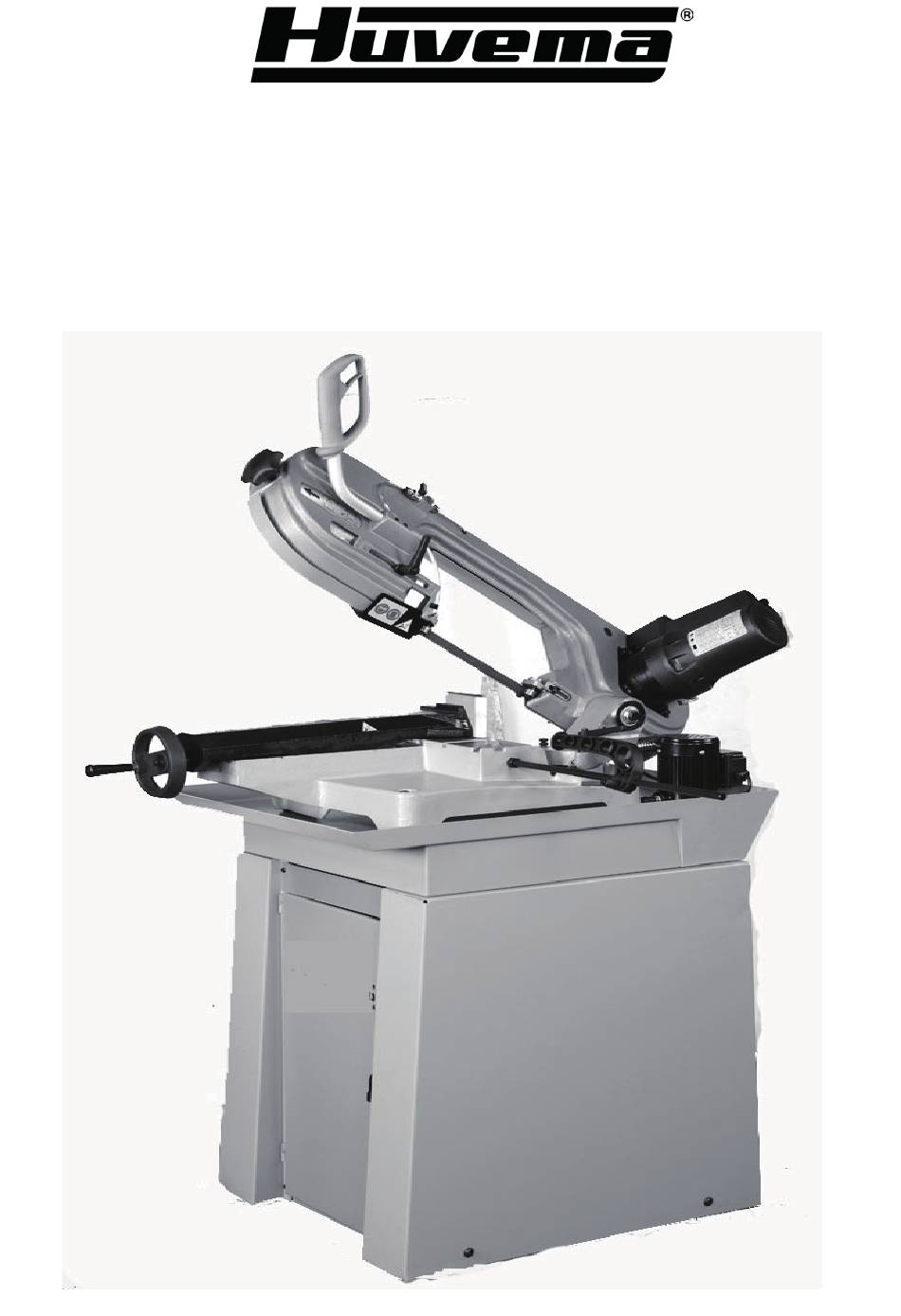

- Page 1 HU 210 SB Metal cutting band saw Instruction manual...
-
Page 2: Safety Rules
P ortabl e band saw SAFETY RULES 1. KEEP GUARDS IN PLACE and in working order. 2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on. 3. -
Page 3: Grounding Instructions
P ortabl e band saw parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced. 20.DIRECTION OF FEED. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only. -
Page 4: Running In The Blade
P ortabl e band saw Running in the blade To safe guard the life and quality of a New blade, the first two or three cuts must be made Exerting slight pressure on the piece so that the Cutting time is almost twice the one normally Needed (see cutting table) Correct positioning of the piece in the clamp : Pieces to be cut must always be held firmly in The clamp, directly between the two jaws and... - Page 5 PROFILE Operating button Blade Guide On/off switch Motor Reduction Gear Vice hand-wheel Base Revolving Arm Machine Stand Item Specifications Item Specifications Voltage 230 V Blade size 2035 x 0.9 x 20mm Motor 1650W Bow-Saw Aluminum Cutting Circular bar: 170mm, rectangular Base Aluminum capacity 90 °...
- Page 9 NO Q'ty Description NO Q'ty Description NO Q'ty Description NOQ'ty Description 1 Body frame 2 Block 1 Screw C7 1 Pump 1 BOW SAW PLATE 1 Block blade tension 78 C8 1 Filter 1 Vice 1 ANGLE PLATE 1 Return flywheel 1 Screw 1 Saw blade 1 Nut...
