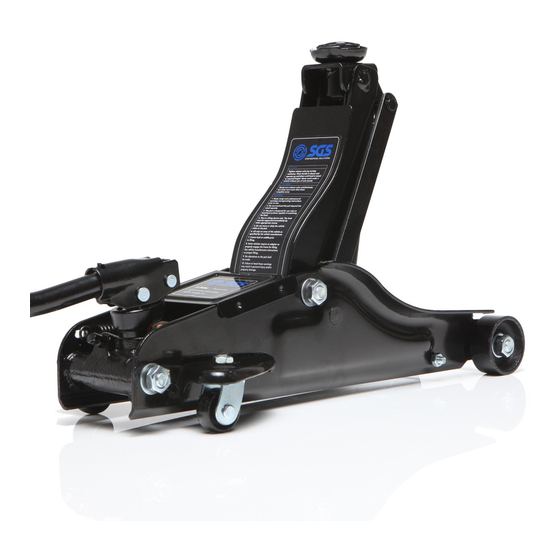

- Page 1 TJL2 LOW PROFILE TROLLEY JACK OWNER’S MANUAL 2 TONNE MAX CAPACITY FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
- Page 2 THIS JACK SHOULD BE INSPECTED IMMEDIATELY IF IT IS BELIEVED TO HAVE BEEN SUBJECTED ONTO THE JACK STANDS. TO AN ABNORMAL LOAD OR SHOCK. OWNER/OPERATORS SHOULD BE AWARE THAT REPAIR OF THIS JACK REQUIRES SPECIALISED EQUIPMENT AND KNOWLEDGE. WWW.SGS-ENGINEERING.COM PAGE 2 PAGE 3...
- Page 3 RAM TO THE LOWEST POSITION. USE FORCE ON THE SADDLE IF NECESSARY. TURN THE RELEASE VALVE CLOCKWISE TO THE CLOSED POSITION AND CHECK FOR PROPER PUMP ACTION. IT MAY BE NECESSARY TO PERFORM THE ABOVE MORE THAN ONCE TO ENSURE ALL THE TRAPPED AIR IS EVACUATED. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5...
- Page 4 LIFT ONLY ON AREAS AS SPECIFIED BY THE VEHICLE MANUFACTURER. BROKEN RETURN SPRING LIFT ARM LINKAGE BENT OR • ONLY ATTACHMENTS AND/OR ADAPTORS SUPPLIED BY SGS SHALL BE USED. BINDING • NO ALTERATIONS TO THE JACK SHALL BE MADE. JACK FEELS SPONGY WHEN...
- Page 5 ITEM DESCRIPTION MAIN PISTON PISTON HEAD BOWL WASHER O RING CYLINDER BOWL WASHER OIL FILTER NET SPHERE MAIN PISTON BASE SPHERE O RING VALVE PISTON WASHER PUMP PISTON HANDLE SOCKET PRESSURE BOLT O RING SPRING SPRING BASE SPHERE O RING SEAL RESERVOIR HOLE PLUG...
