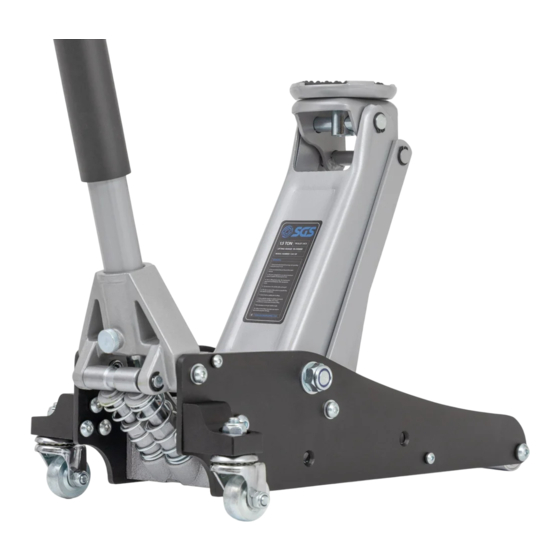

- Page 1 TJA1.5R ALUMINIUM TROLLEY JACK OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Specification
SPECIFICATION Maximum weight capacity: 1.5 Tonne Lifting range: 90-358mm Product code: TJA1.5R Always use axle stands. WARNING Use wheel chocks. Read and understand instructions before use. Do not exceed the jacks max lift height. Always wear eye/face and hand protection. - Page 3 You can test this under load if you wish. Owner/operators should be aware that repair of this trolley jack requires specialist attention in the form of suitable repair equip- ment and knowledge. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5...
-
Page 4: Raising The Vehicle
7. Do not attempt to place jack stands simultaneously under both ends of a vehicle or along one side of a vehicle. 8. Turn the handle slowly counter clockwise to lower the vehicle onto the jack stands. WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7... -
Page 5: Troubleshooting
WARRANTY This SGS product is covered by a 24 month warranty from the initial date of purchase. This is a domestic warranty provided directly by SGS Engineering. Please keep a recipt of your pucrchase as this may be required as proof of purchase. - Page 6 TECHNICAL COMPONENTS TABLE TECHNICAL COMPONENTS (EXPLODED VIEW) Name Part No Front Wheels 901188 Saddle 901264 Rear Casters Assembly 901821 Power Unit 902478 Release Valve Assembly 902479 Handle Socket 902480 Handle Assembly 902481 WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11...
- Page 7 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained SGS Engineering (UK) Ltd MANUFACTURER’S NAME: Hydraulic Trolley Jack TYPE OF EQUIPMENT: TJA1.5R PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
