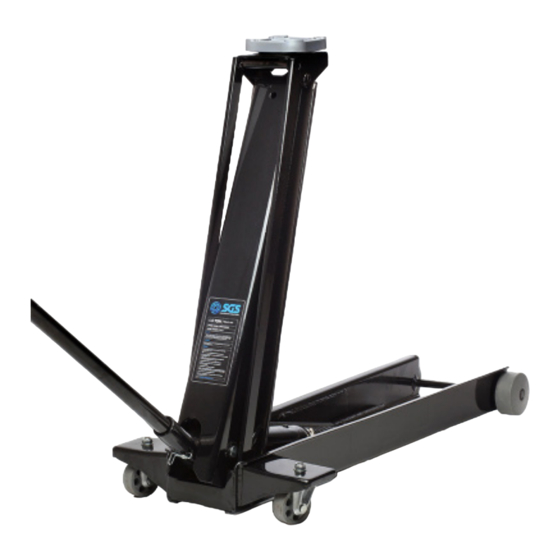

- Page 1 TJH1.5 LONG REACH TROLLEY JACK OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Specification
SPECIFICATION Part Number: TJH1.5 Product Weight: 50kg Brand: SGS Engineering Capacity: 1.5 Ton A - Closed Height: 135mm D - Fully Extended: 855mm E - Base Width: 450mm F - Base Length: 1050mm H - Height 180mm Saddle Diameter: 105mm WWW.SGS-ENGINEERING.COM... - Page 3 SAFETY 1. Always read and ensure you fully understand the following precau- tions and the hazards associated with this product. 2. Only use this jack for its manufactured purpose. 3. Never make any modifications to this product. If experiencing dif- ficulty of any kind contact us.
- Page 4 Should any appear, have the jack inspected and repaired by con- tacting us at SGS Engineering. Ensure the vehicle to be raised is chocked and standing on firm, level ground before manoeuvring the trolley jack so that the saddle is directly underneath the lifting point.
-
Page 5: Operation
OPERATION USING THE TROLLEY JACK 1. Turn the handle fully clockwise to close the release valve, and pump the handle to raise the saddle until it reaches the vehicle lifting point. 2. Ensure that the saddle is directly below the lifting point and there are no obstructions to prevent a proper lift. -
Page 6: Maintenance
2. Remove the oil filler plug on the top of the ram assembly. A flat-bladed screwdriver will be required. NOTE: The oil should be almost level with the bottom of the oil filler hole. Oil replacement can be sought by contacting us at SGS Engineering WWW.SGS-ENGINEERING.COM PAGE 6... -
Page 7: Troubleshooting Table
• O-rings worn the oil plug • Pump handle to purge air from system • Return to SGS Engi- neering for repair Trolley jack will not • Release valve not • Check valve is closing hold the weight of... - Page 8 Visually inspect for oil leaks (only a slight oil seepage is permissible). If a leak is found, take the jack out of service and consult with SGS Engineering. Annually. Check the ram oil level as follows: 1.
-
Page 9: Warranty
WARRANTY This SGS product is covered by a 24 month warranty from the initial date of purchase. This is a domestic warranty provided directly by SGS Engineering. Please keep a recipt of your pucrchase as this may be required as proof of purchase. - Page 10 SGS Engineering is committed to designing, manufac- turing, and marketing products that meet or exceed the needs of the customers we serve. SGS Engineering can supply a letter of incorporation or a declaration of conformity and ce marking for products that conform with European community directives.
- Page 11 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Hydraulic Trolley Jack TYPE OF EQUIPMENT: TJH1.5 PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
