Summary of Contents for SGS BJ2
- Page 1 PROFESSIONAL BOTTLE JACK OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Specification

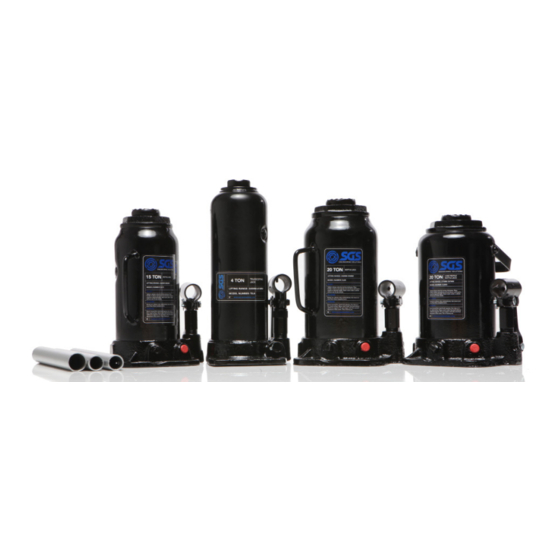

50 TON BJ2D 2 TON BJ5D 5 TON BJ8D 8 TON BJ10D 10 TON BJ15D 15 TON BJ20D 20 TON BJ30D 32 TON TBJ4 4 TON TBJ5 5 TON TBJ10 10 TON TBJ10L 10 TON TBJ12 12 TON WWW.SGS-ENGINEERING.COM PAGE 2... -
Page 3: Operation
INSPECTION BEFORE EACH USE A VISUAL INSPECTION SHALL BE MADE FOR ABNORMAL CONDITIONS SUCH AS CRACKED WELDS, DAMAGED, BENT, WORN, LOOSE OR MISSING PARTS. THIS JACK SHOULD BE INSPECTED IMMEDIATELY IF IT IS BELIEVED TO HAVE BEEN SUBJECTED TO AN ABNORMAL LOAD OR SHOCK. -
Page 4: Maintenance
CIALISED EQUIPMENT AND KNOWLEDGE. ONLY FACTORY AUTHORISED PARTS, LABELS AND DECALS SHALL BE USED ON THIS EQUIPMENT. AN ANNUAL INSPECTION OF THIS JACK BY A SGS REPAIR CENTRE IS RECOMMENDED TO ENSURE THE JACK MAINTAINS AN OPTIMUM OPERATING CONDITION. WWW.SGS-ENGINEERING.COM... - Page 5 CHECK THE OIL LEVEL (FIG 4) TURN THE RELEASE VALVE ANTI CLOCKWISE TO ALLOW THE RAM TO FULLY RETRACT. IT MAY BE NECESSARY TO APPLY FORCE TO THE SADDLE TO LOWER THE RAM. REMOVE THE INSPECTION PLATE. WITH THE JACK IN THE LEVEL POSITION REMOVE THE OIL FILL PLUG. STAND THE JACK IN THE VERTICAL POSITION WITH THE HANDLE SOCKET DOWN.
-
Page 6: Raising A Vehicle
PUMP THE HANDLE TO LIFT THE VEHICLE OFF THE JACK STANDS. REMOVE THE JACK STANDS. DO NOT GET UNDER THE VEHICLE WHILE THE VEHICLE IS BEING LOWERED. TURN THE RELEASE VALVE SLOWLY ANTI CLOCKWISE TO LOWER THE VEHICLE ONTO THE GROUND. WWW.SGS-ENGINEERING.COM PAGE 6... - Page 7 FIG 1 FIG 2 EXTENSION SCREW HANDLE RELEASE VALVE FIG 3 FIG 4 PUMP HANDLE OIL PLUG PUMP OIL LEVEL SAFETY VALVE FILL TO RIM OF OIL PLUG HOLE PAGE 7...
-
Page 8: Troubleshooting
DO NOT DOLLY OR MOVE THE VEHICLE WHILE IT IS ON THE JACK. • LIFT ONLY ON AREAS AS SPECIFIED BY THE VEHICLE MANUFACTURER. • ONLY ATTACHMENTS AND/OR ADAPTORS SUPPLIED BY SGS SHALL BE USED. • NO ALTERATIONS TO THE JACK SHALL BE MADE. •... - Page 9 This is an important document and should be retained MANUFACTURER’S NAME: SGS Engineering (UK) Ltd Bottle Jack TYPE OF EQUIPMENT: BJ2, BJ2S, BJ5, BJ5S, BJ8, BJ10, PART NUMBERS: BJ12, BJ15, BJ20, BJ32, BJ50, BJ2D, BJ5D, BJ8D, BJ10D, BJ15D, BJ20D, BJ30D, TBJ4, TBJ5, TBJ10, TBJ10L,...
