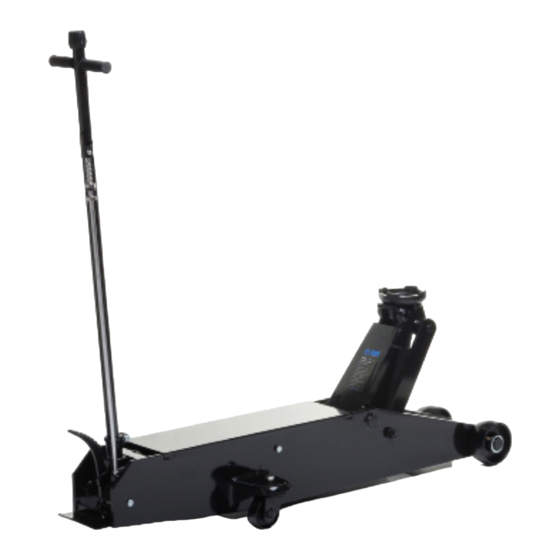

- Page 1 TJH10 PROFESSIONAL TROLLEY JACK OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Specification
Saddle diameter: 150mm Product weight: 146kg Product code: TJH10 WARNINGS Read and understand all instructions and warnings prior to use. Never overload beyond its capacity (10 tons/10000kg). Ensure the vehicle handbrake is engaged, and in first gear (or ‘park’ for automatic vehicles) before lifting it with this product. - Page 3 No after market alterations must be made to this jack. • Only designated attachments and adaptors supplied by SGS Engineering should be used. • Ensure minimum distance of 50cm between static objects such as doors, walls etc to allow for vehicle tilting.
-
Page 4: Inspection Before Each Use
This trolley jack should be taken out of service if it is believed to have been subjected to an abnormal load or shock. Owner/operators should be aware that repair of this trolley jack requires specialist attention in the form of suitable repair equipment and knowledge. WWW.SGS-ENGINEERING.COM PAGE 4... - Page 5 PURGING YOUR TROLLEY JACK Sometimes during transport and handling, air gets into the hydraulic system causing poor lifting performance. Before the initial operation purge any air from the system by following these steps: 1. Fully opening the release valve (turn the handle knob counter clockwise).
-
Page 6: Raising The Vehicle
2. Pump the handle to lift the vehicle off the jack stands. 3. Remove the jack stands. Do not get under the vehicle while the vehicle is being lowered. 4. Turn the handle knob slowly counter clockwise to lower the vehicle onto the ground. WWW.SGS-ENGINEERING.COM PAGE 6... - Page 7 Visually inspect for oil leaks (only a slight oil seepage is permissible). If a leak is found, take the jack out of service and consult with SGS Engineering. Annually. Check the ram oil level as follows: 1.
-
Page 8: Troubleshooting
(+44) 01332 576 850 and/or internal dam- age- or a broken return spring- or a lift arm linkage bent or binding Jack feels spongy Trolley jack may Purge trapped air when lifting require an air purge WWW.SGS-ENGINEERING.COM PAGE 8... -
Page 9: Warranty
WARRANTY This SGS product is covered by a 24 month warranty from the initial date of purchase. This is a domestic warranty provided directly by SGS Engineering. Please keep a recipt of your pucrchase as this may be required as proof of purchase. - Page 10 1-23 SPRING 2-23 SAFETY VALVE SCREW 1-24 SNAP RING 2-24 SEALS 1-25 SHAFT 2-25 1-26 COVER BOARD 2-26 RELEASE VALVE ROD 1-27 LOCK WASHER 2-27 CYLINDER PUMP PLUNGER 1-28 SNAP RING 2-28 2-29 O-RING 2-30 NYLON GASKET WWW.SGS-ENGINEERING.COM PAGE 10...
- Page 11 TECHNICAL COMPONENTS (EXPLODED VIEW) PAGE 11...
- Page 12 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained SGS Engineering (UK) Ltd MANUFACTURER’S NAME: Hydraulic Trolley Jack TYPE OF EQUIPMENT: TJH10 PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
