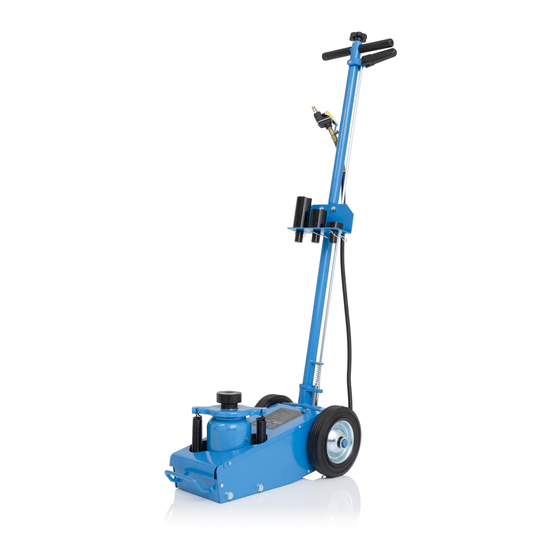

- Page 1 TJH22 PROFESSIONAL PNEUMATIC JACK OWNER’S MANUAL FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS CAREFULLY AND RETAIN THEM FOR FUTURE USE.
-
Page 2: Specification
WARNING SPECIFICATION Maximum weight capacity: 22 Tonne Product code: TJH22 Air Pressure 100 - 200 PSI Always use axle stands. WARNING Use wheel chocks. Read and understand instructions before use. Do not exceed the jacks max lift height. Always wear eye/face and hand protection. -
Page 3: Inspection Before Each Use
3. Fill with high quality hydraulic jack oil to the lower rim of the fill hole. 4. Purge air from the system as above. 5. Top off with more hydraulic oil and replace the filler plug. WWW.SGS-ENGINEERING.COM PAGE 4 PAGE 5... - Page 4 Put height adjustment Saddle Adapters (41– 43) into the Adapter Bolts (39) and Nuts (23). Holder (40) and lock each with an R-Pin (44). Tighten Nuts to secure Adapter Holder to Handle. Put the Handle Assembly into Handle Socket and secure with Bolt (6). WWW.SGS-ENGINEERING.COM PAGE 6 PAGE 7...
-
Page 5: Operation
2. Pump the handle to lift the vehicle off the jack stands. use. 3. Remove the jack stands. Do not get under the vehicle while the vehicle is being lowered. 4. Turn the handle knob slowly counter clockwise to lower the vehicle onto the ground. WWW.SGS-ENGINEERING.COM PAGE 8 PAGE 9... -
Page 6: Troubleshooting
Coupler and Plug Provides quick connection and release Leader Hose (optional) Increases coupler life Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece Air Adjusting Valve (optional) For fine tuning airflow at tool WWW.SGS-ENGINEERING.COM PAGE 10 PAGE 11... - Page 7 Adapter Holder 902393 Lower Handle 902371 Saddle Adapter A 902394 Screw 902372 Saddle Adapter B 902395 Handle Connector 902373 Saddle Adapter C 902396 Slotted Pin 902374 R-Pin 902397 R-Pin 902375 Saddle Adapter D 902398 902376 WWW.SGS-ENGINEERING.COM PAGE 12 PAGE 13...
- Page 8 Release Rod 902409 Top Nut 902427 O-ring 902410 O-ring 902428 Ball 902411 Spring 902429 Spring 902412 Spring plate 902430 Screw 902413 Screw 902431 Bolt 902414 Spring Washer 902432 Nylon Ring 902415 Bracket 902433 Oil Screen 902416 WWW.SGS-ENGINEERING.COM PAGE 14 PAGE 15...
- Page 9 SGS Engineering (UK) Ltd West Side Park Raynesway Derby, DE21 7AZ EC Declaration of Conformity This is an important document and should be retained SGS Engineering (UK) Ltd MANUFACTURER’S NAME: Pneumatic Trolley Jack TYPE OF EQUIPMENT: TJH22 PART NUMBER: APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:...
