I.

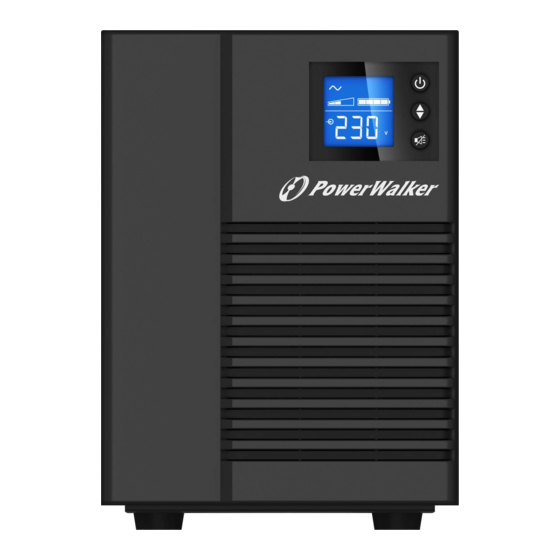

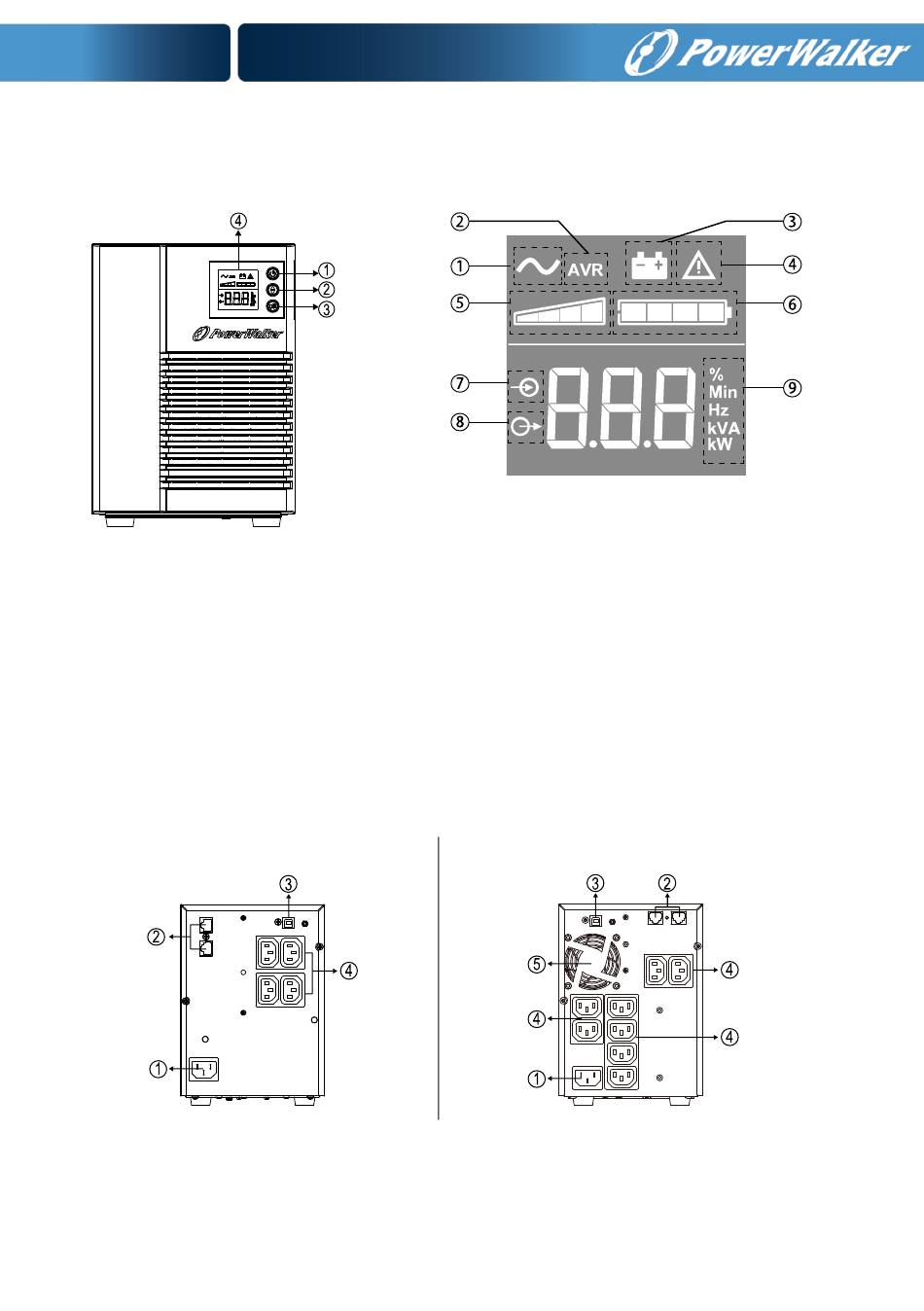

Front Panel:
1.
ON/OFF button
2.
Scroll down button
3.
Mute button
4.
LCD display
II.
Rear Panel:
VI 500T/750T
PowerWalker VI 500-1500 THID
Quick Guide
1.
2.
3.
4.
5.
6.
7.
8.
9.
UPS ON
AVR mode
Battery mode
Internal fault
Output load level
Battery level
Input measurements
Output measurements
Measuring unit
VI 1000T/1500T
Advertisement
Table of Contents
Related Manuals for PowerWalker VI THID Series
Summary of Contents for PowerWalker VI THID Series
- Page 1 ENGLISH PowerWalker VI 500-1500 THID Quick Guide Front Panel: ON/OFF button UPS ON Scroll down button AVR mode Mute button Battery mode LCD display Internal fault Output load level Battery level Input measurements Output measurements Measuring unit Rear Panel: VI 500T/750T...
- Page 2 ENGLISH AC input RJ11/RJ45 LAN/Modem/phone line protection USB port IEC outlet III. UPS setting through the LCD: Hold scroll down button to select menu Select value and wait 10s until it saves the setting and returns to main screen. LCD will shut off if there is no activity for 3 minutes.
- Page 3 C - Remove the metal protection cover in front D - Pull the plastic tab to remove of the battery (one screw). the battery block and replace it. Technical Specification Model VI THID Series INPUT Voltage 220/230/240 VAC Voltage Range 184~276 VAC...
- Page 4 ENGLISH Outlet and 4 * IEC 320 C13 outlets, USB port, 8 * IEC 320 C13 outlets, USB port, Connector RJ11/RJ45 Surge Protection RJ11/RJ45 Surge Protection Dimension 150 mmx 209mm x 240mm 150mm x 209mm x 340mm (WxHxD) Net weight 6.3kg 6.8kg 10.5kg...
