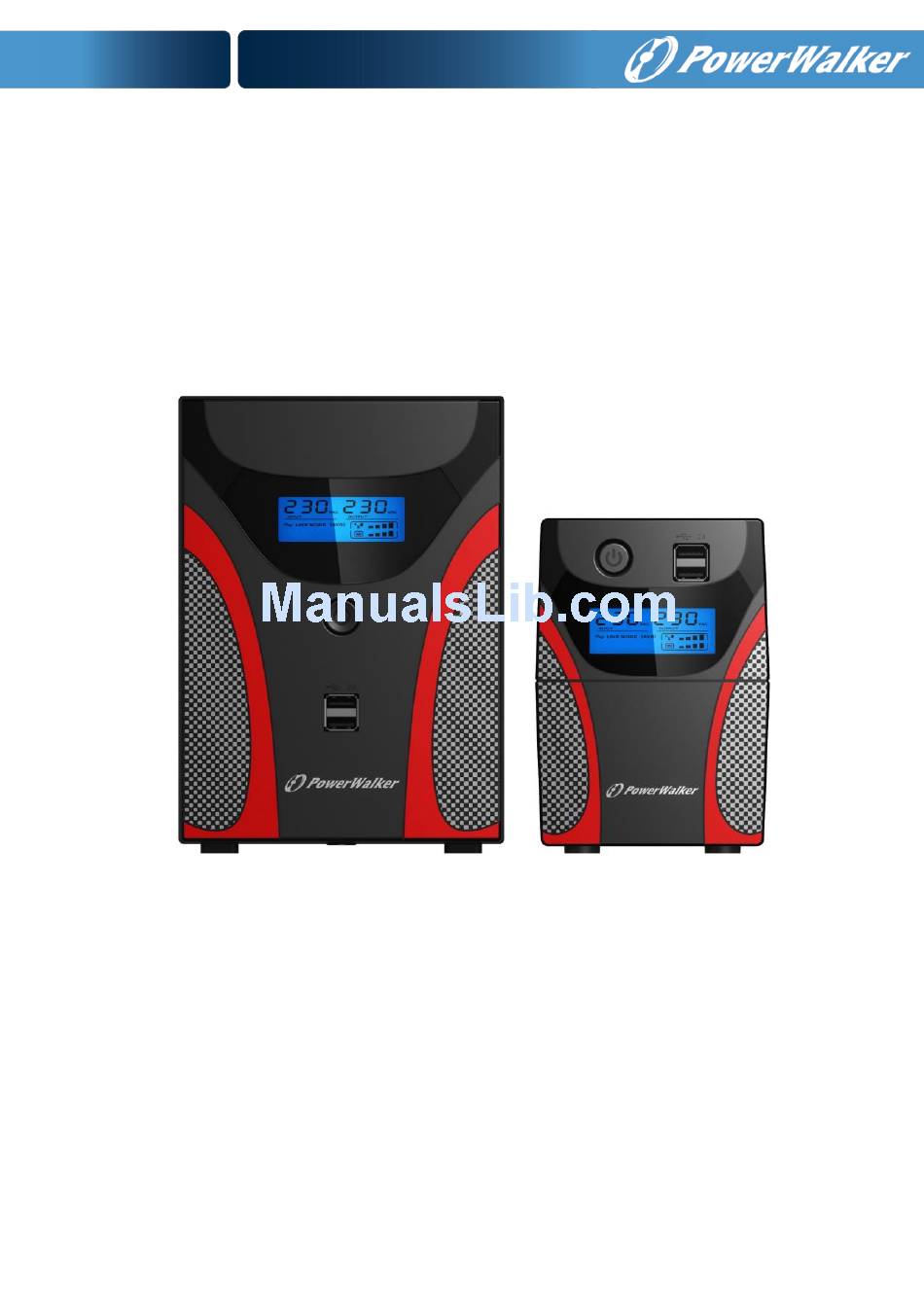

  • Page 1 Line Interactive UPS VI 650/850/1200/1600/2200 GX Quick Start Guide...

  • Page 2: Table Of Contents

    Please follow the instructions when installing the software. You can download the software, manual and short reference manual at the following site: http://powerwalker.com Problem solving: Please check the chapter in your manual (hardware and software) on problem solving. If this not solves your problem please contact our support at http://support.powerwalker.com...

  • Page 3: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS  This product is designed for home and office usage and it is not recommended for any medical equipment, life-supporting system and other specific important equipment.  Do not plug appliances such as hair dryers, microwave ovens or vacuum cleaners to UPS. ...
  • Page 4 o Use tools with insulated handles and wear rubber gloves and boots. o Do not lay tools or metal parts on top of batteries. o Disconnect charging source prior connecting or disconnecting batteries terminals.  When replacing batteries, replace with the same type and number of the sealed lead-acid batteries.

  • Page 5: Introduction

    2. Introduction VI GX series is an intelligent and compact line interactive UPS (Uninterruptable Power Supply) which is designed to protect your personal computer or sensitive electronic equipments from all forms of power interference, including complete power failures. It is equipped with many features that allow any attached equipment to operate longer and more reliability.

  • Page 6: Product Overview

    5. Product Overview 5.1 Front Panel 400VA~850VA 1200VA & 1600VA & 2200VA 4.1.1 Display When in AVR mode, it will When in normal mode, it will When LCD starts to work, it will display as below. And the mark display as below. display all information for 3 seconds.

  • Page 7: Back Panel

    5.2 Back Panel: 650VA/850VA IEC Rear Panel 650VA/ 850VA Schuko Rear Panel 650VA/ 850VA FR Rear Panel 1200VA IEC Rear Panel 1200VA Schuko Rear Panel 1200VA FR Rear Panel 1600VA/2200VA IEC Rear Panel 1600VA/2200VA Schuko Rear Panel...

  • Page 8: Installation And Initial Startup

    1600VA/2200VA FR Rear Panel 6. Installation and Initial Startup Before installation, please inspect the unit. The unit is prepared without any falling objects or physical dmanage. I: Placement & Storage Conditions Install the UPS in a protected area that is free of excessive dust and has adequate air flow around the unit, and is free from excessive dust, corrosive fumes and conductive contaminants.

  • Page 9: Audio Indicator

    IV: Connect LAN cable, Modem line for Surge Protection Connect for example a single modem line into surge-protected outlet on the back panel of the UPS unit. Connect from another outlet to the computer with another line cable. V: Connect USB Cable To monitor the UPS status, such as unattended UPS shutdown and start-up, by using bundled software, please connect the UPS and PC with USB cable included.

  • Page 10: Smart Battery Function

     You can schedule UPS shutdown/start-up and monitor UPS status through PC.  Detail instructions please refer to the e-manual in the software. Check http://winpower.powerwalker.com to get the latest version of monitoring software. 9. Smart Battery function  When UPS connect windows PC with USB cable, it will show a battery icon located in the system tray, near the clock.

  • Page 11: Trouble Shooting

     In order to have more detail information and advantage functions by software; Winpower software is available for further application. 10. Trouble Shooting Symptom Possible Cause Remedy No LED display on the 1. Battery weak. 1. Charge battery up to 8 hours. front panel.

  • Page 12: Specifications

    11. Specifications Model VI 650 GX VI 850 GX VI 1200 GX VI 1600 GX VI 2200 GX CAPACITY 650VA/360W 850VA/480W 1200VA/720W 1600VA/960W 2200VA/1200W INPUT Voltage 230 VAC Voltage Range 170~280 VAC OUTPUT Voltage 230 VAC Voltage Regulation ± 10% (Battery mode)
