HORNER X OCS Series Manual

MODEL A BUILT-IN I/O: 12 DIGITAL INPUTS, 12 DIGITAL OUTPUTS, 4 ANALOG INPUTS, 2 ANALOG OUTPUTS
MODEL R BUILT-IN I/O: 12 DIGITAL INPUTS, 6 RELAY OUTPUTS, 2 PWM OUTPUTS, 4 ANALOG INPUTS, 2 ANALOG OUTPUTS

1 TECHNICAL SPECIFICATIONS

1.1 General

Primary Pwr. Range 24VDC +/- 20%
Typical power-back-
64mA @ 24V (1.53W)
light 100%
Power Backlight Off 15mA @ 24V (0.36W)
30A for < 1ms
Inrush Current
Battery backed;
Real Time Clock
lithium coin cell CR2450
Clock Accuracy +/- 90 Secs/Month
Relative Humidity 5 to 95% Non-condensing
Operating Temp. -10°C to +60°C
Storage Temp. -20°C to +70°C
Weight 0.75 lb/ 340g
Mounting Clips 4 composite type
Housing Material Polycarbonate, UL rated
Panel Seal Silicone rubber
100% recyclable
Packaging
paper fiber materials
Controller,
3 x I/0 connectors,
Included in Box 4 x mounting clips,
1 x power connector,
Quick Reference Guide

1.5 User Interface

Display 2.2" Monochrome LCD
Resolution 128 x 64 pixels
Backlight LED
Backlight Lifetime 50,000 hrs
Software
Backlight Control
controlled (ON/OFF)
User-Programmable
250
Screens/Pages
No. of Objects/Screens 15
Screen Memory 256kB
Membrane type switches
Keypad
w/metal dome
Tactile Feedback Yes
4 Soft keys + 16
Number of Keys
numeric/function keys
Indianapolis, USA | Cork, Ireland | Calgary, Canada | Bangalore, India | Oakleigh, Australia | Tianjin, China | Esteio, Brazil
Please visit our website for a complete listing and to learn more about certified Horner Automation products.
This document is the property of Horner Automation Group, and is subject to change.

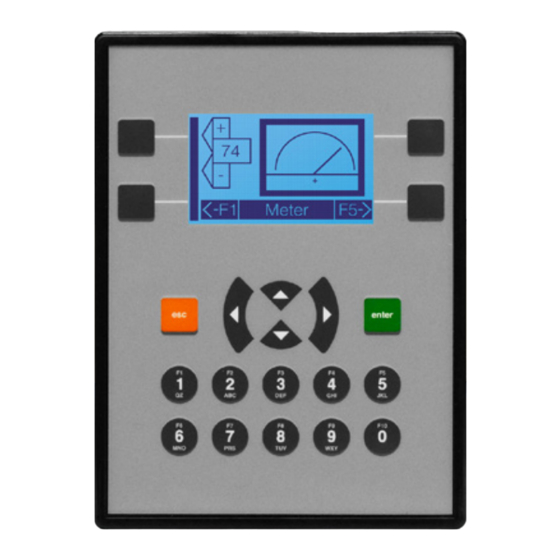

X OCS MODEL: HE-X2

1.2 Connectivity

Serial Ports 1 x RS232, 1 x RS485
On-board, software
485 Terminations
controlled
Mini USB Programming Only
CAN Hardware Non-isolated
CAN Port Connector RJ45 (red)
CAN Port Speeds 125kB, 250kB,
Support 500kB, 1MB/sec.
On-board, software
CAN Port Termination
controlled
CAN Protocols CsCAN
microSD, SDHC, SDXC
IN FAT32 format,
Removable Memory In support for 32GB max.
Application Updates,
Datalogging, more.
1.6 Control & Logic
Advanced ladder
Control Language
logic Full IEC 61131-3
Support
languages
Logic Program Size 256kB
Non-Retentive Memory 128kB
Internal Storage
16Mb
Memory
Total Program Memory 2.5Mb
Logic Scan Rate 1.2ms/kB
%I (Digital Inputs) 1024
%Q (Digital Outputs) 1024
%AI (Analog Inputs) 256
%AQ (Analog Outputs) 256
%M (Retentive Bits) 1024
%T (Temporary Bits) 1024
%R (Retentive Registers) 5000
%D (Display bits) 250
%K (Function Keys) 10
%S (System Bit) 16
%SR (System Register) 255
page 1 of 6

1.3 I/O Connections

Removable 3.5mm
Terminal Type
color-coded
Onboard + Remote-
I/O Options SmartMod, SmartRail,
SmartBlock, SmartStix

1.4 Testing

Shock IEC 60068-2-27
Vibration IEC 60068-2-6
UL Environmental Type 1, 4, 4X, 12, 12k &
Ratings 13 for indoor use
USA: https://hornerauto-
mation.com/certifications/
Certifications
Europe: http://www.
(UL/CE)
horner-apg.com/en/support/
certification.aspx

1.7 Inputs/Outputs Model Overview

MODEL R
DC In 12
DC Out 2
Sinking Yes
Sourcing Yes
Relays 6
HS In 4
HS Out 2
mA In 4
mA Out 2
There are four high-speed inputs (I1-I4) of the total DC
Inputs.
There are two high-speed outputs (Q1-Q2) of the total DC
outputs.
Model A DC Outputs are Sourcing.
Model R DC outputs are sinking with integral pull up resis-
tors. Model R also supports sourcing.
technical specifications continued on next page...
12/3/2019 | MAN1131-06-EN
MODEL A
12
12
No
Yes
–
4
2
4
2
