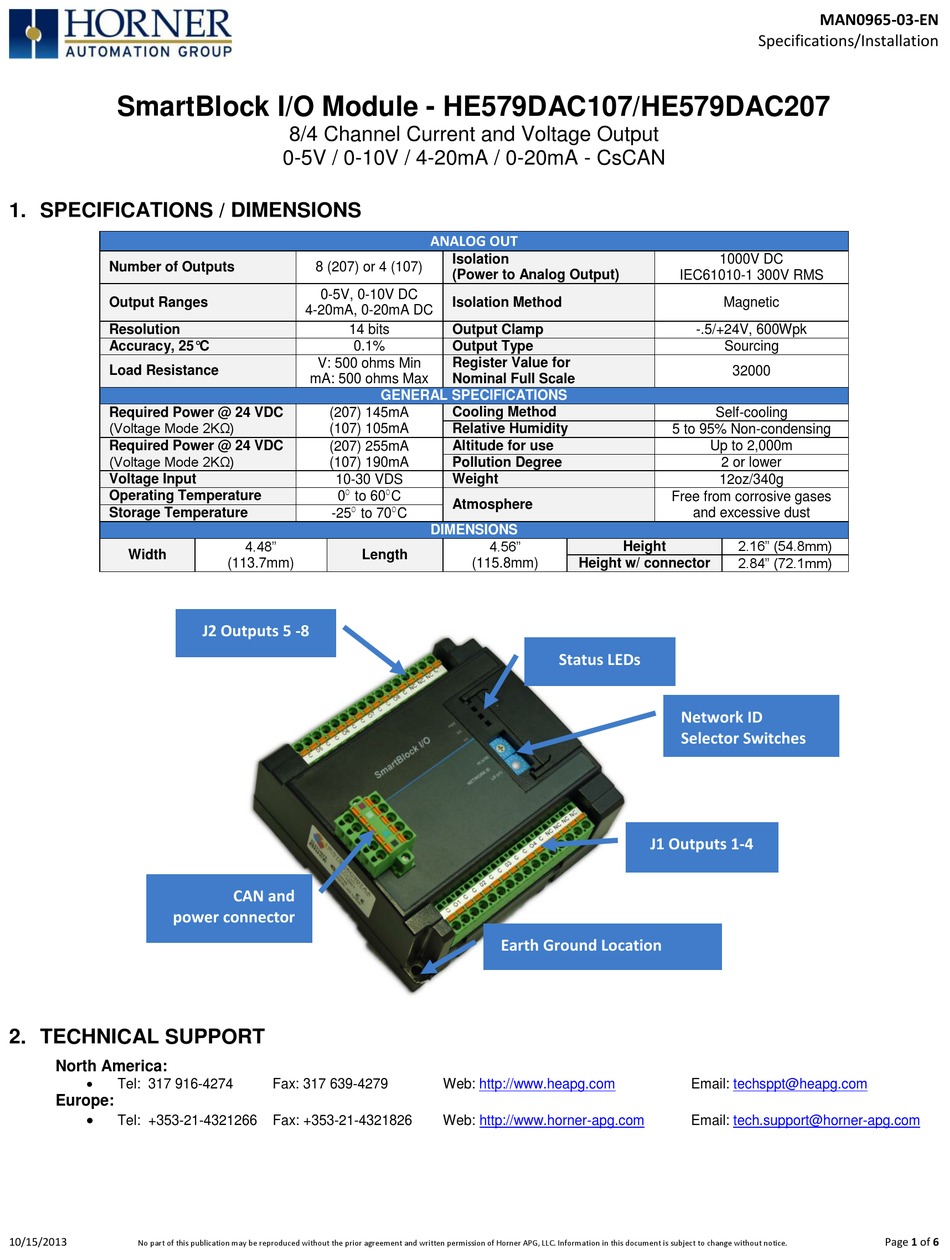

SmartBlock I/O Module - HE579DAC107/HE579DAC207
1. SPECIFICATIONS / DIMENSIONS
Number of Outputs
Output Ranges
Resolution
Accuracy, 25°C
Load Resistance
Required Power @ 24 VDC
(Voltage Mode 2KΩ)
Required Power @ 24 VDC
(Voltage Mode 2KΩ)
Voltage Input
Operating Temperature
Storage Temperature
Width
power connector
2. TECHNICAL SUPPORT
North America:
Tel: 317 916-4274
Europe:
Tel: +353-21-4321266
10/15/2013
No part of this publication may be reproduced without the prior agreement and written permission of Horner APG, LLC. Information in this document is subject to change without notice.
8/4 Channel Current and Voltage Output
0-5V / 0-10V / 4-20mA / 0-20mA - CsCAN
8 (207) or 4 (107)
0-5V, 0-10V DC
4-20mA, 0-20mA DC
14 bits
0.1%
V: 500 ohms Min
mA: 500 ohms Max
GENERAL SPECIFICATIONS
(207) 145mA
(107) 105mA
(207) 255mA
(107) 190mA
10-30 VDS
0⁰ to 60⁰C
-25⁰ to 70⁰C
4.48"
Length
(113.7mm)
J2 Outputs 5 -8
CAN and
Fax: 317 639-4279
Fax: +353-21-4321826
ANALOG OUT
Isolation
(Power to Analog Output)
Isolation Method
Output Clamp
Output Type
Register Value for
Nominal Full Scale
Cooling Method
Relative Humidity
Altitude for use
Pollution Degree
Weight
Atmosphere
DIMENSIONS
4.56"
(115.8mm)
Height w/ connector
Status LEDs
Earth Ground Location
Web:
http://www.heapg.com
Web:
http://www.horner-apg.com
Specifications/Installation
1000V DC
IEC61010-1 300V RMS
Magnetic
-.5/+24V, 600Wpk
Sourcing
32000
Self-cooling
5 to 95% Non-condensing
Up to 2,000m
2 or lower
12oz/340g
Free from corrosive gases
and excessive dust
2.16" (54.8mm)
Height
2.84" (72.1mm)
Network ID
Selector Switches
J1 Outputs 1-4
Email:
techsppt@heapg.com
Email:
tech.support@horner-apg.com
MAN0965-03-EN
