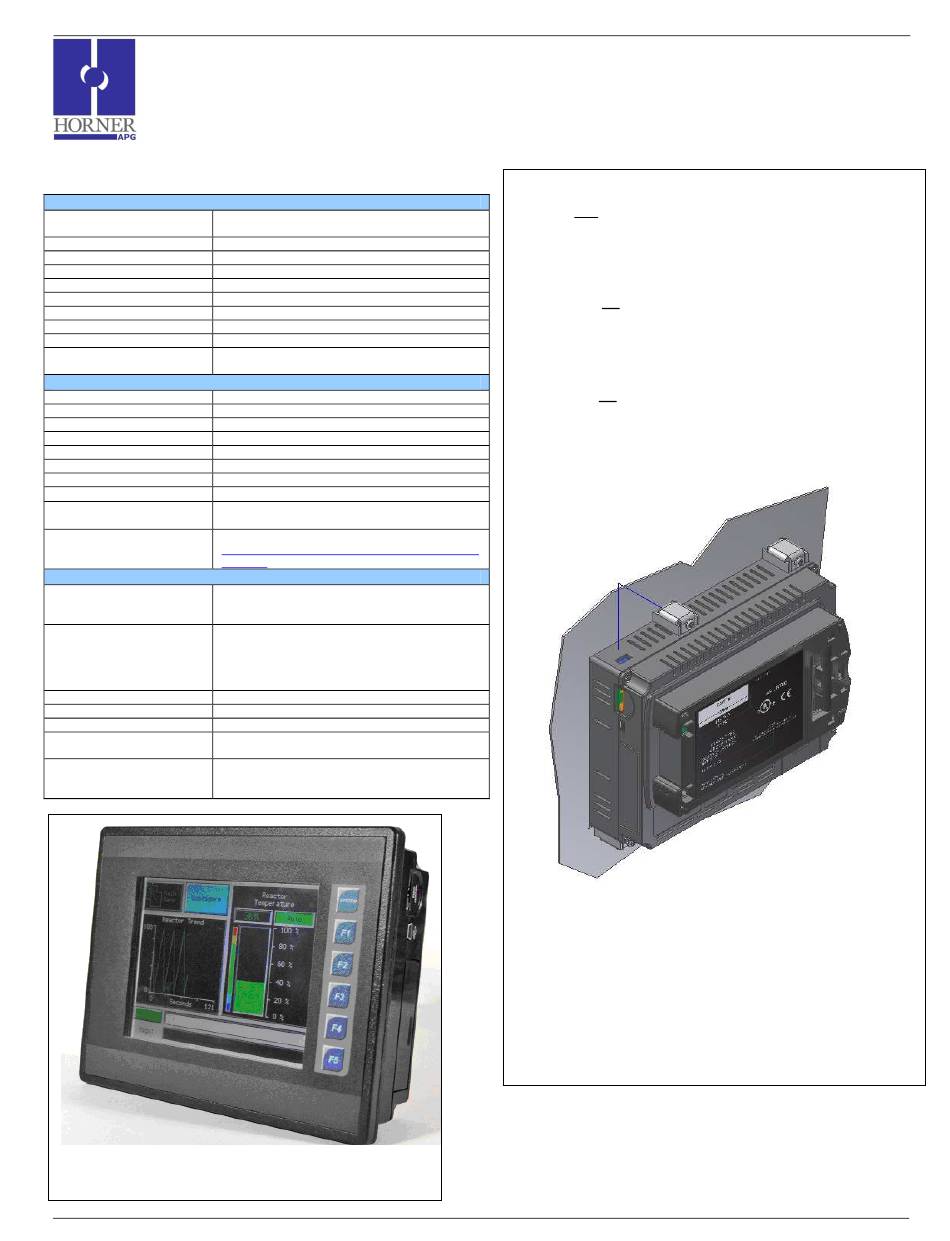

HORNER QX351 Series Specifications & Installation

MAN0893-02-EN
1.

Specifications

Table 1 - QX351 Specifications
Display Type (LCD with
Backlight)
Display Size
Display Screen Dimensions
Display Memory
User Keys 5 user-defined Function keys and a System key
Screens supported
Colors
Primary power
Steady state current
Inrush current
Product Descriptions
Height
Width
Depth
Serial Ports
Terminal Type
Weight
Portable Memory
Temperature & Humidity
Clock Accuracy
CE See Compliance Table at
UL http://www.heapg.com/Pages/TechSupport/Product
Cert.html
Connectivity
Smart Stack Modules Provides a wide variety of I/O options for the QX.
Requires little space and are easy to install.
Supports upto 2 smartstacks
Fiber Optic Extension System Extends a high-speed QX backplane enabling
(FOX) SmartStack I/O Modules to be mounted several
meters from the QX. The FOX, also, significantly
increases the number of SmartStack I/O modules
supported by one QX.
SmartStix Modules It is a family of remote I/O products for the QX.
Serial Ports 2 Serial Ports – RS232 & RS485
Ethernet Ethernet (10/100 Mbps)
USB USB networking port for communication with PC's
and programming of controller
Removable Media Removable Media for up to two gigabytes of
storage of programs, data logging or screen
captures
QX351
________________________________________________________________________________________________________________________________________
Feb 2, 2010
HE-QX351 / HEQX351C103
5.7" QVGA TFT
5.7"
320 x 240
2.75MB
1023
32768
10 – 30 VDC
500 mA @ 24 VDC
30 A for 1 ms @ 24 VDC – DC Switched
2.5 A for 4 ms @ 24 VDC - AC Switched
5.653" (143.6mm)
7.326" (186.1mm)
2.2" (55.88mm)
RS232 & RS485. Software Selectable
Screw Type, 5mm removable
23.3 oz (0.66kg)
Micro SD card slot
-10°C to +60°C & 5 to 95% Non-condensing
+/- 35 ppm maximum at 25° C
(+/- 1.53 Minutes per Month)
Page 1 of 5
QX351 Models:
2.

Installation

1. Prior to mounting, observe requirements for the panel layout design
and spacing/clearances in the OCS QX351 Manual (MAN0892).
2. Cut the host panel.
3. Insert the OCS through the panel cutout (from the front). The
gasket material needs to be between the host panel and the OCS
Caution: Do not force the OCS into the panel cutout. An incorrectly
sized panel cutout can damage the touch screen
4. Install and tighten the mounting clips (provided with the OCS) until
the gasket material forms a tight seal.
Caution: Do not over-tighten. Over-tightening damages the case
5. Connect cables as needed such as communications, programming,
power and CsCAN cables to the ports using the provided
connectors.
6. Begin configuration procedures.
Specifications / Installation
.
#1039
