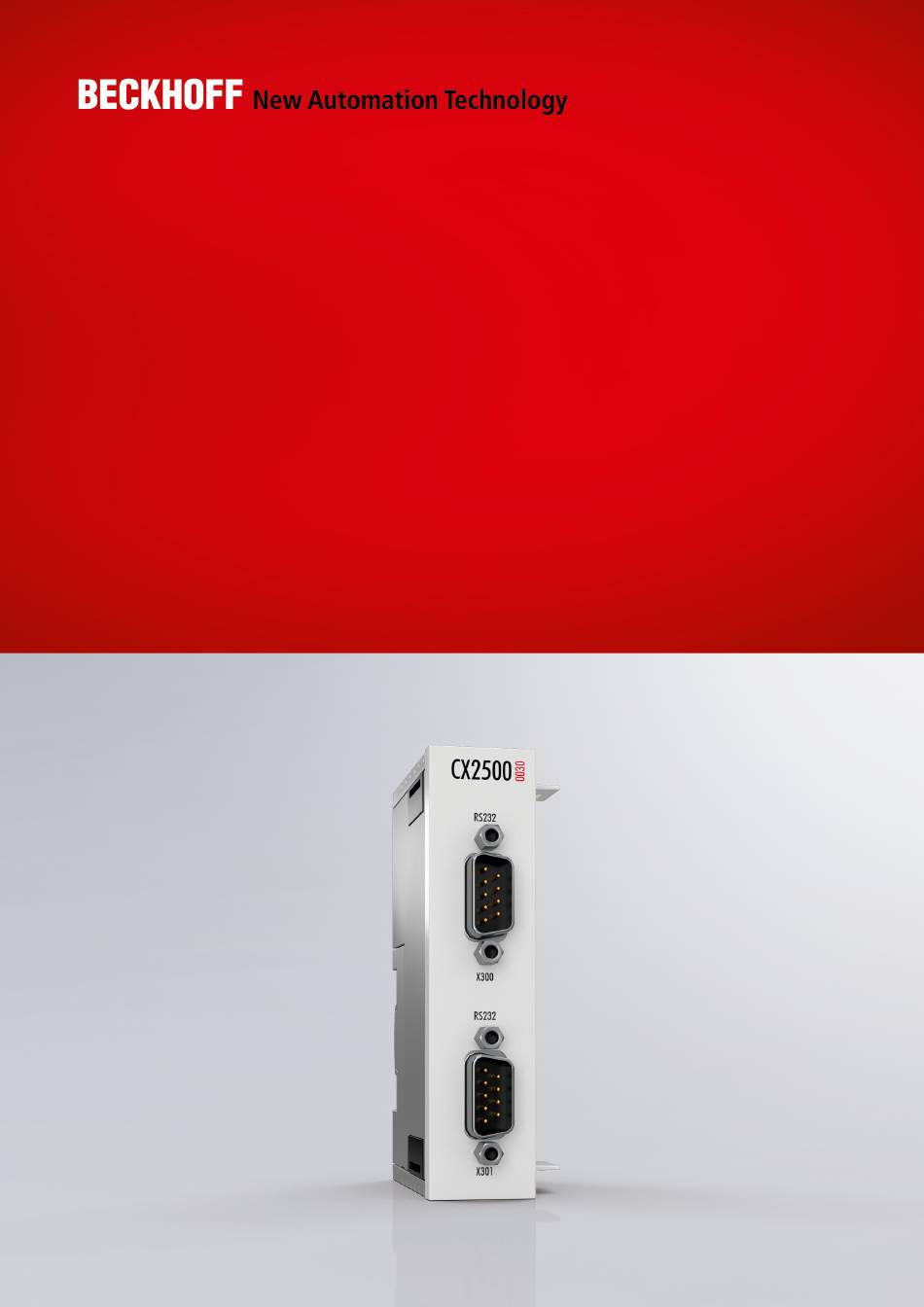

- Page 1 Manual | EN CX2500-0030 Serial interface RS232 8/31/2020 | Version: 1.1...
-
Page 3: Table Of Contents
Safety instructions .......................... 6 Documentation issue state ........................ 7 2 Product overview............................ 8 Intended use ............................ 8 System overview .......................... 9 CX2500-0030 - Technical data ...................... 9 3 Mounting and wiring.......................... 10 Unpacking, installation and transport .................... 10 Dimensions ............................ 11 Attaching the system interface to the CX20x0 system .............. 12 Installation on the mounting rail ....................... 12... - Page 4 Table of contents Version: 1.1 CX2500-0030...
-
Page 5: Foreword
EP1590927, EP1789857, EP1456722, EP2137893, DE102015105702 with corresponding applications or registrations in various other countries. ® EtherCAT is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany Copyright © Beckhoff Automation GmbH & Co. KG, Germany. The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited. -
Page 6: Safety Instructions
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. Personnel qualification This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards. -
Page 7: Documentation Issue State
Foreword Documentation issue state Version Changes first version Technical data updated CX2500-0030 Version: 1.1... -
Page 8: Product Overview
When components are being fitted or removed, the supply voltage must be switched off. Software knowledge NOTE System malfunctions Mandatory software knowledge! Every user must be familiar with any of the functions of the software in- stalled on the PC that he can reach. Version: 1.1 CX2500-0030... -
Page 9: System Overview
The CX2500-0020 audio module has jack plug (5 x 3.5 mm) and cinch plug for digital signals (SPDIF). Up to 7.1 multi-channel audio can be used. Serial interfaces can be added with the modules CX2500-0030 (RS232) and CX2500-0031 (RS422/RS485). The CX2500-0060 module provides two further independent Gbit Ethernet interfaces. -
Page 10: Mounting And Wiring
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. NOTE Danger of damage to the device! During transport in cold conditions, or if the device is subjected to extreme temperature differences, con- densation on and inside the device must be avoided. -
Page 11: Dimensions
Mounting and wiring Dimensions The following drawings show the dimensions of the CX2500-0030 interface. Dimensions CX2500-0030 Version: 1.1... -
Page 12: Attaching The System Interface To The Cx20X0 System
Then simply position the block on the mounting rail and push it slightly until it engages on the right-hand side. This is indicated by a distinct click. The bars are then engaged again. The engagement of the individual bars is indicated by a distinct click. Version: 1.1 CX2500-0030... - Page 13 The heat is dissipated via a passive ventilation system. This system requires the unit to be mounted correctly. Ventilation openings are located at the top and bottom of the housing. The system therefore has to be installed horizontally. This ensures optimum air flow. CX2500-0030 Version: 1.1...
- Page 14 The CX20x0 system must not be operated vertically on the DIN rail. A vertical position would lead to insufficient CPU ventilation, since the ventilation openings are located on the top and bottom of the housing. Installation of the system on its side would also lead to inadequate ventilation. Version: 1.1 CX2500-0030...
-
Page 15: Mounting The Module Lock
If all system interfaces are locked, then the entire assembly can be snapped onto the support rail. Dismounting the lock In order to dismantle the assembly it must first be removed from the support rail. Afterwards the bar clips can be removed with the aid of a screwdriver: CX2500-0030 Version: 1.1... - Page 16 Mounting and wiring Once the bar clips have been raised they can be pulled out. Subsequently, the system interfaces can be separated again. Version: 1.1 CX2500-0030...
-
Page 17: Cx2500-0030 Connections
Mounting and wiring CX2500-0030 connections The CX2500-0030 system interface provides two RS232 interfaces. The interfaces are arranged on a 9-pole Sub-D pin contact strip. Up to 4 interfaces can be attached. This means that up to 9 serial interfaces (four CX2500-0030 modules and the optional CX20x0-N030 interface) can be connected to the CX20x0 system. - Page 18 Once all serial interfaces, apart from COM1, have been removed in the Device Manager, the system can be shut down and de-energized. The hardware configuration can now be changed. Once the configuration has been changed as required, the system can be restarted. The operating system restarts and numbers the interfaces as described above. Version: 1.1 CX2500-0030...
-
Page 19: Commissioning / Configuration
Embedded PC off, since data can be lost from the hard disk by switching off while software is running. Once the software has been stopped, the operating system can be shut down. Only then should the power supply be interrupted. CX2500-0030 Version: 1.1... -
Page 20: Plc-Interface Cx2500-0030
Commissioning / Configuration PLC-Interface CX2500-0030 The CX2500-0030 system interface provides two RS232 interfaces. They can be connected to the PLC via the TwinCAT System Manager. In the System Manager you can open the Scan Devices... context menu, which searches for the serial interfaces. - Page 21 • hardware FIFO (16, 32, 64, 138, 256) • data bits (8, 7, 6, 5) • COM port mode BK8xx0 mode (for Bus Coupler operation) KL6xx1 mode (for emulation as KL6xx1) Connection of the interface to TwinCAT is now complete. CX2500-0030 Version: 1.1...
-
Page 22: Error Handling And Diagnostics
6. Any components / software used The quickest response will come from support / service in your country. Therefore please contact your regional contact. For details please refer to our website at www.beckhoff.de or ask your distribution partner. Version: 1.1... -
Page 23: Decommissioning
In order to release the CX20x0 block, the DIN rail fastening above and below the device must be released. To do this, press the hooks outwards using a screwdriver. An audible click indicates that the device is released. CX2500-0030 Version: 1.1... - Page 24 Subsequently, the system interfaces can be separated again. NOTE Do not use force to open the device! Opening the module housing by force would destroy it. The devices may only be opened by Beckhoff ser- vice personnel. Version: 1.1...
-
Page 25: Appendix
All products of the Embedded PC family are CE, UL and EAC certified. Since the product family is continuously developed further, we are unable to provide a full listing here. The current list of certified products can be found at www.beckhoff.com. FCC Approvals for the United States of America... -
Page 26: Support And Service
Beckhoff's branch offices and representatives Please contact your Beckhoff branch office or representative for local support and service on Beckhoff products! The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages: http://www.beckhoff.com You will also find further documentation for Beckhoff components there. - Page 28 More Information: www.beckhoff.com/CX2500-0030 Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
