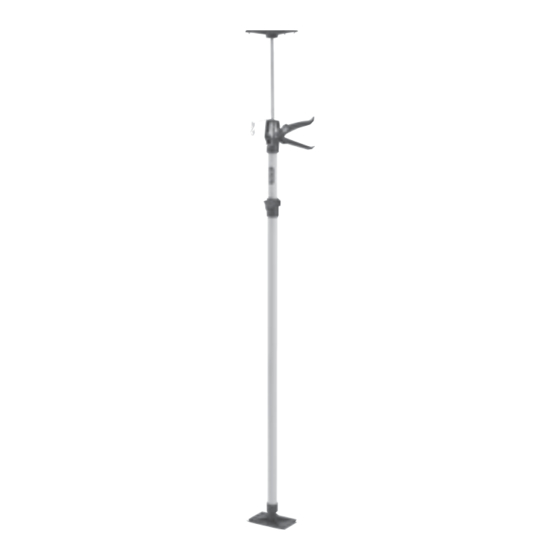

- Page 1 SUPPORT ARM SUPPORT ARM MODEL NO: CHT399 PART No: 1801399 OPERATION & MAINTENANCE INSTRUCTIONS 1102...
- Page 2 Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the product data plate.
- Page 3 4. ALWAYS ensure the support arm is as near vertical as possible, DO NOT use at an angle. 5. ALWAYS check load is supported safely before starting work. 5. NEVER use support arm to lift weight, it is designed to support weight only. If in any doubt, contact Clarke’s service department on 020 8988 7400...
- Page 4 Lever ‘A’, or loosening Knob ‘B’, and pushing support upwards against ceiling etc. Tools and Accessories A wide range of tools and accessories are available from your nearest CLARKE dealer, for further information, contact your nearest dealer, or telephone CLARKE International Sales department on 01992 565300.
- Page 5 PARTS LIST Item Part Number Description JB39901 Plate JB39901A JB39901B Ball JB39902 Shaft JB39903 Lamp Bracket JB39904 Lever ‘A’ JB39905 Upper Support Tube JB39906 Knob ‘B’ JB39906A Bolt JB39907 Lower Support Tube JB39908 Spring JB39909 Trigger Assy JB39910 Spring JB39911 Clamp JB39912 Ball Joint/Base...
