Overview - S&C IntelliRupter PulseCloser Installation Manual

An IntelliRupter fault interrupter with catalog number
suffix "-C11" is shipped with the SDA-5799 Protection and
Control Module shown in Figure 1. This control features a
fiber-optic interface that allows the control to be connected
to an external interface assembly.
There are two versions of external interface assembly.
S&C part number SDA-5798 has connectors that accept
up to two 16AWG wires or one 14AWG wire. S&C part
number SDA-5798-1 has terminal blocks that accept wires
terminated with a ring lug suited for use with a #8 screw.
Figure 2 show the SDA-5798-1 external interface assembly.
A fiber-optic cable is required to connect the SDA-5799
Control Module to the external interface assembly. Refer
to S&C Specification Bulletin 766-31 for a complete list of
the available fiber-optic cables.
There are also two mounting options for the external
interface assembly. Refer to S&C Specification Bulletin
766-31 for a complete list of the available mounting options.

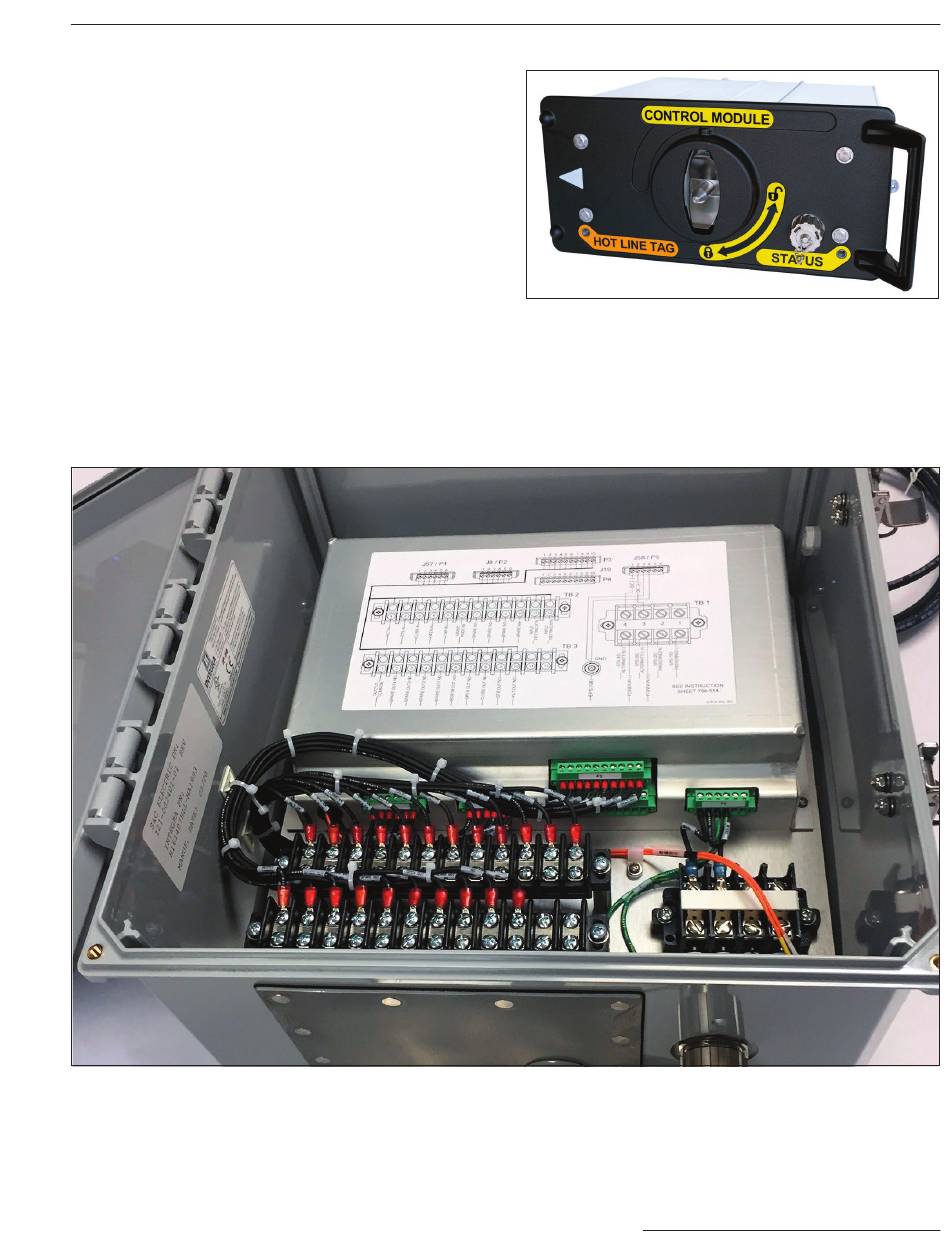

Figure 2. Interior of the SDA-5798-1 external interface assembly.
Figure 1. The SDA-5799 Protection and Control Module.
