Installation
STEP 7.
Install the conduit for the customer supplied
connections and the external power supply
conduit to the external interface assembly. See
Figure 7.
STEP 8.
Remove the fiber-optic cable protector. Connect
the fiber-optic cable to the customer interface
assembly and the control module. See Figure 6
on page 9. For more information refer to
Installation Instruction Sheet RD-9067.

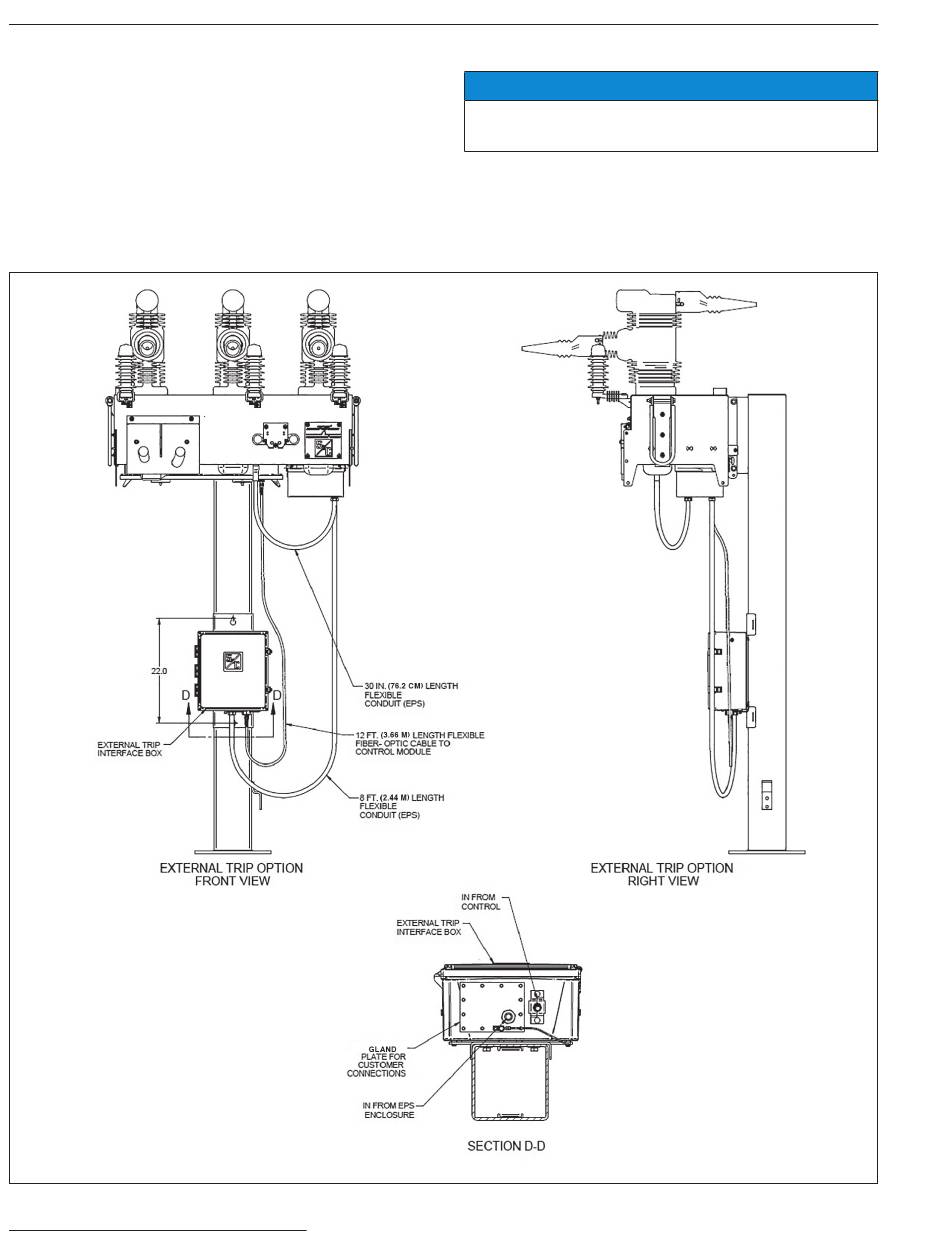

Figure 7. A pedestal-mounted external interface assembly.
10
S&C Instruction Sheet 766-514
NOTICE
The minimum bend radius for the fiber optic cable is
4 .25 inches (108 mm) .
