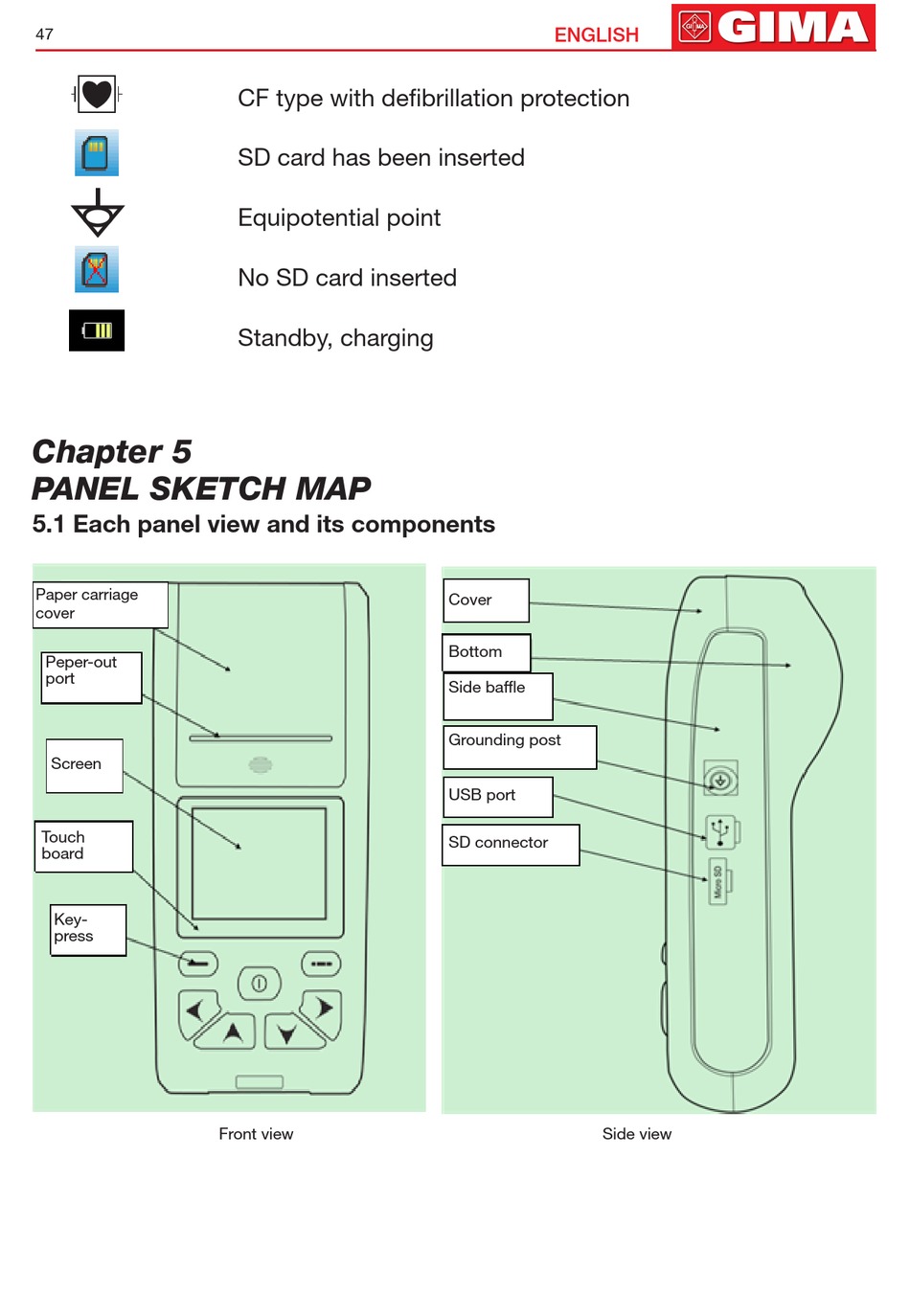

Chapter 5
PANEL SKETCH MAP
PHTHALATES
5.1 Each panel view and its components
Paper carriage
cover
Peper-out
port
Screen
Touch
board
Key-
press
CF type with defibrillation protection
z
SD card has been inserted
Equipotential point
No SD card inserted
Standby, charging
Σ
IVD
1
Front view
ENGLISH
2°C
35°F
Cover
Bottom
Side baffle
Grounding post
USB port
SD connector
Side view
30°C
86°F
