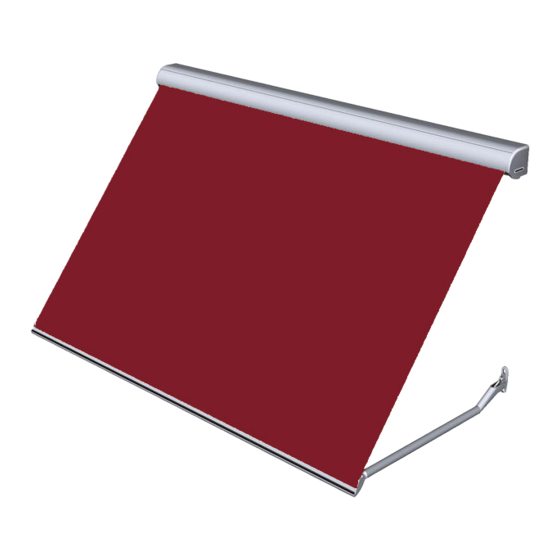

- Page 1 WAREMA drop-arm awnings Type 310, 314, 330, 340 and 350 Instructions for use and maintenance To be handed over to the operator – original operating manual Valid from 05 April 2012 Document number [B866589_3] – EN...
-
Page 2: Table Of Contents
Table of contents Table of contents 1 Introduction ..........................3 Information on safety ............................... 3 Information on the target group and application of these instructions ..............3 Explanation of symbols and signs ........................... 3 ... -
Page 3: Introduction
They describe the operation of WAREMA drop-arm awnings of type 310, 314, 330, 340 and 350 with crank and motor operation. Other drives and special solutions are not dealt with. -
Page 4: Important Safety Information
Introduction Operating notes Important safety information The safety instructions and warnings described here are Risk of crushing injuries! intended to safeguard your health as well as protect the product. The following points must be read through care- When retracting and extending the product, do fully. -
Page 5: Product Information
Technical data/accessories Details for electric drive Parts description Parameter Value Drop-arm awning Drop-arm awning type 310/314 type 330 8 ─ 30 Nm Rated torque Revolutions (idling) 17 rpm Mains voltage 230 V AC/50 Hz 0.45 ─ 0.9 A Current consumption 100 ─... -
Page 6: Intended Use
Product information Intended use EC conformity The drop-arm awnings of type 310/314, 330, 340 and 350 The EC conformity is certified, and the corresponding EC are sun shading systems that may only be employed to declaration of conformity (see Chapter 9/p. 15) is part of... -
Page 7: Operation
Operation Operation Operation with crank operation CAUTION NOTE Risk of injury and product damage! Only operate the product if it is in technically per- fect condition. When the crank awning is fully extended or retracted, do not continue moving the crank forcefully after you feel a resistance. -
Page 8: Operation With Operating Elements
Operation Operation with operating elements Operation using the central control unit Extending using the sunblind push button/venetian CAUTION blind switch Product damage from failure of the external control unit! The control unit is not functional under extreme conditions (e.g. power failure or Press "DOWN"... -
Page 9: Incorrect Operation
Operation Projection range of the drop-arm awning Incorrect operation General drop-arm awning operation The projection range of the awning must be kept clear of fixed and NOTE movable obstacles. Only operate the product if it is in technically per- fect condition. -
Page 10: Care/Maintenance
Care/maintenance Operation in cold weather Care/maintenance CAUTION General information on care and maintenance Product damage from forceful operation. Do not extend or retract the awning in snow Proper and regular care and maintenance and the use of or when there is a risk of frost. original spare parts only are essential for fault-free opera- tion and a long product life. -
Page 11: Care Instructions
The WAREMA warranty becomes invalid if measures depends on a large number of fac- the unit is not cleaned properly at least once tors that vary from case to case. -
Page 12: Warranty
Warranty DANGER Electric shock! When inspecting or maintaining electrical parts, the unit must be de-energised and locked out. Check the function and the limit positions of the product. Fig. 2: Attaching the label Check the product for visible wear, for damage to the motor line and to ensure it is securely attached Warranty (e.g. -
Page 13: Spare Parts/Repairs
WAREMA spare parts only. Contact a qualified spe- cialist for further information if necessary. Waviness in the seams and fabric panels... -
Page 14: Troubleshooting
Troubleshooting Troubleshooting CAUTION Personal injury or property damage during troubleshooting! Problems without a reference to a quali- fied specialist or certified electrician may be rectified independently. Other problems are only to be dealt with by a qualified specialist or certified electri- cian. -
Page 15: Ec Declaration Of Conformity
EC Declaration of Conformity The product: WAREMA drop-arm awning Type: 310, 314, 330, 340, 350 Purpose: External textile sun shading system Meets all pertinent provisions of the Construction Products Directive 89/106/EEC and, in the case of motor drives, the provisions of Machinery Directive 2006/42/EC. - Page 16 WAREMA Renkhoff SE Hans-Wilhelm-Renkhoff-Straße 2 97828 Marktheidenfeld, Germany www.warema.de info@warema.de...
