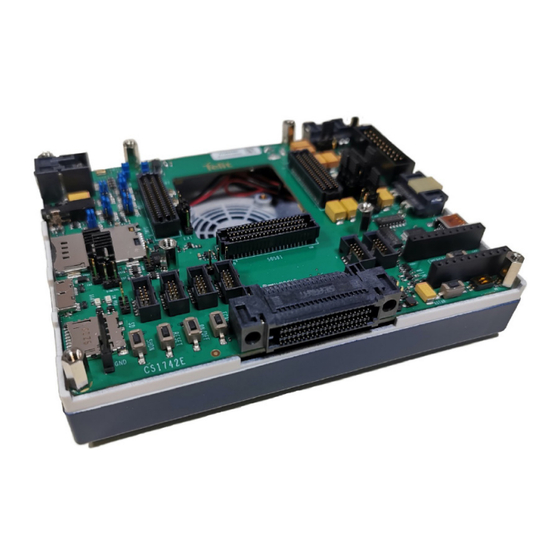

Summary of Contents for Telit Wireless Solutions EVB
- Page 1 Ethernet Extention Card for EVB Application Note 80490NT11622A Rev. 1 – 2017-10-03 Mod. 0809 2017-01 Rev.8...
- Page 2 SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE NOTICE While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be reliable.
- Page 3 USAGE AND DISCLOSURE RESTRICTIONS License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials.
- Page 4 80490NT11622A Rev. 1 Page 4 of 25 2017-10-03...
- Page 5 APPLICABILITY TABLE PRODUCTS LE920 AUTO SERIES LE910 CAT.1 SERIES LE940 AUTO SERIES TELIT EVB 80490NT11622A Rev. 1 Page 5 of 25 2017-10-03...
-
Page 6: Table Of Contents
WIRED ETHERNET CONNECTION ..........10 Extension Card Description ............10 Block Diagram ................11 Ethernet Extension Card .............. 12 Extension Card Connection to EVB..........12 Connection and Configuration ............13 2.5.1. SGMII to Ethernet (using Marvell 88AE1512) ......13 2.5.2. -
Page 7: Introduction
Scope of this document is to provide a short guidance on how to configure and operate the Ethernet Extension board when connected to Telit EVB. 1.2. Audience This document is intended for developers using Telit EVB platform with the Ethernet Extension board. 1.3. Contact Information, Support... - Page 8 1.4. Text Conventions Danger – This information MUST be followed or catastrophic equipment failure or bodily injury may occur. Caution or Warning – Alerts the user to important points about integrating the module, if these points are not followed, the module and end user equipment may fail or malfunction.
- Page 9 1.5. Related Documents Telit EVB User Guide, 1VV0301249 80490NT11622A Rev. 1 Page 9 of 25 2017-10-03...
-
Page 10: Wired Ethernet Connection
WIRED ETHERNET CONNECTION Extension Card Description The Ethernet extension card provides the option to use the SGMII, RGMII or PCIe interfaces of the Modem and SDK to a wired 10/100/1Gbps wired ethernet connection. The interface used for the Ethernet phy depends on the Modem capability. The card includes the following main components: 1. -
Page 11: Block Diagram
Block Diagram SGMII Exclusive Jumper option Exclusive Jumper option SGMII SFP Module cage 88EA1512 ETH PHY RJ45 Eth Connector Transceiver RGMII RGMII 10/100/1000Mbps (built‐in magnetics) AR8151‐B ETH MAC RJ45 Eth Connector PCIe Transceiver PCIE (built‐in magnetics) 10/100/1000Mbps Figure 2-1 Ethernet Extension Card Block Diagram 80490NT11622A Rev. 1 Page 11 of 25 2017-10-03... -
Page 12: Ethernet Extension Card
Ethernet Extension Card SGMII SFP Ethernet port PCIe Ethernet port SGMII or RMII to RJ45 Ethernet port Figure 2-2 Ethernet Extension Card Extension Card Connection to EVB Figure 2-3 Extension Connection to EVB 80490NT11622A Rev. 1 Page 12 of 25 2017-10-03... -
Page 13: Connection And Configuration
2.5.1. SGMII to Ethernet (using Marvell 88AE1512) Insert a data SIM card to the proper EVB SIM slot. Connect one end of an ethernet cable to the board RJ45 connector, to the port marked as “SGMII/RGMII to Copper”. The other end of the cable should connect to the device you want to provide the internet connection. - Page 14 TX packets:103 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:20761 (20.2 KiB) TX bytes:9762 (9.5 KiB) Interrupt:108 Link encap:Local Loopback inet addr:127.0.0.1 Mask:255.0.0.0 inet6 addr: ::1/128 Scope:Host UP LOOPBACK RUNNING MTU:65536 Metric:1 RX packets:3 errors:0 dropped:0 overruns:0 frame:0 TX packets:3 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0 RX bytes:172 (172.0 B) TX bytes:172 (172.0 B) rmnet0...
- Page 15 80490NT11622A Rev. 1 Page 15 of 25 2017-10-03...
- Page 16 Below is the result after QCMAP CLI connection: ~ # [ 449.083973] QCMAP:bringup v4 [ 450.116923] QCMAP:WAN connected v4 ~ # ifconfig bridge0 Link encap:Ethernet HWaddr 1E:C6:69:49:51:35 inet addr:192.168.225.1 Bcast:192.168.225.255 Mask:255.255.255.0 inet6 addr: fe80::1cc6:69ff:fe46:4e32/64 Scope:Link UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:766 errors:0 dropped:0 overruns:0 frame:0 TX packets:584 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0...
-
Page 17: Pcie To Ethernet (Using Ar8151-B)
2.5.2. PCIe to Ethernet (Using AR8151-B) Initializing this interface connection should be similar as described in the previous paragraph. 80490NT11622A Rev. 1 Page 17 of 25 2017-10-03... -
Page 18: Jumpers
Jumpers The functions and default setting of the Jumpers on the board are described in the table below: Jumper Position Description Short The 3.3V power input for SGMII/RGMII PHY (88EA1512) Short The 3.3V power input for PCIe ETH PHY (AR8151) Short The 3.3V power input for SFP module (optional) SGMII/RGMII PHY CONFIG pin: PHYAD bit 0 and VDDO_LEVEL. - Page 19 Figure 2-4 Jumpers Locations 80490NT11622A Rev. 1 Page 19 of 25 2017-10-03...
-
Page 20: Schematics
Schematics 80490NT11622A Rev. 1 Page 20 of 25 2017-10-03... - Page 21 80490NT11622A Rev. 1 Page 21 of 25 2017-10-03...
- Page 22 80490NT11622A Rev. 1 Page 22 of 25 2017-10-03...
-
Page 23: Glossary And Acronyms
GLOSSARY AND ACRONYMS Description UART Universal Asynchronous Receiver Transmitter Subscriber Identification Module Serial Peripheral Interface Input Output GPIO General Purpose Input Output Clock Printed Circuit Board Ethernet SGMII Serial Gigabit Media-Independent Interface 80490NT11622A Rev. 1 Page 23 of 25 2017-10-03... -
Page 24: Document History
DOCUMENT HISTORY Revision Date Changes 2017-10-03 Added connection example console log and screenshots. 80490NT11622A Rev. 1 Page 24 of 25 2017-10-03... - Page 25 Mod. 0809 2017-01 Rev.8...
