Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Instruction No

Version

30721137

1.3

IMG-266944

Part. No.

31414735, 30790158, 30790156

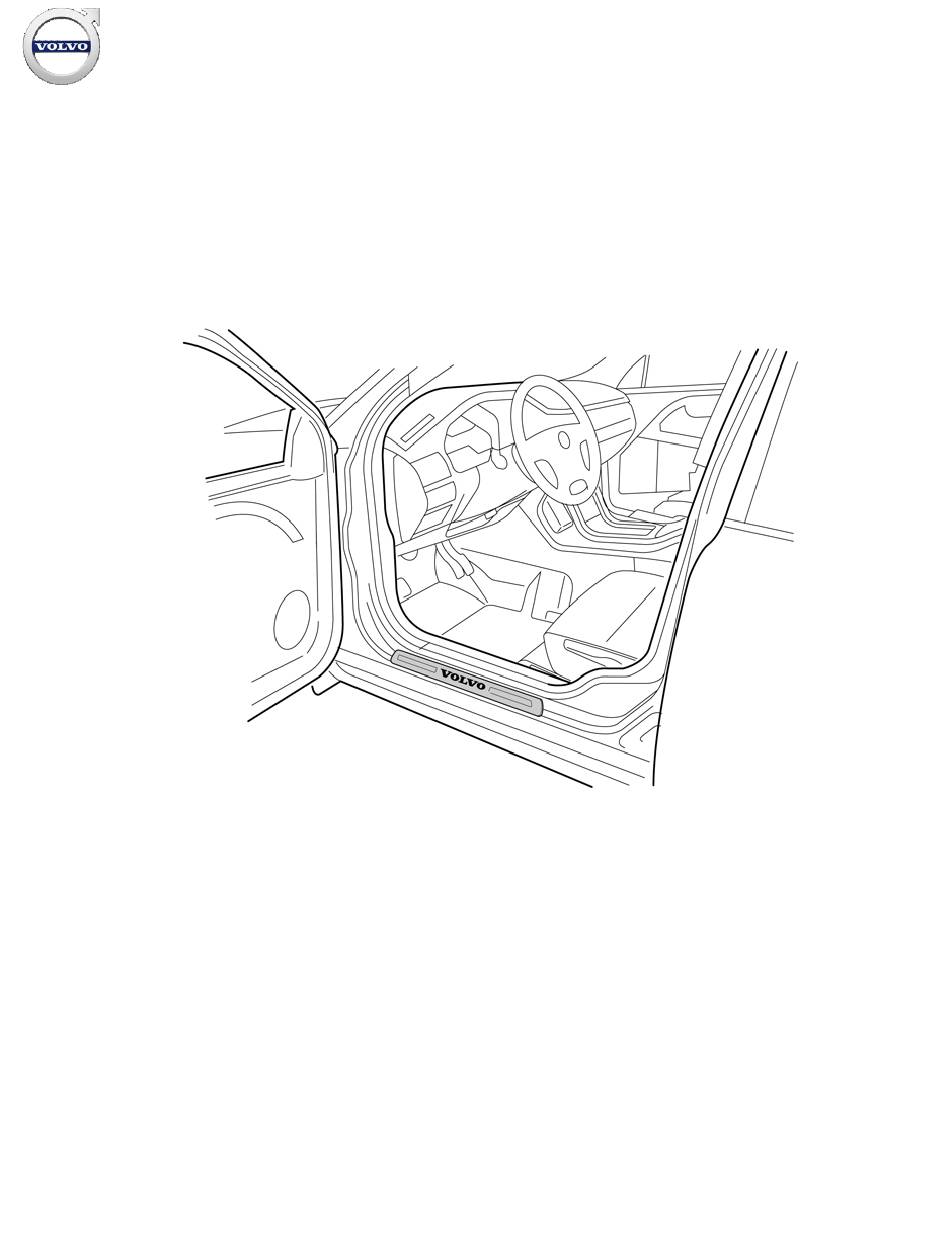

Sill molding, illuminated

Sill molding, illuminated- 30721137 - V1.3

Page 1 / 34

Need help?

Do you have a question about the 31414735 and is the answer not in the manual?

Questions and answers

Summary of Contents for Volvo 31414735

Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30721137 30721137 31414735, 30790158, 30790156 31414735, 30790158, 30790156 Sill molding, illuminated Sill molding, illuminated IMG-266944 IMG-266944 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3...
Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment IMG-239681 IMG-239660 A0000162 M0000276 A0000177 A0000214 IMG-297963 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 2 / 34...
Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 3 / 34...
Page 4 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! The work is done the same on left-hand drive and right-hand drive cars (mirrored).
Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Wash the door sill IMG-297967 Place a strip of tape in the front edge of the sill panel, square to the edge of the door sill. IMG-297968 Measure out a distance of 40 mm (1 9/16") from the front of the tape strip and forward, to mark the sill moulding's front position.
Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rear strip of tape. IMG-323264 Remove the end of the dashboard by first carefully prying it (1) with a weatherstrip tool until the two catches release, then it off backwards (2)
Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the rubber moulding on the front edge of the door opening. IMG-255725 Remove the lower A-pillar panel in the front door by first lifting it up at the rear edge. Pull it back until the clip on the centre releases.
Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fasten a tape strip on the outer part of the sill, butt with the longitudinal embossing. Measure out 134 mm (5 1/4") from the position where the moulding's front edge should be and mark on the tape strip.
Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Make a light punch mark and pre-drill the hole in the sill with a Ø 3.5 mm (9/64") drill bit. Drill out the hole using a Ø 8.5 mm ( 21/64") drill bit.
Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Move the opener through the hole in the mat. IMG-298163 Bend off the covers over the seat's attachments and remove the screws. IMG-298164 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3...
Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully bend off the covers in the driver seat's rear attachments with a weatherstrip tool. Remove the screws. Move back the seat slightly to expose the front floor mat at the trailing edge.
Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the dashboard's end panel on the right side by carefully twisting it (1) using a weatherstrip tool until the two catches release and then pull it backwards (2). If the car has a passenger airbag, unplug the connector for the switch.
Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the rubber strip in the front edge of the door opening by the lower A-pillar panel on the right side. IMG-222267 Remove the lower A-pillar panel by the right front door by first pulling it up at the rear edge until the clip there releases.
Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the bolts of the panel underneath the glovebox and remove it. Unplug the lighting connector and move the panel aside. IMG-222268 IMG-222270 Fold back the floor mat so that the floor is exposed.
Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Loosen the contact bridge on the right door sill's inside and move aside. Remove the blank seal washer on the inside of the door sill. Note! Same on left-hand drive and right-hand drive cars.
Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-298205 Get a sill moulding from the kit, tape both wire ends to the casing and the wire for the lead-through. IMG-298206 Now carefully route the wire through the passenger compartment. IMG-298207 ©...
Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Position the sill moulding by the strip of tape at the front edge and position it so that the cut-outs in both ends align with the corresponding door sill. Be careful when positioning so that the moulding is not misaligned.
Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Pull up the wire's casing as far as possible against the connection in the moulding and press onto the self-adhesive surface. IMG-298365 Position the sill moulding by the tape strip at the front edge and the two by the sides.
Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carefully pull away the protective tape and successively push down into place, first the outer, then the inner tape. Make sure that the rubber moulding is not in the way. Note! Do not push down the strip too close to the protective tape on the inner tape.
Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Get a rubber bushing from the kit, fit it on the wire and fasten in the sill's inside. IMG-298370 Clean the marked surface in front of the thicker of the air ducts with isopropanol and wipe dry.
Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Secure the transformer as far to the left and as high up in the recess in the floor as possible. IMG-317165 Get a loose connector from the kit and press in the cable...
Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Route the wire under the holder for the washer fluid hose and connect to the wire from the transformer. Note! Same on left-hand drive and right-hand drive cars IMG-298483 Clamp down the connector and wires to the existing cable harness.
Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Unplug the connector for the courtesy lighting under the collision pipe. IMG-298485 Pull up the cable harness from the transformer along the existing wires up under the dashboard, along the collision pipe and on to the lighting under the dashboard.
Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clamp down loose connectors to existing cable harness under the steering column with cable ties from the kit. Clamp down the connectors at each end of the cable harness so that they do not rattle.
Page 25 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-298524 Connect the prewired cable harnesses female connector to the courtesy lighting. Connect the remaining connectors to each other. Hide extra wire under the mat, install the panel, and tighten down. IMG-298525 IMG-225272 ©...
Page 26 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-231438 IMG-225281 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 26 / 34...
Page 27 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-231437 Note! Applies to cars with switch for passenger airbag. IMG-298526 IMG-225282 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 27 / 34...
Page 28 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-298583 IMG-298584 IMG-298586 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 28 / 34...
Page 29 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-298587 IMG-298588 IMG-255785 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 29 / 34...
Page 30 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-255786 IMG-255787 © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 30 / 34...
Page 31 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-255788 IMG-242267 Sill mouldings rear doors © Volvo Car Corporation Sill molding, illuminated- 30721137 - V1.3 Page 31 / 34...
Page 32 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Sill mouldings rear doors Wash the door sill IMG-297874 Place a strip of tape in the front edge of the sill panel, and square to the edge of the door sill. IMG-290349...
Page 33 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Clean the marked surface on the sill using isopropanol and wipe dry. IMG-290344 Remove all the pieces of protective tape from the sill moulding. IMG-300145 Align the moulding with the tape markings and carefully fold it down against the sill and push into position.
Page 34 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Now press along the entire strip so that it fastens properly. Press the moulding strip down firmly with a pressure of 2 kg/cm² along its entire length. Repeat the operation on the other side.
