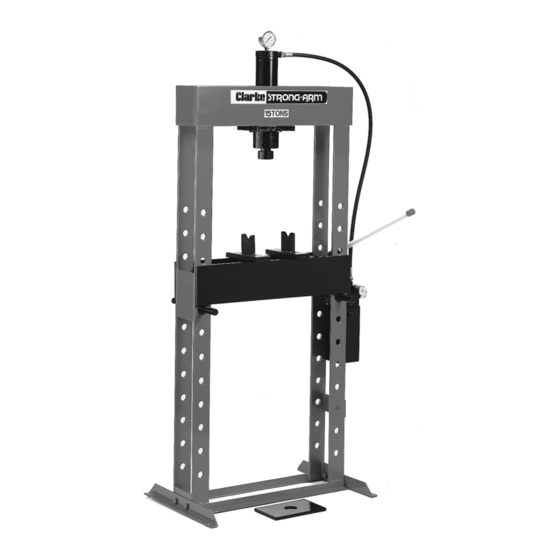

- Page 1 WARNING: Read these instructions before using the machine 15 TONNE HYDRAULIC PRESS MODEL NO: AHP 16 PART NO: 7615103 OPERATION & MAINTENANCE INSTRUCTIONS LS1211...
-
Page 2: Safety Precautions
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. - Page 3 • Keep hands and fingers away from parts that may pinch and shift. • Keep warning decals legible and intact. Replacements may be obtained from Clarke International Spare Parts Department. • Failure to heed these warnings may result in damage to the equipment, or failure resulting in property damage, personal, or even fatal injury.
-
Page 4: Bed Height
ASSEMBLY Ensure the press and its components suffered no damage during transit. Should any damage be apparent, please contact your CLARKE dealer immediately. IMPORTANT: Due to the weight of the press, we recommend that you get assistance from another person during assembly. -
Page 5: Positioning The Ram
POSITIONING THE RAM The ram can positioned as required by sliding it along the top rail. • Always position the ram directly above the workpiece. HYDRAULIC PUMP/RAM OPERATION The pump is provided with two valves, operated by turning the respective handwheel as shown. -
Page 6: Operation
OPERATION 1. Place the workpiece on the bed. • It must be completely stable. you must use packing or shims where required. ‘Vee’ blocks and a supporting plate are supplied, which locate on the bed. Place the workpiece on a combination of these to give it stability. DO NOT ‘point load’... -
Page 7: Maintenance
• Check the hydraulic pump oil level, by removing the plug from the front of the unit. Oil should be level with the bottom of the hole. If necessary top up with CLARKE Hydraulic Oil, Part No. 3050830 only. This operation is carried out with the ram fully retracted. -
Page 8: Specifications
SPECIFICATIONS Capacity 15 tonne Dimensions Pressure 390 Bar 170 mm Ram Stroke 160 mm 550 mm Ram Diameter 40 mm 1000 mm Net Weight 120 kg 125 mm 160 mm 900 mm 600 mm 1950 mm 125 mm Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 9: Parts Diagram
PARTS DIAGRAM PART NO DESCRIPTION PART NO DESCRIPTION A0315 Nut M12 R0266 Spacer A0346 Washer 12 x 24 R1182 Pump Assembly B4949 Bolt TE M12 x 40 R1651 Flexible pipe B5047 Gasket with 1/4” seal R1656 Working Plane B5863 Connector for gauge R1664 V-Block R0046... -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 11 NOTES Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
