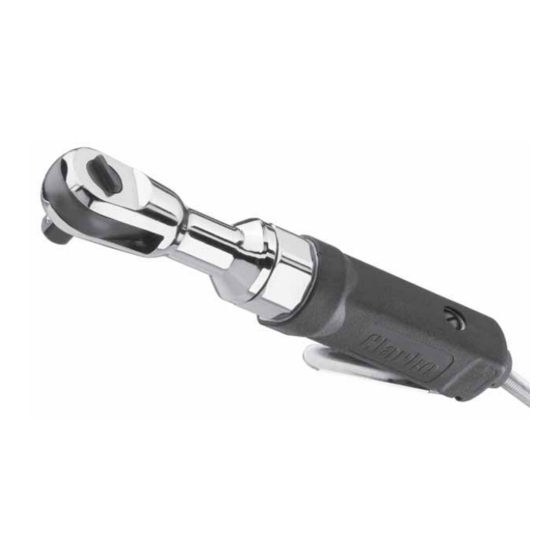

- Page 1 1/2” REVERSIBLE RATCHET 1/2” REVERSIBLE RATCHET MODEL No: CAT105 Part No: 3110861 OPERATION & MAINTENANCE INSTRUCTIONS 0408...
-
Page 3: Specifications
Always consult the machine’s data plate GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT • Keep the work area clean and tidy. • Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 5 SAFETY PRECAUTIONS • Always disconnect from the air supply when: Performing any maintenance The rachet is not in use. The rachet will be left unattended. Moving to another work area. Passing the rachet to another person. • Never use the rachet if it is defective or operating abnormally. •...
-
Page 6: Air Supply
PARTS Direction Selector Anvil Air Inlet Trigger AIR SUPPLY WARNING! COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source for the rachet. •... - Page 7 Connect a suitable hose to the tool using a ¼” hose adapter, (A whip hose with Quick Fit coupling is available from your CLARKE dealer) then connect the other end to the airline. Your Rachet is now ready for use.
- Page 8 OPERATING INSTRUCTIONS FITTING THE SOCKETS Select the impact socket you require. Push the impact socket onto the anvil as shown. SELECT DIRECTION Rotate the direction selector anticlockwise to Rotate select forward. Rotate the direction selector clockwise to select reverse. USING THE RACHET For removal Set direction of rotation to reverse.
-
Page 9: Disconnecting The Air Supply
OPERATING INSTRUCTIONS DISCONNECTING THE AIR SUPPLY Do not disconnect the air supply hose until the compressor has been shut down and the compressed air released. Refer to the compressor instruction book for the procedures to shut down and release the compressed air. Once the pressure has been released, disconnect the air supply hose from the rachet. -
Page 10: Maintenance
Check and clean the air inlet gauze filter if necessary. Pour a few drops of CLARKE Air Line Oil, into the air inlet. This should be carried out regardless of whether or not an air line lubricator is used. If an Air line lubricator is not used, this procedure should be repeated after every two to three hours of use. -
Page 11: Parts Diagram
PARTS DIAGRAM Part No. Description Part No. Description KL106323 Gear Plate KL104018 Inlet Bushing KL103324 KL106302 Handle KL106324 Clamp Housing KL103127 Throttle Lever KL106325 Bushing KLP0030220 KL106326 Ratchet KL106305 Bushing KL106327 Pin Lock KL106306 Valve KL106328 Spring KLO0300180 O-Ring KL106329 Button Reverse KL106308 Spring...
