Summary of Contents for Clarke Air CAT149

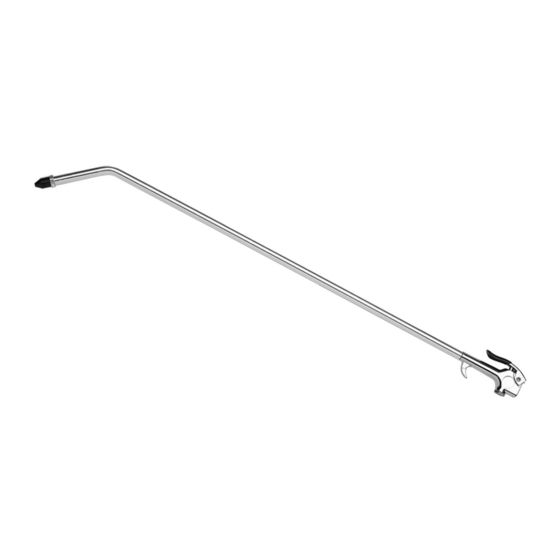

- Page 1 EXTRA-LONG AIR BLOWGUN MODEL NO: CAT149 PART NO: 3120163 OPERATING & MAINTENANCE INSTRUCTIONS GC1215...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE Blow Gun. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Compressed Air Requirements
• A typical airline layout is shown above. If an automatic in-line filter/ regulator is used, it will keep the tool in good condition, but should be regularly checked and topped up with oil. clarke airline oil should be used, and the lubricator adjusted to approx 2 drops per minute. -
Page 4: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. -
Page 5: Transport And Storage
5. Your blow gun is now ready for use. • You can fit a whip hose with a quick fit coupling if required, available from your Clarke dealer. 6. Set the compressed air pressure at the airline regulator to suit the type of work being done. -
Page 6: Maintenance
Your Clarke air tool has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer. -
Page 7: Component Parts
COMPONENT PARTS Description No Description Trigger O-ring Bolt Cushion Connection Main Housing Tube Spring Rubber Nozzle Valve Stem Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
