Assa Abloy Corbin Russwin HPSK Installation Instructions Manual

Installation Instructions

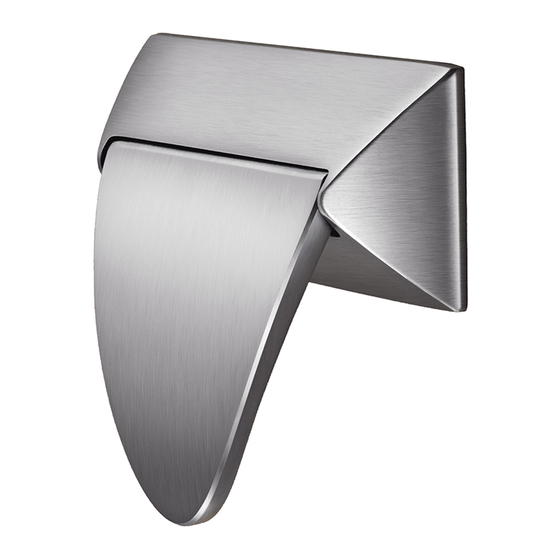

Push/Pull (HPSK) Paddle Trim for
ML2000 Series Mortise Locks
TOC

Table of Contents

1 Mortise Lock Handing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Mortise Lock Door Preparation & Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2
3 HPSK Trim Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4 Turn-Piece Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Coin-Turn Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5
For installation assistance contact Corbin Russwin
1-888-607-5703 • support@corbinrusswin.com
Copyright © 2017 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
Cover Screws
Surface Mount
Insert Insert
Screws
Screws
Cover
Paddle
Mounting
Post Screws
Axle
Inside Paddle
Chassis
Axle
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductive harm. For
more information go to
www.P65warnings.ca.gov.
08/2018
Surface Mount
Screws
Insert
Mounting
Screws
Posts
Outside Paddle
Chassis
Insert
Paddle
Cover
Cover Screws
FM339 10/18
