5 Peripherals support
Debug UART: GPIOB_[0..1]
JTAG: GPIOE_[0..4]

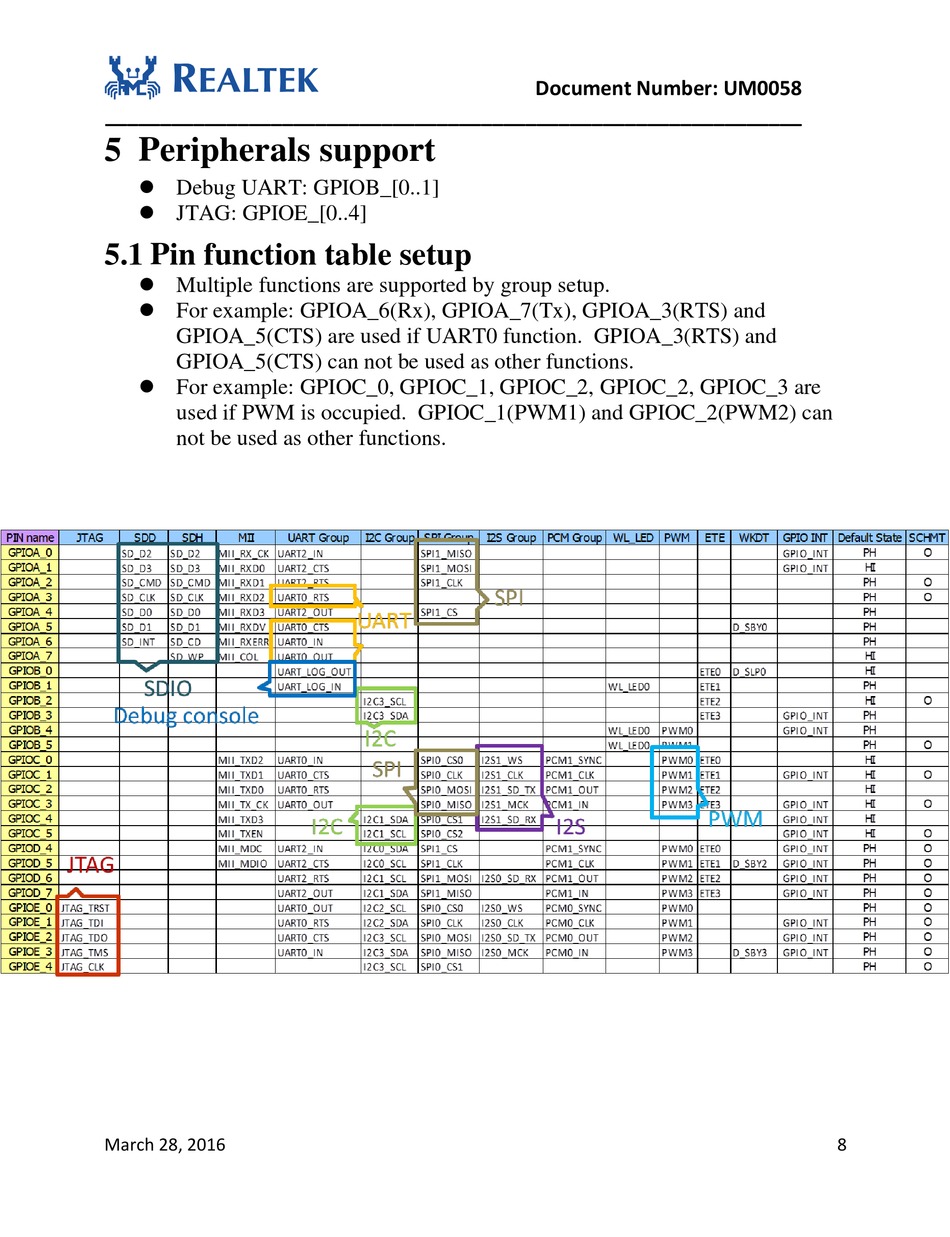

5.1 Pin function table setup
Multiple functions are supported by group setup.
For example: GPIOA_6(Rx), GPIOA_7(Tx), GPIOA_3(RTS) and
GPIOA_5(CTS) are used if UART0 function. GPIOA_3(RTS) and
GPIOA_5(CTS) can not be used as other functions.
For example: GPIOC_0, GPIOC_1, GPIOC_2, GPIOC_2, GPIOC_3 are
used if PWM is occupied. GPIOC_1(PWM1) and GPIOC_2(PWM2) can
not be used as other functions.
March 28, 2016
Document Number: UM0058
