Steps
b Remove the screws between evaporator and
moor press plate, loosen the clasps fixing
evaporator and bottom case, and then remove
the evaporator.
10. Remove axial flow blade and motor
a Remove the screws connecting the motor press
plate and bottom case, and then remove the
motor press plate.
b Take out the cross flow blade and motor,
remove the screws fixing the cross flow blade
and motor shaft, and then remove the motor.
c Take out the shaft cushion block, remove the
screws of stepping motor, and then remove the
stepping motor.

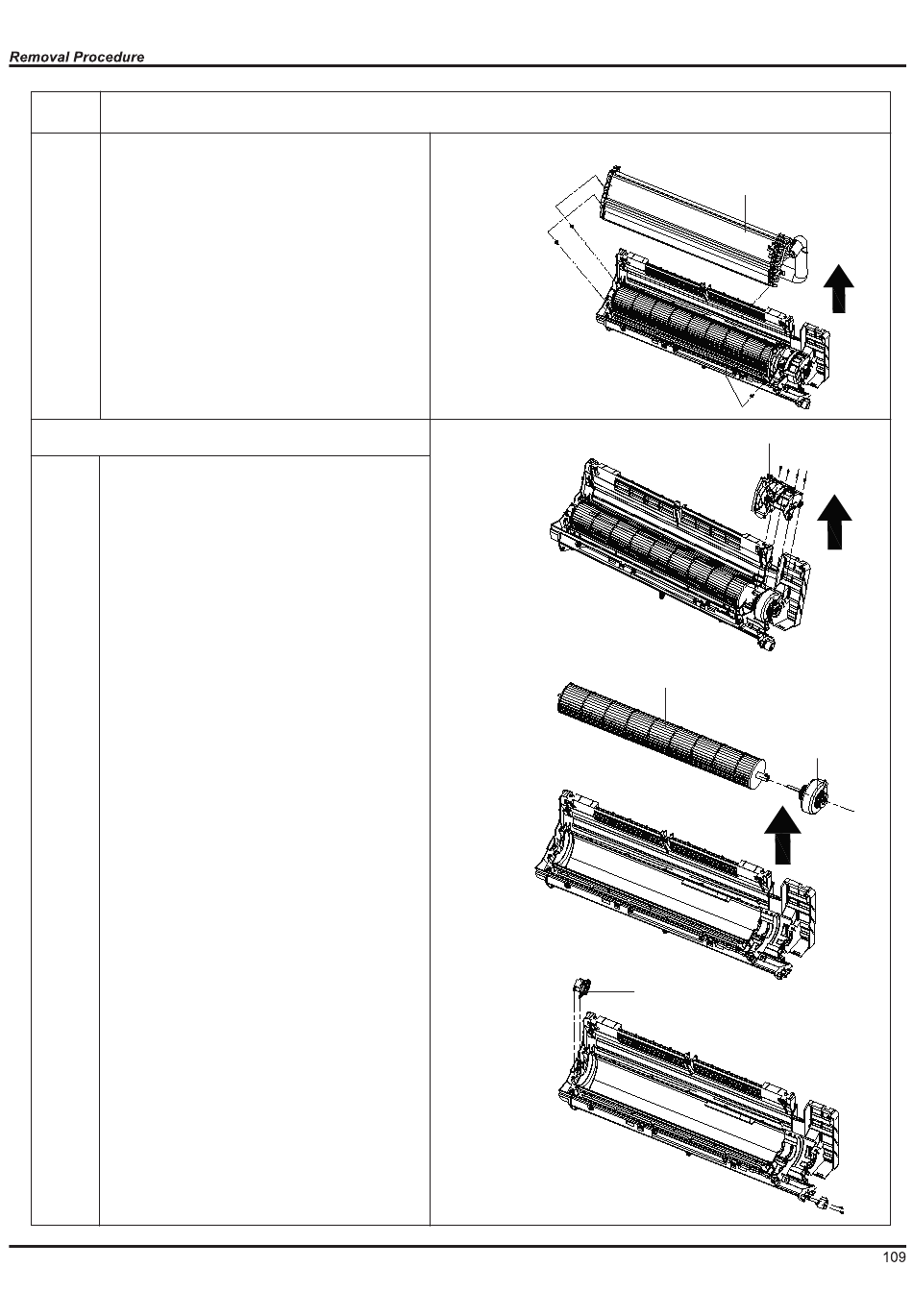

Procedure
Evaporator Assy
Motor Press Plate
Cross Flow Blade
O-Gasket sub-assy of Bearing
Fan Motor
