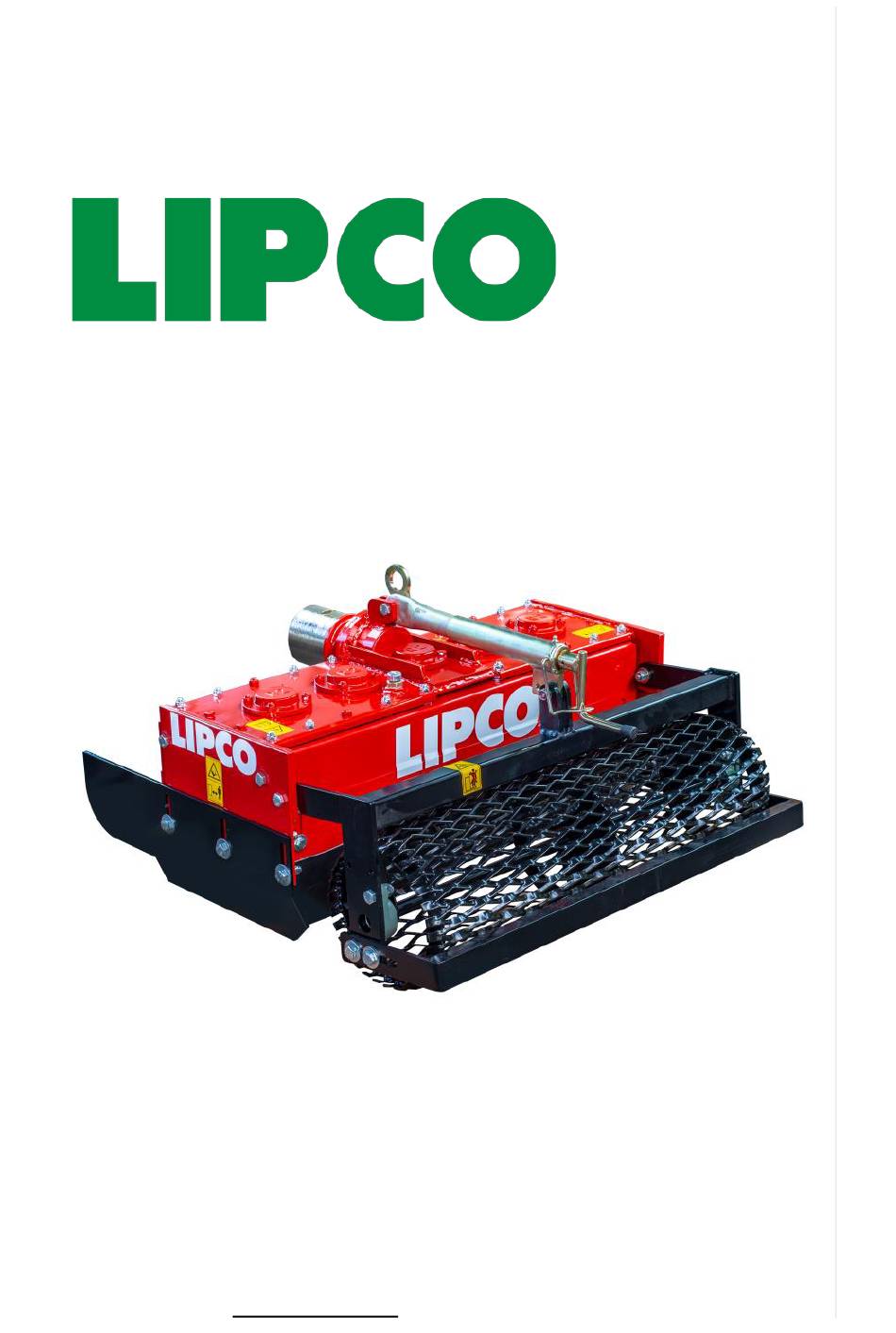

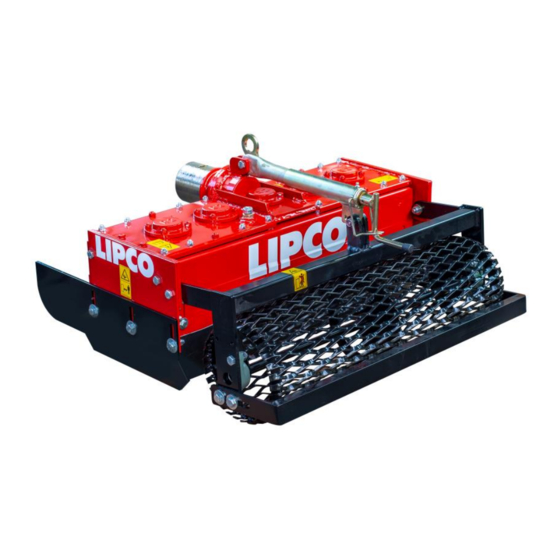

- Page 1 Translation of LIPCO Pathway weeder WP 60/75/90/100/125 original instructions LIPCO GmbH From serial no. on A13537 Am Fuchsgraben 5b D-77880 Sasbach Tel. +49 7841 6348-0 +49 7841 6348-300 E-mail mail@lipco.com www.lipco.com...
-
Page 2: Introduction
Instructions Pathway weeder WP 60/75/90/100/125 1. Introduction Dear Customer, We thank you for having chosen a LIPCO Pathway Weeder WP. We hope that you will be happy with your choice. In order that your LIPCO Pathway Weeder WP will serve you well for many years, we ask you to pay close attention to operating instructions which you will find in this manual. -
Page 3: Table Of Contents
Instructions Pathway weeder WP 60/75/90/100/125 2. Contents page Introduction .................. 2 Contents ..............3 Designated use ................4 Warning signs attached to the machine ........5 Safety regulations ................ 6 Accident prevention ..............7 Preparation .................. 9 Connection to the engine-driven machine ......... 10 Adjustment of the working depth .......... -
Page 4: Designated Use
Instructions Pathway weeder WP 60/75/90/100/125 3. Designated use LIPCO Pathway Weeder WP, when connected to single axle tractors / power mowers, is designed for weed removal from water- logged surfaces. Any other use for purposes other than those described here is considered contrary to the designated use. -
Page 5: Warning Signs Attached To The Machine
Instructions Pathway weeder WP 60/75/90/100/125 4. Warning signs attached to the machine Before starting operation, the personnel must have read the operating and safety instructions and must observe them. With the drive switched on and the tractor engine running, maintain sufficient distance to rotating tools. -
Page 6: Safety Regulations
Instructions Pathway weeder WP 60/75/90/100/125 5. Safety regulations The operation of machines containing rotating or moving tools always bears risks. Please always follow the safety regulations: • Before starting operation, the personnel must have read the operating and safety instructions and observe them. -
Page 7: Accident Prevention
Instructions Pathway weeder WP 60/75/90/100/125 6. Accident prevention Most accidents that occur during work, maintenance or transport of a machine are due to non-observance of the most elementary rules of accident prevention. It is, therefore, necessary that all licensed users (relatives,... - Page 8 Instructions Pathway weeder WP 60/75/90/100/125 • Never use the machine without the lateral guard strips, because they prevent entry between the motorized device and the attachment unit! • Never use the machine without the roller, since this part provides protection to the machine.
-
Page 9: Preparation
Instructions Pathway weeder WP 60/75/90/100/125 7. Preparation • Lubricate drive flange at least once a month and then rotate flange once to allow the grease to become distributed – make sure the machine is running smoothly. (Fig. 1) • Make sure that all screws are tightened and all elements are in... -
Page 10: Connection To The Engine-Driven Machine
Instructions Pathway weeder WP 60/75/90/100/125 8. Connection to the engine-driven machine Before attaching the machine flange (Fig. 3- Ref. A) corresponding to the type of engine-driven machine you have, it is recommended spreading grease on the outer diameter of the machine hub (Fig. 3, Ref. -
Page 11: Adjustment Of The Working Depth
Instructions Pathway weeder WP 60/75/90/100/125 9. Adjustment of the working depth The working depth is adjusted by means of the spindle. (Fig. 3) It is important for the operator to leave the machine resting on its roller while working. Fig. 3 10. - Page 12 Instructions Pathway weeder WP 60/75/90/100/125 Height adjustment of the edge cutter by means of manual spindle Fig. 6 Short safety sheet For any work without edge cutter, the standard safety sheet must be attached in addition to the safety bar.
-
Page 13: Technical Data
Instructions Pathway weeder WP 60/75/90/100/125 11. Technical data Type Weight Required Tools (pcs.) (kg) power (KW) WP 60 WP 75 WP 90 WP 100 WP 125 10,5 Main dimensions WP 60 WP 75 WP 90 WP 100 1000 WP 125... -
Page 14: Maintenance
Instructions Pathway weeder WP 60/75/90/100/125 12. Maintenance Steps to be carried out in order to maintain the machine in good working condition: • Grease the roller bearings! (Fig. 8) • Check the level of liquid grease in the gear casing via the corresponding plug (Fig. - Page 15 Instructions Pathway weeder WP 60/75/90/100/125 Filling amount liquid gear grease type GP00 Machine type Amount (kg) WP 60 WP 75 WP 90 WP 100 WP 125 • Check whether the tools have been firmly tightened, and retighten the screws, if necessary. Replace damaged screws or tools immediately! (See chapter “13.
-
Page 16: Replacement Of The Tools
Instructions Pathway weeder WP 60/75/90/100/125 13. Replacement of the tools When replacing the tools, make sure that the machine is secured against unintentional tilting! When working with the unit lifted, always ensure mechanical protection by means of adequate supporting elements. -
Page 17: After Use
Instructions Pathway weeder WP 60/75/90/100/125 14. After use If the LIPCO Pathway Weeder is to remain unused for a longer period, it is necessary to carry out the following steps: • Thoroughly wash and dry the LIPCO Pathway Weeder! •... -
Page 18: Warranty
Instructions Pathway weeder WP 60/75/90/100/125 15. Warranty For more details please refer to: https://www.lipco.com/en/downloads/ 18 - 20 120131-05-EN BA WP 60_75_90_100_125 / 29.06.2020... -
Page 19: Ec Declaration Of Conformity
: mail@lipco.com e-mail : mail@bauer-ib.com website : www.lipco.com website Denomination: LIPCO Pathway Weeder WP 60/75/90/100/125 Serial no: Year of manufacture: The manufacturer declares expressly, that the machinery fulfills all the relevant provisions of the • Directive 2006/42/EC To implement the safety and health requirements as stated in the CE... - Page 20 20 - 20 Design: mail@bauer-ib.com...
